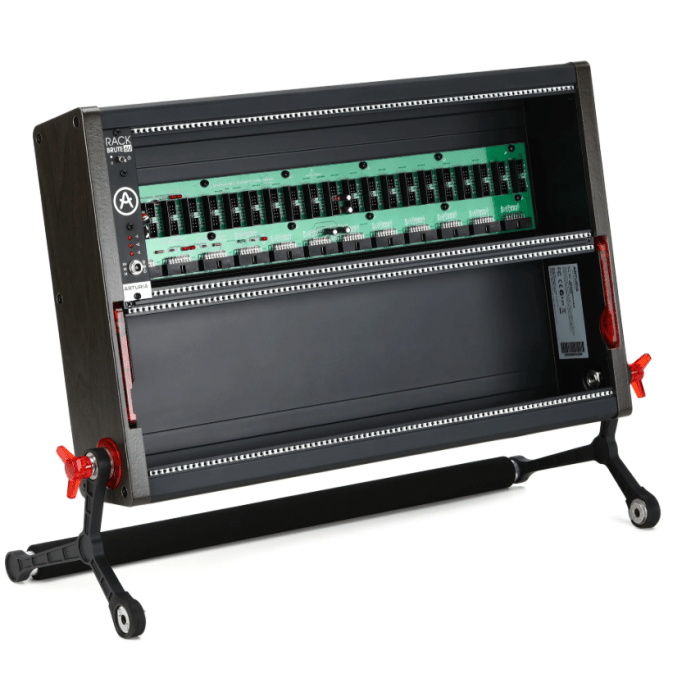

Arturia Rackbrute 6U Noir

The Arturia RackBrute is an ideal base for building your own modular synthesizer. This Eurorack case also makes a perfect combination with the MiniBrute 2 synthesizer. The RackBrute offers a sturdy housing for your Eurorack modules as well as a high-quality power supply. Insert modules and you are ready to go.

Do you use the RackBrute together with the MiniBrute 2? Then you can position the setup in multiple positions, depending on your workflow or studio layout. For both Eurorack users and MiniBrute enthusiasts, the Arturia RackBrute is a smart choice to expand your creative possibilities.

6U Eurorack case
With a width of 176HP for modules (171HP when the power supply is in place), you have plenty of room for an extensive Eurorack setup. The power supply is powerful and quiet thanks to built-in noise filters, contributing to optimal audio performance. You have 32 standard connection points for modules. The power supply delivers 1600mA at +12V, 1600mA at -12V and 900mA at +5V. Thanks to its solid construction and high-quality power supply, the Arturia RackBrute 6U is an excellent choice if you don't want to look for separate parts together, but want to set up a reliable Eurorack solution right away.

Arturia RackBrute features:

• eurorack case with 178HP total usable width
• power supply of 5HP provides 1600mA at +12V, 1600mA at -12V and 900mA at +5V
• connects seamlessly to MiniBrute 2 and MiniBrute 2S synthesizers
• rugged construction for long-term use
• multiple positioning options for flexible workflows

What does 176HP width mean with a Eurorack case?
In the world of modular synthesizers, the width of a Eurorack case is expressed in HP, which stands for horizontal pitch. This is a standard measure that indicates how much room you have to place modules. 1HP = 5.08 mm wide. So this 176HP case has an inside width of about 894 mm (176 × 5.08 mm).

Each Eurorack module also has a width in HP. For example, small modules are 4HP or 6HP wide, larger ones can be 20HP or more. So with a 176HP case, you can fit modules as long as their widths added together do not exceed 176HP. In the case of Arturia's RackBrute 6U, this means you have 176HP of space in one row. Because the case is 6HE high (so 2 rows of 3HE), you can fit modules on two levels - with a total of 352HP of space (2 × 176HP). If you use the power supply, it takes up 5HP, effectively leaving you with 171HP on that row.
