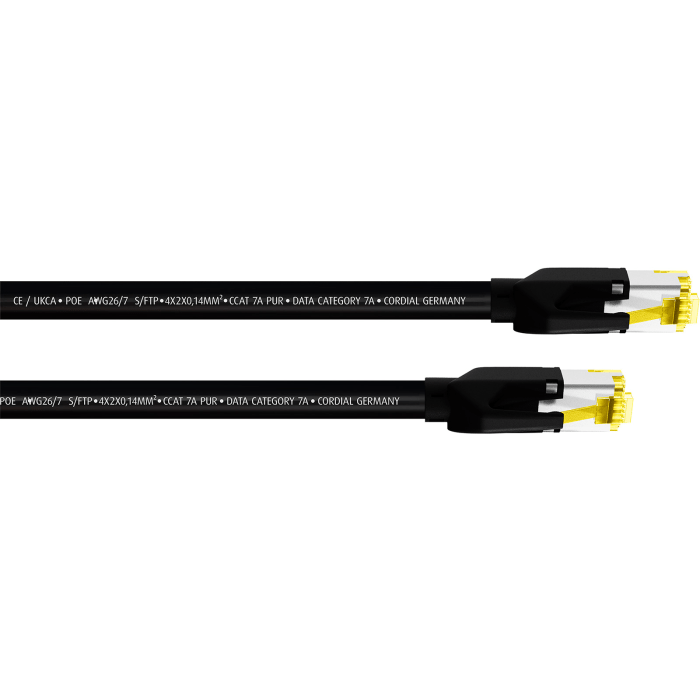

Cordial CSE 0,5 HH 7A PUR

The Cordial CSE 0.5 HH 7A PUR data patch cable is constructed with CCAT 7A PUR bulk cable and HIROSE RJ45 connectors. This network cable is designed for applications where high performance is required. Thanks to double S/FTP shielding, the cable supports CAT 7A data signals with a bandwidth of up to 1000 MHz (Gigabit Ethernet). The PUR outer jacket effectively protects against external influences and mechanical stress, making the cable suitable for mobile use both indoors and outdoors.

The cable is specially designed for audio networks (e.g. Dante), lighting control and EtherSound systems. The flexible inner conductor with AWG 26/7 makes it very suitable as patch cable and for device connections. This keeps the cable easy to handle, even with intensive use.

In addition, this cable supports Power over Ethernet according to IEEE 802.3af-2003 with a power of up to 15.4 watts, which significantly extends its area of application. High abrasion resistance and resistance to oil, microbes and chemicals ensure that the cable continues to perform reliably even under harsh conditions. Whether for stage use, mobile installations or outdoor applications, this cable delivers consistent performance.

Cordial CSE 0.5 HH 7A PUR features:

• length: 50 cm
• flexible, robust and retractable
• PUR jacket for mobile indoor and outdoor use
• CAT 7A data class up to 1000 MHz
• full S/FTP shielding
• AWG 26/7 with 7 cores per conductor
• Power over Ethernet up to 15.4 watts according to IEEE 802.3af-2003, maximum channel length 70 m
• flame retardant according to UL 1581 §1090, §1100 (FT2) and IEC 60332-1-2
• halogen-free according to EN 50267-2-1 and IEC 60754-1
• oil-resistant according to IEC 60811-2-1, ICEA S-82-552 and ASTM IRM 902
• sludge-proof according to NEK 606
• ozone-resistant according to EN 50396
• microbe resistant according to VDE 0282/10
• chemically resistant to, among others, diesel, kerosene and petroleum
• HIROSE RJ45 connectors
• transparent shrink sleeve for easy cable identification
• suitable for data, Ethernet, audio networks, lighting control and EtherSound

Cordial CSE 0.5 HH 7A PUR specifications:

• conductor area 0.14 mm²
• AWG 26/7
• conductor surface mount 7 x 0.14 mm²
• sheath material PUR
• insulation foam-skin PE, nominal 1.05 mm
• shielding S/FTP
• outer jacket PUR
• application data and ethernet
• outside diameter 6.4 mm ± 0.2 mm
• weight of bulk cable approx. 46 kg per km
• nominal conductor capacity < 44 pF/m
• conductor resistance 140 Ω per km
• PoE up to 15.4 watts according to IEEE 802.3af-2003, max. channel length 70 m
• maximum channel-link Class FA / CAT 7A (1000 MHz) 77 m
• maximum permanent-link Class FA / CAT 7A (1000 MHz) 65 m
• cable: type CCAT 7A PUR
• wire assignment RJ45 pinout T568B
• connector brand HIROSE, 2x HIROSE RJ45 TM31
