Cordial CSE 50 NN-SD 5e PUR

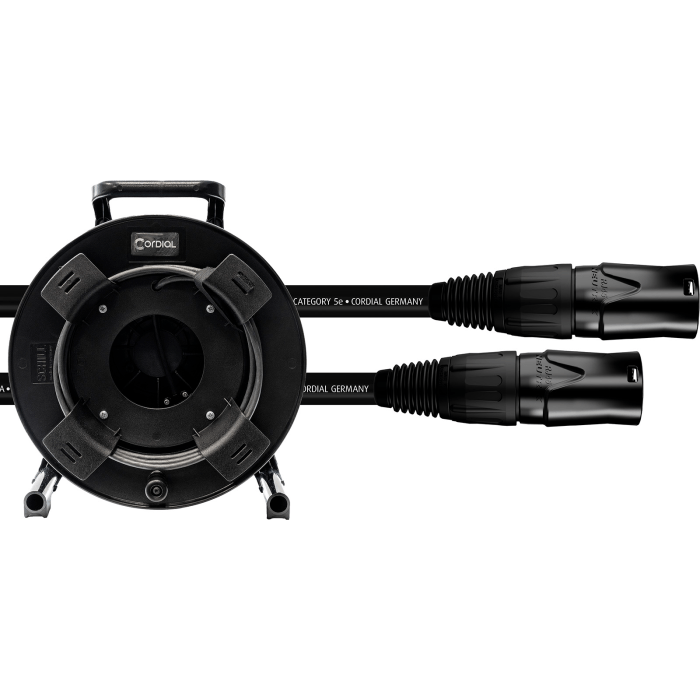

The Cordial CSE NN-SD 5e PUR cable reel is equipped with the CCAT 5e PUR network cable and features Hirose RJ45 connectors with Neutrik etherCON connector protection. The cable is mounted on a sturdy Schill GT310 cable reel and designed for professional use in mobile and demanding environments.

The CCAT 5e PUR cable is equipped with a flexible AWG 26/19 inner conductor and a special TPE-V stabilizer. This keeps the cable flexible and reliable, even during frequent coiling and unwinding. The construction makes this cable suitable for audio networks (including Dante), lighting control and EtherSound systems, both in fixed installations and mobile use.

In addition to its robust construction, this cable offers high flexibility and a small bending radius. This makes it suitable as patch cable, equipment connection cable and for applications on stage or in outdoor transmissions. The PUR outer jacket protects against mechanical stress and external influences, allowing the cable to be used indoors and outdoors without problems. In addition, the cable supports Power over Ethernet according to IEEE 802.3af-2003 with up to 15.4 watts of power.

Cordial CSE 50 NN-SD 5e PUR features:

• highly flexible, robust and suitable for coiling
• PUR jacket for mobile indoor and outdoor applications
• data class CAT 5e (100 MHz)
• total shielding S/UTP
• AWG 26/19 with 19 cores
• PoE support up to 15.4 watts according to IEEE 802.3af-2003
• Neutrik etherCON connector protection with Hirose RJ45 connectors
• Schill cable reel
• transparent shrink tubing for easy cable identification
• connectors: 1x NeutrikNE 8 MX-B-1 + HIROSE RJ45 TM31 + 1x Neutrik NE 8 MX-B-1 + Hirose RJ45 TM31

Cordial CSE 50 NN-SD 5e PUR specifications:

• conductor cross section: 0.15 mm²
• AWG 26/19
• conductor structure: 19 x 0,15 mm²
• shielding S/UTP
• outer jacket PUR
• outer diameter 6.5 mm ± 0.2 mm
• conductor capacity: nominal < 50 pF per meter
• conductor resistance: 140 Ohms per km
