Cordial CSE 50 NN-SD 7A PUR

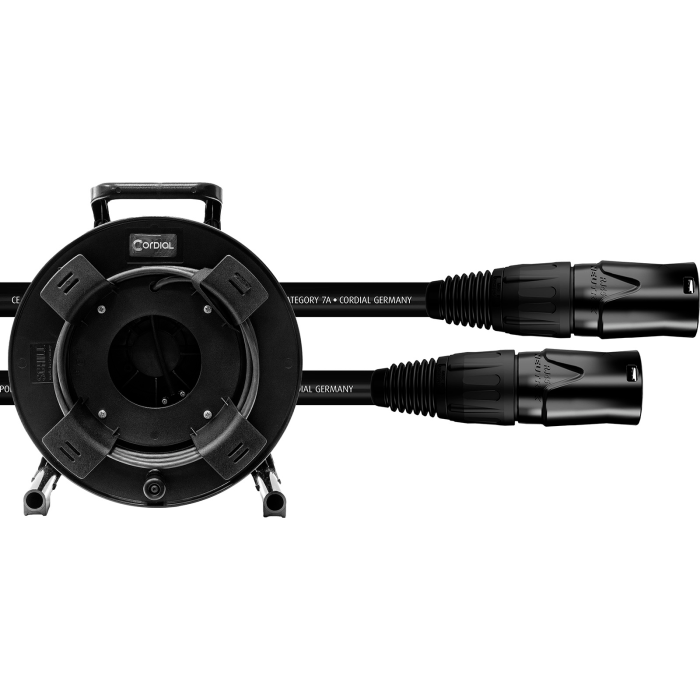

The Cordial CSE NN 7A PUR cable reel is built around the CCAT 7A PUR network cable and features Hirose RJ45 connectors with Neutrik etherCON connector protection. The cable is mounted on an extremely robust Schill cable reel GT310 and is designed for professional use in demanding environments.

The CCAT 7A PUR network cable is intended for high-performance network infrastructures and supports data class CAT 7A with a bandwidth of up to 1000 MHz (Gigabit Ethernet). Thanks to the double shielding S/FTP, signal transmission remains stable even with longer cable lengths and in environments with many sources of interference. The PUR outer jacket effectively protects the cable from mechanical stress and external influences, making it suitable for both mobile indoor and outdoor applications.

This cable is specifically designed for audio networks (including Dante), lighting control and EtherSound systems. The flexible inner conductor (AWG 26/7) makes the cable suitable for patch applications and equipment connections. In addition, the cable supports Power over Ethernet according to IEEE 802.3af-2003 with up to 15.4 watts of power, which significantly extends its application range.

High abrasion resistance and resistance to oil, microbes and various chemicals ensure that this cable continues to function reliably even under harsh conditions. Whether in mobile use, stage applications or outdoor transmissions, this cable delivers stable performance and long life.

Cordial CSE 50 NN-SD 7A PUR features:

• flexible, robust and suitable for coiling
• PUR jacket for mobile indoor and outdoor applications
• data class CAT 7A (1000 MHz)
• total shielding S/FTP
• AWG 26/7 with 7 cores
• PoE support up to 15.4 watts according to IEEE 802.3af-2003
• maximum PoE channel length 70 meters
• good chemical resistance (diesel, kerosene, petroleum)
• Hirose RJ45 connectors with NEUTRIK etherCON connector protection
• Schill cable reel
• transparent shrink tubing for easy cable identification

Cordial CSE 50 NN-SD 7A PUR specifications:

• connectors: 1x Neutrik NE 8 MX-B-1 + HIROSE RJ45 TM31 + 1x Neutrik NE 8 MX-B-1 + HIROSE RJ45 TM31
• conductor cross section 0.14 mm²
• AWG 26/7
• structure conductor: 7 x 0,14 mm²
• insulation conductor: Foam-Skin PE nominal 1,05 mm
• shielding: S/FTP
• outer jacket: PUR
• outer diameter: 6.4 mm ± 0.2 mm
• conductor capacity: nominal < 44 pF per meter
• conductor resistance: 140 ohms per km
• PoE PoE (15.4W) according to IEEE 802.3af-2003, maximum channel length 70 m
