Dunlop EP101

When the Echoplex EP-3 was introduced, guitarists were immediately sold. Not just because of the iconic tape echo effect, but mostly because of the unique timbre that the built-in preamp added to their sound. Soon the EP-3 became a fixture in the rigs of legendary guitarists such as Jimmy Page, Eddie Van Halen and Eric Johnson. Its distinctive preamp gave their tone extra warmth, definition and dynamics.

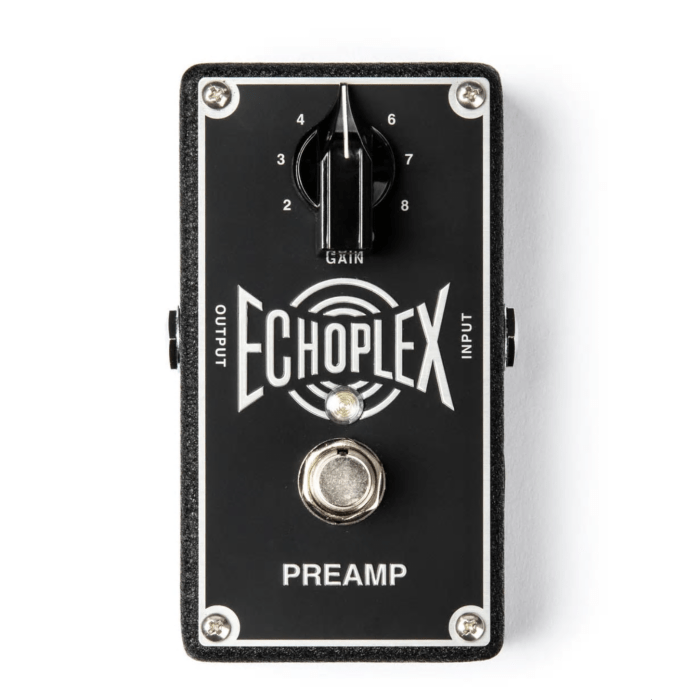

With the Dunlop EP101 Echoplex Preamp, you bring exactly that legendary sound to your pedalboard. The EP101 accurately reproduces the preamp section of the original EP-3, including a Field Effect Transistor (FET) and the same signal path as the vintage original. The Gain control allows you to boost your signal up to +11 dB. Higher settings also create a subtle asymmetrical clipping that provides natural, musical overdrive.

[[READMORE]]

The Echoplex Preamp runs on a standard 9-volt power supply and features smart power control that ensures constant headroom even when using a battery. Thanks to its robust Phase 90-sized housing, authentic EP-3-style knob, true bypass switching and a bright status LED, this pedal is built for intensive use on stage. So you can enjoy the famous EP-3 sound without having to take your precious vintage copy on the road.

Features:

• Maximum Gain: +11 dBV
• Input Impedance: 730 kΩ
• Output Impedance: 55 kΩ (with the Gain knob in the center position)
• Max Input Level: -5 dBV
• Max Output Level: +5.5 dBV
• Noise Threshold (Noise Floor): -95 dBV (A-weighted, at maximum Gain)
• Current Consumption: 12 mA
• Supply Voltage: 9 Volt DC
• Power supply: 9V battery or optional adapter
• Bypass: True Bypass
• Circuit design: Full analog signal path equipped with Field-Effect Transistors (FET)
• Dimensions: Approx. 60 x 32 x 111 mm (similar to standard MXR Phase 90 housing)
• Inputs & Outputs: 1x 1/4" (6.35 mm) jack input, 1x 1/4" jack output
• Controls: 1x replica EP-3 volume knob (Gain) and status LED
