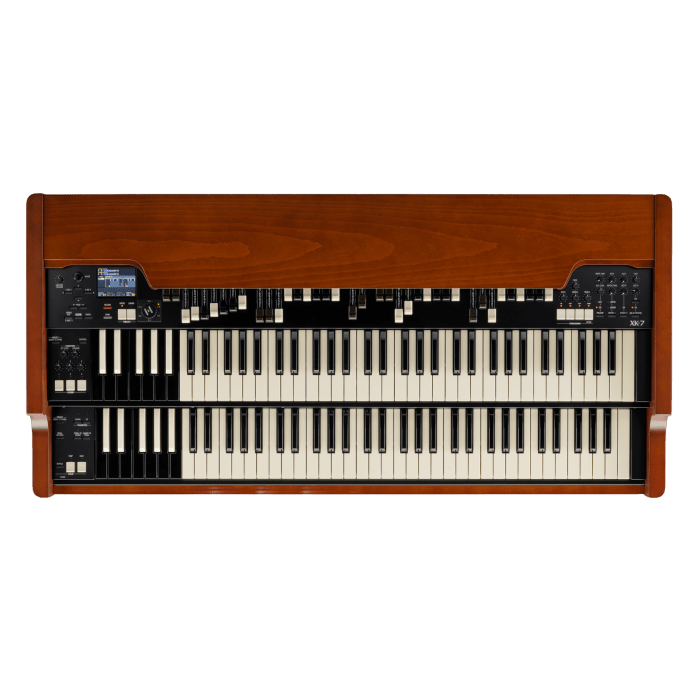

Hammond XK-7D

The Hammond XK-7D is the ultimate digital Hammond for organists seeking the full B-3 concept in a modern version. With two manuals, a very natural playing response and deeply modeled tone structure, this organ brings the classic Hammond experience to the stage and studio. In addition to authentic tone wheel sounds, the XK-7D also offers transistor combo organs from Italy, Great Britain and Japan, complemented by extensive classical and theater pipe organs. This makes this instrument a convincing heir to the legendary Hammond tradition.

Equipped with the latest Hammond technology
The XK-7D is equipped with Hammond's newly developed 6 Contacts Long (6L) keyboard, implemented as a dual-manual. Each keyboard uses six mechanical contact points per key and has the same physical dimensions as classic Hammond keyboards. This provides a direct touch and playing feel that closely resembles a vintage B-3. The Virtual Electro Mechanical (VEM) sound engine is the heart of the instrument and works in conjunction with four sets of Harmonic Drawbars, Chorus-Vibrato, Touch-Response Percussion and an updated digital Leslie rotor simulation.

Authentic Hammond sound in detail
The original Hammond organs were known for their characterful imperfections, which in fact later became an essential part of musical expression. In the XK-7D, these characteristics are reproduced in detail. The entire tone generation chain is digitally modeled, including tone wheels, matching transformer, preamp and Leslie. The result is a sound that is rich, vibrant and recognizably Hammond, with all the nuances to match.

[[READMORE]]

Complete control in real time
Thanks to its extensive drawbar sections and deeply adjustable parameters, the XK-7D can be completely tuned to your own taste. Subtle pitch deviations, volume fluctuations and mechanical noises are adjustable, as are tube character and overdrive via the modeled preamp. Additional Key Click and Leakage controls allow very close approximation of the behavior of classic Hammond organs.

Precise modeling of the signal chain
Sound generation starts at 108 digital tone wheels, including extra-high and pedal tone wheels. From there, the signal runs through the matching transformer and preamp to the digital Leslie or through the 11-pin jack to an external Leslie cabinet. The digital Leslie simulates not only the rotor effect, but also airflow and spatial distribution, providing a convincing three-dimensional sound.

Hammond XK-7D features:

• dual-manual digital organ
• 6 Contacts Long (6L) keyboards with classic Hammond dimensions
• six mechanical contacts per key for authentic playing techniques such as glissando and fast rehearsals
• Virtual Electro Mechanical (VEM) sound engine
• fully modeled electromechanical signal chain
• 108 digital tone wheels including extra-high and pedal tone wheels
• matching transformer, preamp and digital Leslie
• 11-pin connection for external Leslie box
• extensive tone wheel parameters for in-depth sound editing
• XPK pedal set with three mechanical contacts for precise response
• separate Key Click and Leakage controls with fixed assignment on rotary knobs
• preamp modeling based on vintage Hammond AO-28 and AO-29 preamps
• separate bass output, switchable to pedal output
• lowpass filter on full-range output for use with subwoofer
• highly accurate digital Leslie with gain control for overdrive
• large color display for easy operation
• extensive transistor organ section with Italian Farf, British Vx and Japanese Ace sounds
• extensive pipe organ section with classical and theater sounds, 40 virtual ranks
• DSP effects with separate reverb and delay controls on the control panel

Hammond XK-7D specifications:

• sound generator: MTW2 (Modelled Tone Wheel 2)
• polyphony: 61 voices (manual), 25 voices (pedal)
• keyboards: 73 keys per manual (61 + 12 preset keys), long waterfall keys
• virtual multi contact (5 + 1 contacts)
• harmonic drawbars: upper: 2 × 9 pitches, lower: 2 × 9 pitches, pedal: 2 pitches
• organ types: TW, Mellow, Vx, Farf, Ace, Pipe
• touch response percussion: percussion on, third harmonic, fast decay, volume soft
• effects: vibrato & chorus, multi effect 1, multi effect 2, preamp, leslie, equalizer, delay/reverb
• master effect: master equalizer
• keymap internal zones: transpose, octave, split, pedal to lower, lower to pedal
• keymap external zones: upper 3 zones, lower 2 zones, pedal 1 zone
• patch memory favorite: 10 banks × 10 numbers
• patch memory factory 100, user 100, adjust preset A/B
• storage: USB memory
• display: 320 × 240 pixels
• dimensions: 118.6 × 56.6 × 19.2 cm
• weight: 31.0 kg

connections:

• MIDI: pedal in, other in, out
• USB: to host
• H-Bus: to keyboard/pedal
• audio: line out L/mono, R, headphones, rotary out, bass out
• Leslie: 11-pin (1 or 3 channel)
• other: leslie switch, footswitch 1, footswitch 2, expression pedal
