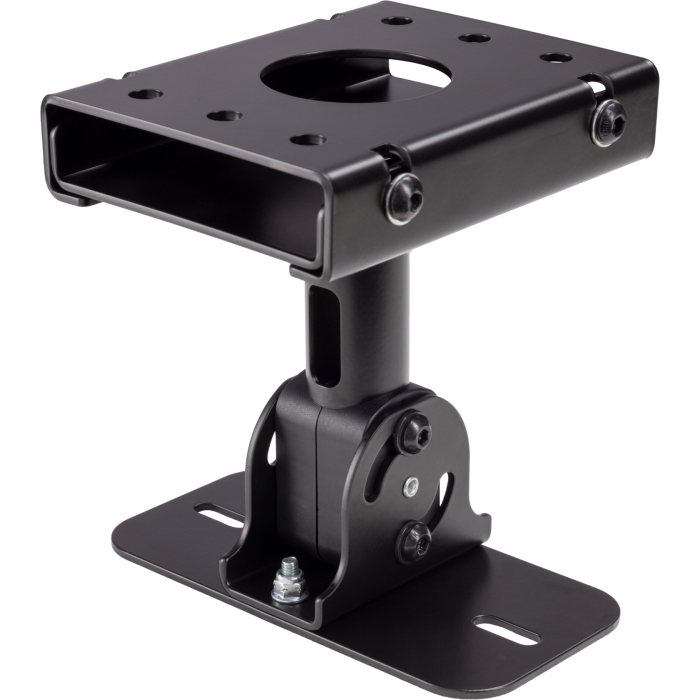

K&M 19420

The K&M 19420 Speaker ceiling mount is a professional ceiling bracket for hanging speakers safely and neatly. Designed for fixed ceiling mounting, this bracket allows speakers to be positioned exactly in the right direction. Thanks to the thoughtful hook system with screw locking, mounting is easy and stable, even for permanent use in installations such as theaters, churches, hospitality or fixed AV setups.

The bracket is directly compatible with several Yamaha speakers, including the DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I and HS7I. For other Yamaha models, mounting is possible in combination with the original Yamaha U-bracket. This applies to the DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12 and CHR10.

The K&M 19420 offers stepless adjustment, allowing for precise speaker adjustment. The tilt angle is adjustable from 0° to 75°, and the bracket swivels up to 90°. This allows the sound to be optimally directed to the audience or listening area. The ceiling clearance of 180 mm provides ample room for cable routing and a sleek finish.

The construction is made entirely of steel and finished in black, providing a neutral and professional look. With a maximum load capacity of 25 kg, this ceiling mount is suitable for a variety of speakers within the compatibility range. The ceiling mounting plate measures 160 x 126 mm and the speaker support plate 180 x 90 mm. The mounting holes accommodate multiple drilling patterns, namely 60 to 70 mm and 115 to 150 mm.

K&M 19420 features:

• ceiling bracket for speakers
• suitable for fixed ceiling mounting
• infinitely adjustable positioning
• tilt angle adjustable from 0° to 75°
• rotatable up to 90°
• direct mounting on DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I and HS7I
• mounting possible with Yamaha U-bracket for DZR, CZR, DXR, DHR and CHR models
• maximum load: 25 kg
• material: steel
• color: black
• ceiling distance: 180 mm
• weight: 2,2 kg
