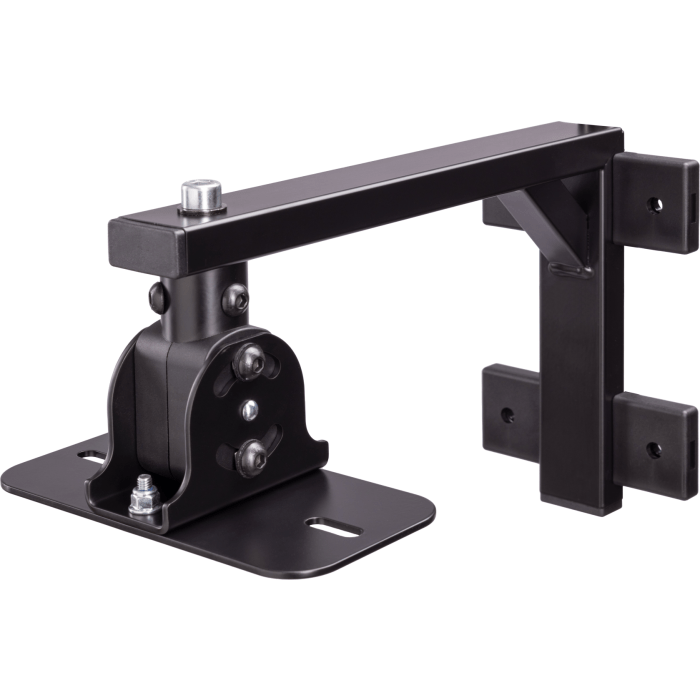

K&M 19430

This speaker wall bracket is designed for securely and neatly mounting speakers to the wall. The bracket is suitable for various Yamaha speakers and makes it easy to accurately adjust both the position and angle of the speaker. Thanks to the practical hook-in system and screw locking system, mounting is quick and convenient.

The construction is made entirely of steel and suitable for a maximum load of 25 kg. The speaker can be infinitely adjusted both in tilt and rotation, making this wall bracket suitable for fixed installations in studios, practice rooms, hospitality, theaters and other professional applications.

Compatibility:

• direct fit for: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I
• requires Yamaha U-bracket for: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10

K&M 19430 features:

• suitable for direct mounting on various Yamaha speakers
• flexible positioning through tilt and swivel function
• solid steel construction for fixed installations
• adjustability: infinitely adjustable
• tilt angle: -45° to 45
• carrier plate: 180 x 90 mm
• swivelling range: 360
• distance from wall: 271 mm
• fixing: wall mounting
• center-to-center distance mounting holes: 60 - 70 mm or 115 - 150 mm
• material: steel
• maximum load: 25 kg
• color: black
• weight: 2,3 kg
• EAN: 4016842122936
