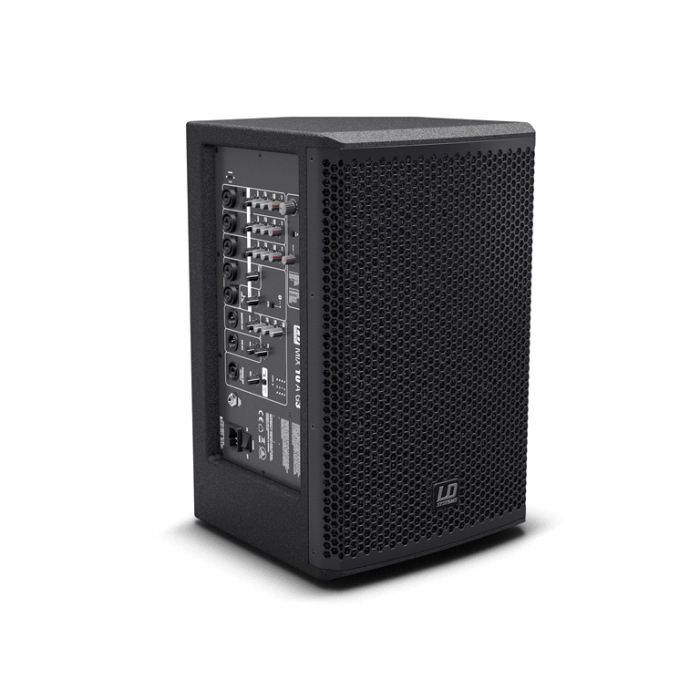

LD Systems Mix 10 A G3

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts of peak power. The compact bass-reflex speaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion for crystal-clear sound with punch and detail.

Suitable for a wide range of input sources, including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer offers 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 features a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A SpeakON output allows you to power the passive LD MIX 10 G3 to easily create a stereo system.

The sturdy enclosure is made of sturdy plywood with a 50° monitor angle and a Dual-Tilt pole mount for 0° or 5° mounting angles. On its own or combined with the passive unit, the LD MIX 10 A G3 offers stunning performance and versatility in a lightweight, easily portable package.

Specifications:

• Product type: PA speaker

• Type: active

• Dimensions woofer: 10 "

• Woofer dimensions (mm): 254 mm

• Woofer brand: Custom made

• Tweeter dimensions: 1 "

• Tweeter dimensions (mm): 25.4 mm

• Tweeter brand: Celestion

• Dispersion (H x V): 80 x 70 °

• Frequency Response: 65 - 20,000

• Amplifier: Class D

• Amplifier power (RMS): 2 x 200 W

• Amplifier power (peak): 2 x 400 W

• Max. SPL: 124 dB

• Protection circuits: limiter, overcurrent, overload, short circuit, thermal overload

  Mixer
• Channels: 7

• Microphone inputs: 3

• Microphone inputs: 6.3 mm jack, XLR

• Controls for microphone inputs: + 20 dB switchable, DFX Send, EQ Hi, EQ Low, Hi-Z switch (channel 1 only),
• level

• Line inputs: 2

• Line input jacks: 2 x XLR, 3.5mm TRS

• Hi-Z inputs: 1

• Hi-Z input jacks: 6.3 mm jack

• Input impedance Hi-Z input terminals: 1000 kOhm

• Monitor line outputs: 2

• Connector type Monitor Line Output: XLR

• Monitor Line Output Controls: Monitor Volume, Sub Level

• Max. output level Monitor line output: 17 dBu

• Record outputs: 1

• Main Output Power (at 4 ohms): 200 W


• Cabinet construction: Bass reflex

• Cabinet material: 16 mm plywood

• Cabinet surface: Textured paint

• Cabinet color: Black

• Width: 315 mm

• Height: 489 mm

• Depth: 307 mm

• Weight: 12.3 kg

• Other features: Bluetooth, Double tilt lens (0°/5°), Ergonomic handle
