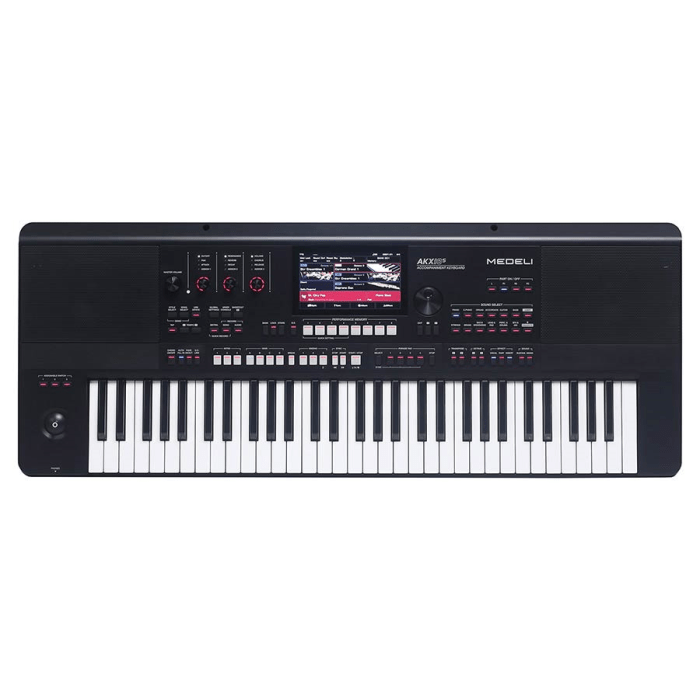

Medeli AKX10S

The Medeli AKX10S is the flagship in the Arranger Pro Series and the direct successor to the AKX10. Already popular, the AKX10 is now the older model. The AKX10S takes everything to the next level. With the updated PTK III keyboard and a powerful sound engine, you get more playing feel and more expression. The 7-inch touchscreen makes operation fast and logical. The extensive DSP library and Creative Expression sounds give you more depth and realism.

The built-in 4-way speaker system of 2 x 15W and 2 x 25W lets you hear every detail clearly. The illuminated breathing light and joystick give you additional visual and real-time control. You get Bluetooth MIDI and Audio, recording functions, style creation and many options for live playing. The memory is expandable and the effects are extensive. As a result, this workstation works well on stage, in the studio and at home.

Specifications:

• 61 touch-sensitive PTK III keys
• 7 inch touch screen with 7 languages
• 256 voices polyphony
• 1133 presets, 256 GM2, 500 user sounds
• 300 preset styles, 1000 user styles
• 3 demo songs
• Music library: 80 presets + 1000 albums, 50 presets + 512 songs
• Amplifier: 2 x 15W + 2 x 25W
• Speakers: 2 x 3 cm + 2 x 12 cm
• Dimensions: 1007 x 392 x 130 mm
• Weight: 9.6 kg
• Power supply: DC 15V

Keyboard and controls:

• Keyboard layers: L, R1, R2, R3
• Style controls: Start/Stop, Sync, Intro/Ending 1-3, Main A-D, Fill-ins, Break, Auto Fill In, Fade In/Out, Q.S. Link
• Style Creator
• 39 chord types
• Reverb: 45 types + 30 users
• Chorus: 76 types + 30 users
• IFX: 48 presets + 30 users
• Microphone DSP: 47 effects, 3 vocoders, 3 harmonizers
• Master EQ: 5 presets + 30 users
• Mixer
• Sequencer: up to 500 songs, 16 tracks
• Performance memory: 8 x 200 banks, Q.S./O.T.S. locking
• Performance functions: arpeggiator, harmony, slicer

Audio and recording:

• Audio playback: MP3, WAV, AAC
• Vocal remover, tempo and tone adjustable
• Audio recording: MP3, WAV 44.1Hz / 16 bit

Controls and connections:

• Assignable controls: 2 pedals, 3 rotary knobs, 3 switches, joystick
• Pitchbend and modulation
• Transpose, octave, tuning, scale (9 presets + 30 users)
• Metronome
• Tempo: 30-280 BPM + Tap Tempo
• Phrase pad: 4 x 180 banks + max. 500 users
• Internal memory: 768 MB sample expansion

Connections:

• Bluetooth MIDI & Audio
• USB-A (device)
• USB-B (MIDI & Audio)
• MIDI in/out
• Headphones 6.3 mm
• Line-in 2 x mono 6.3 mm
• Line-out L/L+R and R 6.3 mm
• Microphone input 6.3 mm
• Sustain/volume pedal
