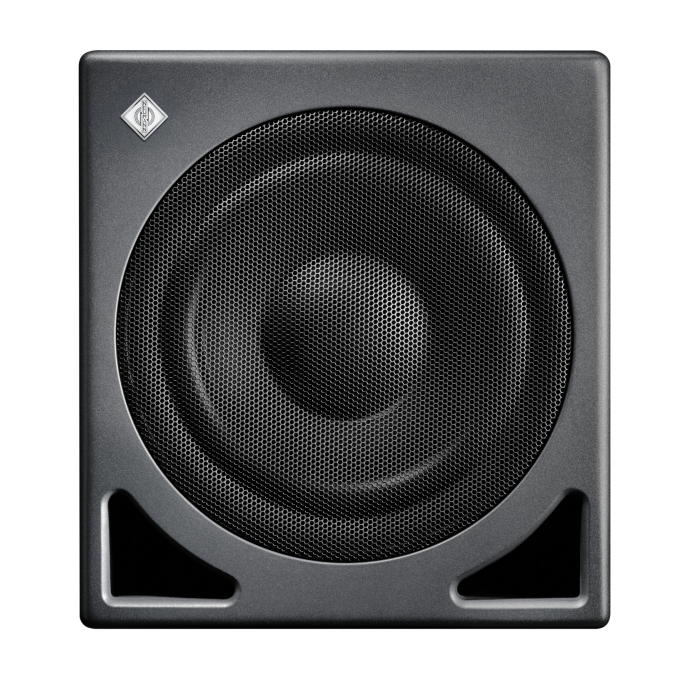

Neumann KH 805 II

Developed for professional monitoring, the Neumann KH 805 II delivers precise and analytical low-end reproduction. This active subwoofer is equipped with a long-throw 10-inch driver, powerful amplifier and a compact, sturdy enclosure that can easily be optimally positioned thanks to its DSP features. The Low Resonance Integral Molding enclosure prevents unwanted resonances and distortion. The specially designed driver combined with the large reflex ports ensures minimal compression and an extremely fast transient response. This makes the KH 805 II ideal for use in medium-sized control rooms, where precision and deep bass response are essential.

With its range of up to 18 Hz, the KH 805 II effortlessly delivers the depth needed for modern productions and perfectly complements near- and midfield monitors such as the Neumann KH 150 and KH 310. A reliable choice for producers and engineers who want maximum control over their mix.

Dynamics and deep low
Modern music productions place high demands on a monitoring system, especially when it comes to dynamic range and bass reproduction. A subwoofer is indispensable here to reproduce this material with maximum precision and control. The Neumann KH 805 II is designed for high headroom and maximum transparency. This subwoofer effortlessly delivers low frequencies down to 18 Hz and forms a perfect combination with mid-sized studio monitors such as the Neumann KH 150 and KH 310. This gives you a reliable and complete picture of your mix, exactly as it was intended.

Neumann: a leader in professional microphones and studio monitors
Since its founding in 1928 by Georg Neumann, the brand has established an unparalleled reputation in the world of studio technology. Neumann brought the first mass-produced condenser microphone to the market and the famous diamond logo has guaranteed quality and reliability ever since. Every microphone and monitor that bears the Neumann name is a testament to this rich tradition. It is not only a technical tool, but also a signal to your environment: this is professional equipment. For studios with client visits, appearance counts. A Neumann in the recording or control room makes an immediate impression and radiates craftsmanship. These icons are recognized worldwide as the standard for high-quality studio equipment.

Neumann KH 805 II features:

• DSP-controlled subwoofer for stereo monitoring and surround applications
• 10-inch long-throw LF driver
• frequency range: 16 - 310 Hz
• nearly twice the output of the KH 750 DSP
• high SPL with minimal distortion
• optimally suited in combination with Neumann KH main monitors
• flexible bass management with perfect integration into stereo systems
• signal hub for surround and immersive setups up to 7.1.4
• DSP control for maximum clarity and consistency
• Room correction via optional MA 1 monitor alignment
• Built-in room correction for analogue KH monitors
• configurable routings: stereo 80 Hz bass management, external bass management, LFE playback up to 120 Hz, LFE full range
• flexible analog and digital connection options
• bass reflex principle with front ports
• metal grille for woofer protection
• supplied with power cord and Quick Start guide

Neumann KH 805 II specifications:

• driver: 10 inch long-throw bass driver
• amplifier power: 222 watts
• maximum sound pressure level: 110 dB SPL
• self-noise: < 20 dB(A) SPL at 0.1 m distance
• frequency range: 16 - 310 Hz (+/- 3 dB)
• analogue inputs: 2 x balanced XLR
• analog outputs: balanced XLR (daisy chain possible for sub arrays)
• digital input: AES3 / S/PDIF BNC 75 Ohm, up to 192 kHz / 24-bit
• digital output: AES3 / S/PDIF BNC 75 Ohm
• network: RJ45, control via standard IP and MA 1 software
• universal power supply (100-240 V) and Auto Standby function (disable)
• dimensions (h x w x d): 368 x 330 x 645 mm
• weight: 25,5 kg
