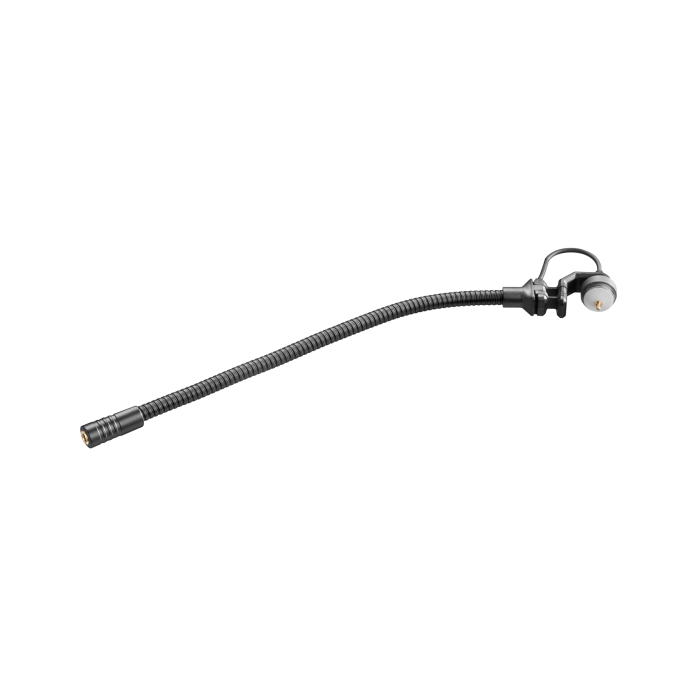

Neumann SH 150

The Neumann SH 150 is a separate gooseneck for the MCM 114 microphone system. The KK 13, 14, or 15 capsule (sold separately) is mounted on this gooseneck using a removable screw connection. The built-in elastic suspension bracket is made of advanced plastic for excellent absorption of background noise.

The SH 150 is internally wired with a cable featuring a proprietary connector at one end for connecting the KK capsule and a connector at the other end for connecting one of the MCM output cables (sold separately). An instrument-specific MCM clip (sold separately) is required to mount the SH 150 on your instrument. The included KC 1 cable clip can be used to neatly route the cable away from the instrument while preventing unwanted cable noise.

This gooseneck is 15 cm long and features a threaded connection onto which you can screw a separately available KK capsule.

Required instrument-specific mounts / clips
MC 1: Clip for mounting the gooseneck on the body of a violin, viola, mandolin, and similar instruments.
MC 2: Clip for mounting the gooseneck on the strings of a cello beneath the bridge.
MC 3: Clip for mounting the gooseneck on the strings of a double bass beneath the bridge.
MC 4: Clip for mounting the gooseneck to the rib or body of a double bass or similar instrument.
MC 5: Universal strap clip for mounting the gooseneck to an oboe, clarinet, recorder, bassoon, flute, or harp.
MC 6: Universal clamp for mounting the gooseneck to the bell of a trumpet, trombone, saxophone, French horn, or to a percussion instrument or stand.
MC 7: Clip for mounting the gooseneck to the rim of a snare drum, tom, floor tom, or timpani.
MC 8: Magnetic clip for mounting the gooseneck to an upright or grand piano.
MC 9: Clip for attaching the gooseneck to the body of a guitar, ukulele, dobro, acoustic bass, or cello.

Flexible connectivity for wired and wireless applications
Neumann offers four cables to connect the gooseneck’s output to either the MCM 100 XLR power amplifier module or to popular wireless transmitters, including Sennheiser, Lectrosonics, Shure, Zaxcom, Wisycom, and others.
AC 31 cable with locking mechanism, 3.5mm TRS connector for wireless transmitter and MCM 100 XLR power amplifier module
AC 32 cable with LEMO 3-pin connector for wireless transmitter
AC 33 cable with Microdot connector for wireless transmitter
AC 34 cable with 4-pin mini-XLR connector for wireless transmitter

• Neumann SH 150 gooseneck for MCM 114 microphone
• Connection side 1: KK connector
• Connection on side 2: MCM connector, for AC cable
• Requires MC instrument clip
• Includes KC 1 cable clip
• Length: 15 cm (6 inches)
• Neumann order no.: 008693
