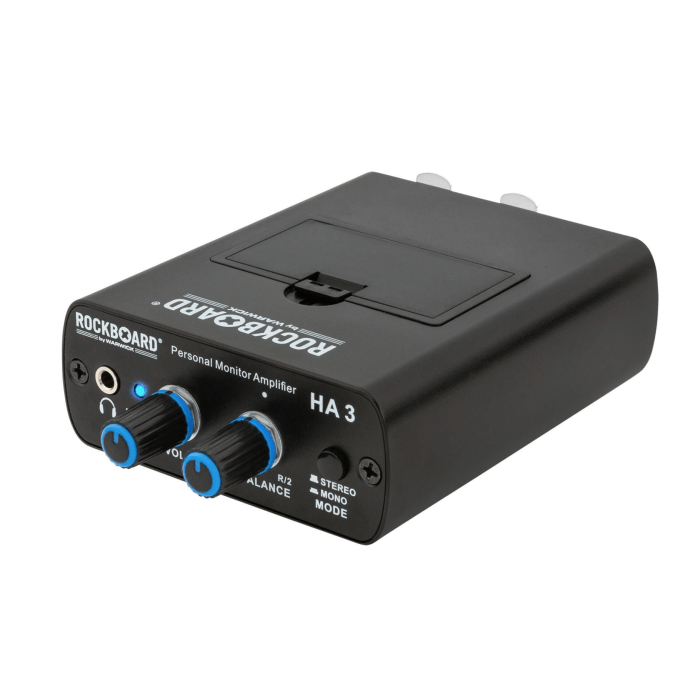

RockBoard HA-3

The RockBoard HA 3 in-ear monitor amplifier is a wired, two-channel, high-quality monitoring system for musicians. This lightweight device is designed for artists in a relatively fixed position on stage. It provides professional sound quality and a signal with high volume and high fidelity, allowing users to clearly hear a stereo or two separate monitor signals on any stage or in any studio.

It can be used with a belt clip or mounted on a microphone stand using the integrated screw adapter. The HA 3 is battery operated and has a status LED that changes color to indicate remaining battery life. Changing batteries is very easy and quick thanks to the easily accessible battery compartment.

If the HA3 is mounted on a microphone stand, it can also be powered by connecting a regular pedal power supply (not included) that provides (mid-negative) 9 VDC. The HA 3 is equipped with two combined input jacks for use with 6.35 mm stereo TRS jacks or XLR connectors. Headphones or IEMs are connected to a 3.5 mm stereo headphone output. Activate the unit with the ON/OFF switch and set the desired volume for the headphone signal. Use the stereo/mono source switch depending on your connected audio source(s) and use the balance control to adjust the stereo panel for your headphones.

Specifications:

• two-channel in-ear monitor amplifier (with cable) for vocalists, keyboardists, drummers, guitarists, bassists and other musicians
• ultra-compact, lightweight design, aluminum housing
• convenient belt bag format for easy access and reliable connection to the source
• sturdy metal belt clip
• 5/8" and 3/8" mounting adapters for alternative installation on a microphone stand
• two separate inputs for separate monitor signals or stereo signals
• XLR/TRS combo input jacks have a locking mechanism that prevents accidental disconnection of the XLR cable
• 3.5 mm (1/8") stereo output for connecting your favorite in-ear monitor, earphones or headphones
• stereo input and stereo output possible
• MONO/STEREO switch to send a mono input signal to both ears
• volume and balance controls
• powered by regular 9 VDC, center negative pedal power supply (not included) or 9 V battery (not included)
• easily accessible battery compartment
• ON/OFF switch to conserve battery power when not in use
• LED power indicator
• dimensions (L x W x H) incl. clip, jacks & buttons: 102 x 85 x 34 mm
• weight: 295 gr. (without battery)
