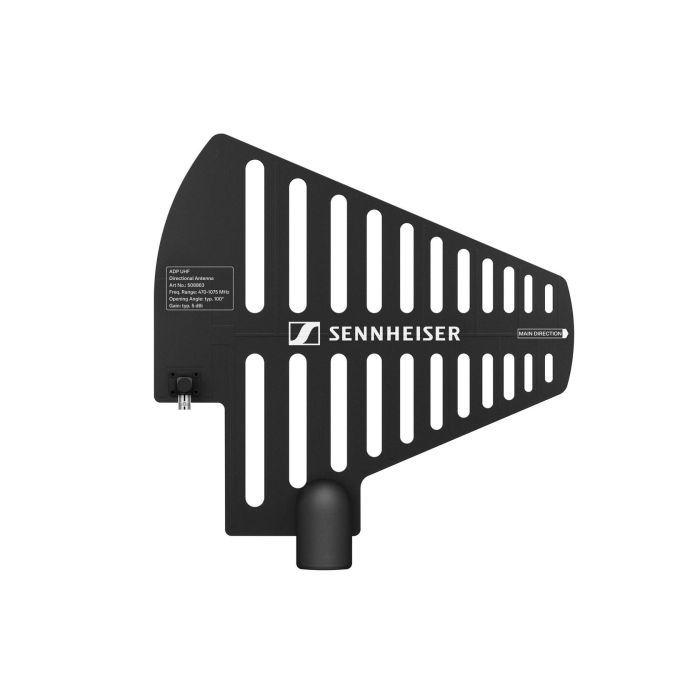

The Sennheiser ADP UHF is a directional, passive antenna. The antenna can be connected via regular 50 ohm antenna cables.
You connect two antennas to a receiver for diversity reception. The correct placement and alignment of an antenna is important. We gladly inform and advise you about the use of the right antenna cables, antennas and antenna placement.
- frequency band: 470 - 1075 MHz -
Angle of elevation: 100° -
Front-to-back ratio ≥ 14 dB -
Impedance: 50 Ω -
Mounting via 3/8" or 5/8" wire -
Gain typ.: 5 dB -
Sennheiser order no.: 508863
Dimensions: 319 x 310 mm.
Weight: 320 gr.
