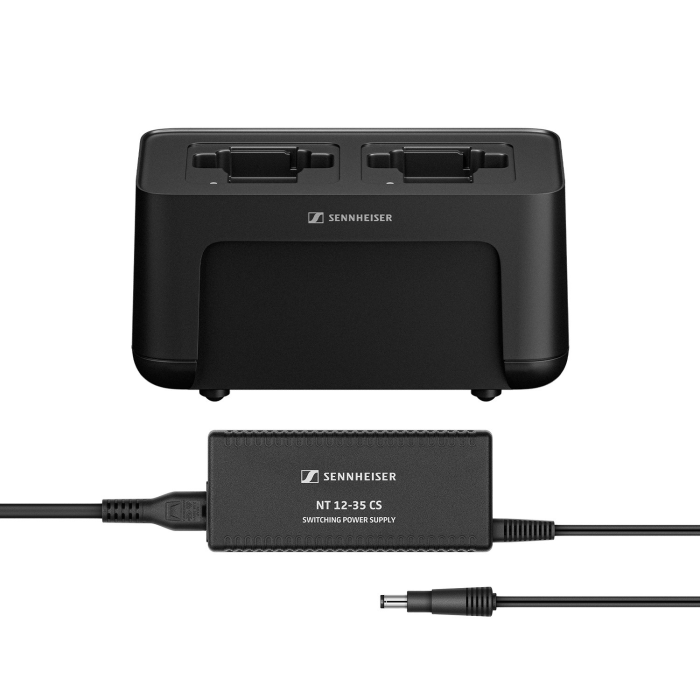

The Sennheiser CHG 70N-C + PSU KIT is a network charger with two separate charging compartments specifically designed for EW-DX series microphone and bodypack transmitters. Compatible with EW-DX SKM, SK or BA 70. This +PSU kit includes a Sennheiser NT12-35 CS power adapter
- control and monitoring via the Sennheiser Control Cockpit and third-party applications
- 2 slots: charge one EW-DX SKM, SK or BA70 per slot
- power supply via PoE or PSU (PSU included)
- PoE IEEE 802.3af, class 3
- cascade up to 5x CHG 70N-C (only one network and PSU required)
- 2 hours charging time (0 ~ 80%), 3 hours to 100%
In the box:
1x CHG 70N-C, 1x NT12-35 power supply, quick guide and safety guide.
CHG 70N-C + PSU KIT specifications:
- Power supply: 12 V ⎓ (single device or cascade of up to 5 devices) or PoE IEEE 802.3af class 0 (CAT5e or higher)
- incl. power supply unit
- power consumption: max. 3.5 A for cascade of up to 5 devices
- power consumption: max. 12 W
- network connection: RJ-45, IEEE 802.3; 10base-T (half and full), 100base-TX (half and full)
- dimensions: approximately 200 x 104 x 116 mm (7.9" x 4.1" x 4.6")
- weight: about 640 g (excluding power adapter)
- 2 charging bays
- Charging capacity per bay BA 70 rechargeable battery or EW-DX SK with BA 70 or EW-DX SKM with BA 70
- charging voltage: 4.35 V
- charging current: min. 344 mA and max. 860 mA
- charging status indicator: 1 LED per bay (red, yellow, green)
- charging time for full charge: max. 3.5h
- charging temperature range: -10 °C - 50 °C (14 °F - 122 °F)
- storage temperature range: -20 °C - 70 °C (-4 °F - 158 °F)
- relative humidity: max. 95% non-condensing
