Sennheiser GZL RG 8x - 5m

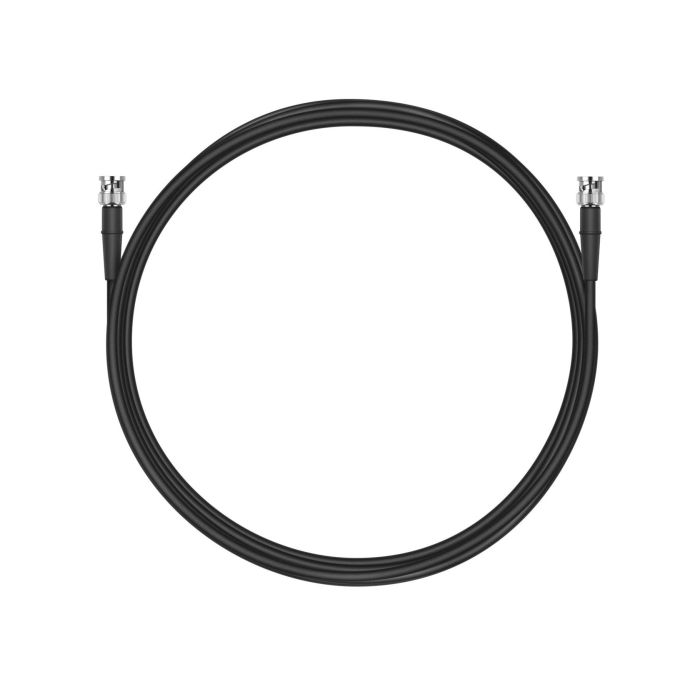

The Sennheiser GZL RG 8x is a coax antenna cable with BNC connectors. The cable has a very low attenuation and is therefore suitable for longer lengths. This cable can be used as a connection cable between your antenna splitter (or transmitter/receiver) and your antennas. The cable has an impedance of 50 Ohm and is therefore very suitable for wireless connections (RF). This cable has a length of 5 mtr.

The cable has a male BNC connector at one end and a male BNC connector at the other end.

Tip! The GZL RG 8x series is suitable for longer cable lengths up to 20 meters, but this cable is a bit stiffer than the GZL RG 58 series.
Therefore, for short lengths we recommend the GZL RG 58 series.

• Sennheiser antenna cable

• BNC to BNC

• coaxial cable

• suitable for use between antenna splitters (transmitters/receivers) and antennas

• maximum attenuation: 16.8 dB/100m at 400 MHz, 25.5 dB/100m at 800 MHz

• Conductor DCR (direct voltage resistance): < 3.2 Ohm/100m

• capacitance: 82 pF/m

• maximum pass frequency: 4000 MHz

• diameter: 6.8 mm

• Sennheiser order no.: 700163

• length: 5 meter
