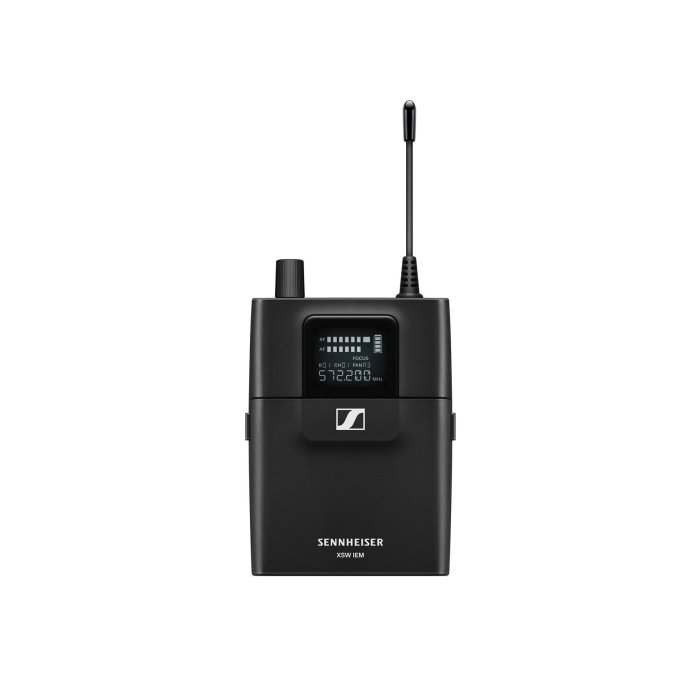

Sennheiser XSW IEM EK (A) (476 - 500 MHz)

The Sennheiser XSW IEM EK is the lightweight bodypack of the XSW IEM series. Designed for in-ear monitoring to expand your existing XS Wireless IEM setups. This bodypack operates on the frequency range: A (476 - 500 MHz)

Includes XSW IEM EK receiver, IE 4 in-ear headphones and 2x AA batteries.

Specifications:

• modulation: wideband FM

• switchable bandwidth: up to 24 MHz

• nominal/peak deviation: ±15 kHz / ±24 kHz

• squelch (fixed): 10 µV

  AF:

• signal-to-noise (1 mW, peak deviation): ≥88 dB

• THD: ≤ 1 %

• AF output level @ 3.5 mm: 2 x 1.25 Veff @ 16 Ω

• high boost (EQ): +10 dB @ 13 kHz

• limiter: -10 dB

• AF frequency response: 45 Hz - 15 kHz

• crosstalk (50 Hz - 10 kHz): nominal 45 dB

  general:

• operating temperature: 0 °C to +40 °C

• power supply: 2x AA batteries, 1.5 V (included)

• voltage: 3 V

• operating time: +/- 6 hours (depending on volume)

• dimensions (WxDxH): 9.5 x 7 x 2.6 cm

• weight (incl. batteries): 110 g

  IE 4 - in ears:

• transducer: dynamic

• frequency response: 40 Hz - 20 kHz

• SPL (@ 1 kHz, 1 mW): 106 dB

• nominal impedance: 6 ohms

• cable length: 1.4 m

• connector: 3.5 mm TRS

• operating temperature: -5 °C to +50 °C

  In the box:

• XSW IEM EK stereo receiver

• IE 4 in-ear earbuds

• 2x AA batteries

• Quick Guide

• Safety Guide

• Compliance Sheet

• Frequency Table

Please note the return policy for this product. This is a hygiene product.
