Sennheiser XSW1-CI1 (B 614-638MHz)

The Sennheiser XSW 1-CI1 gives guitarists, bassists and other musicians the freedom to perform completely wirelessly without compromising on sound quality. The system combines modern design with intuitive operation and the reliable sound for which Sennheiser is known worldwide. The set consists of the EM-XSW 1 receiver, the SK-XSW bodypack transmitter and the specially designed Ci1 instrument cable. You simply connect your instrument and are immediately ready to play without cables. Thanks to one-touch scanning and synchronization, setup is a snap.

As you would expect from Sennheiser, the XSW 1-CI1 excels in signal stability and audio. With 10 available systems within the UHF band, you're always playing with an interference-free connection. The internal antennas and clear icon-based controls make it uncluttered and easy to use, even in busy live environments.

Ci1 instrument cable
The included Ci1 instrument cable ensures stable and clear signal transmission from your guitar or bass to the bodypack transmitter. Sturdy and built for heavy-duty use, so you can perform without worry.

Sennheiser XSW 1-CI1 features:

• wireless instrument system with bodypack transmitter and Ci1 cable
• easy setup via one-touch scan and synchronization
• clear operation thanks to icon-based display
• sleek design with built-in diversity antennas
• up to 4 systems can be used simultaneously
• robust ABS housing, suitable for intensive use
• ideal for guitar, bass and other electric instruments

Sennheiser XSW 1-CI1 technicalspecifications:

system (XSW 1-CI1):

• modulation: wideband FM
• frequency range: B: 614-638 MHz
• switchable bandwidth: up to 24 MHz
• frequencies: 8 frequency banks with 10 preset channels

receiver (EM-XSW 1):

• receiver-type: double superheterodyne
• diversity-type: internal antenna diversity
• frequency response: 50 Hz - 16 kHz
• maximum output voltage: 6.3 mm jack (unbalanced) +6 dBu / XLR (balanced) +12 dBu
• audio adjustment range: 45 dB, adjustable in 5 dB steps
• power supply: 12 V DC nominal / 300 mA
• line/microphone level: 20 dB, switchable
• housing: ABS
• dimensions (w x h x d): 200 x 42 x 127 mm
• weight: 340 gr.

bodypack transmitter (SK-XSW):

• output power: 10 mW
• frequency response: line/microphone 50 Hz - 16 kHz
• audio input: 3.5 mm jack
• power supply: 2 x AA batteries (1.5 V)
• operation time: approx. 10 hours
• transmitter sensitivity: 0 to -30 dB, adjustable in steps of 10 dB
• housing: ABS
• dimensions (w x h x d): 71 x 96 x 28 mm
• weight: 95 gr.

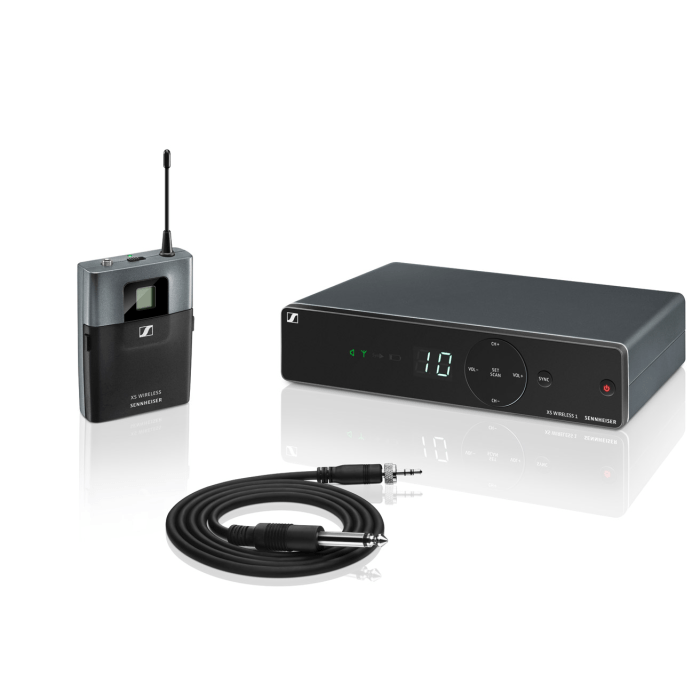

In the box:

• EM-XSW 1 receiver
• SK-XSW bodypack transmitter
• Ci1 instrument cable
• NT 12-5 CW power adapter
• 2 AA batteries
