Sennheiser XSW2-CI1-BC

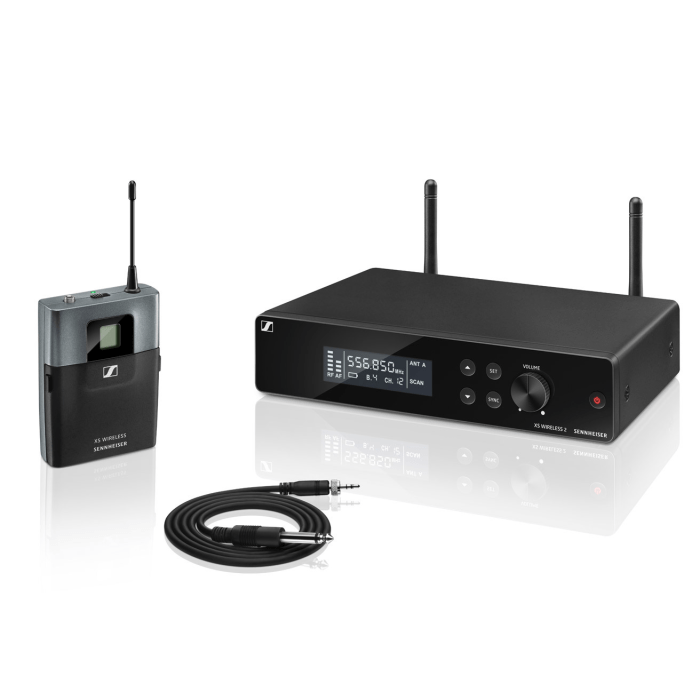

The Sennheiser XS wireless 2 series is a step up from the XSW 1 series in terms of reception and range. The XSW-2 CI1 set is a transmitter system with a receiver, bodypack and instrument connection cable. So you can connect your (bass) guitar to the bodypack via the included CI1 connection cable.

This BC-band version has a frequency range of 670 - 694 MHz.

- - Sennheiser XSW wireless instrument set: XSW 2-CI1
- analog, wideband FM modulation
- frequency band: BC band 670 - 694 MHz
- frequencies: 8 frequency banks with 12 preset channels

receiver (EM-XSW 2):
- dual superheterodyne receiver
- true diversity
- frequency response: 50 Hz - 16 Khz
- maximum output voltage: 6.35 mm jack (unbalanced): +6 dBu
- XLR (balanced): +12 dBu
- audio adjustment range: 40 dB, adjustable in 5 dB increments
- power supply: 12 V DC nominal / 300 mA
- line/microphone level: 20 dB, switchable
- housing: ABS material
- dimensions (W x H x D): 200 x 42 x 127 mm
- weight: 680 gr

bodypack transmitter (SK-XSW):
- output power: 10 mW
- frequency response:
- line: 50 Hz - 16.000 Hz
- microphone: 50 Hz - 16. 000 Hz
- audio input: 3.5 mm jack
- power supply: 2 AA batteries, 1.5 V
- operating time: approximately 10 hours
- transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB increments
- housing material: rugged ABS
- dimensions (W x H x D): 71 x 96 x 28 mm
- weight: 95 gr

The XSW2 CI2 set includes:
- 1x EM-XSW 2 receiver
- 1x bodypack transmitter SK-XSW
- 1x Cl1 instrument cable
- 1x NT 12-5 CW power adapter
- 2x AA batteries
- 1x rackmount kit
- 1x 1 case/bag
- 1x manual

Sennheiser part no: 507459
