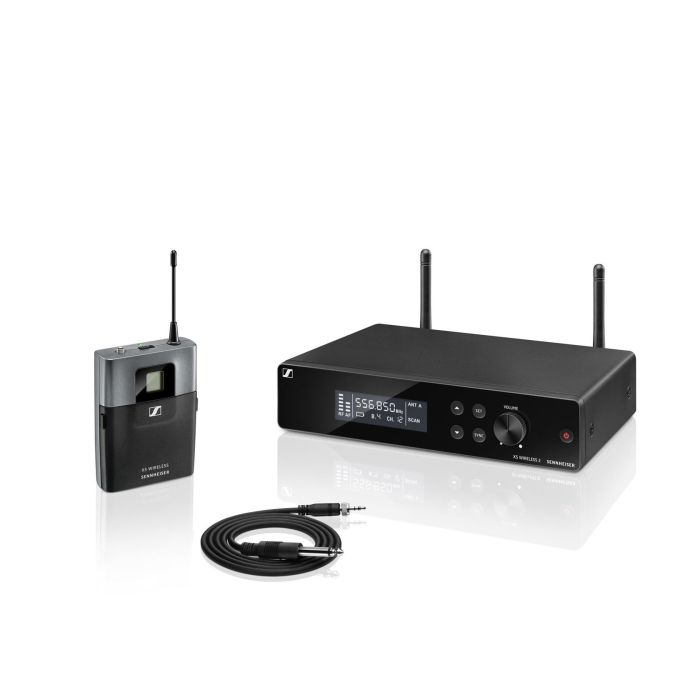

Sennheiser XSW2-CI1-E

The Sennheiser XS wireless 2 series is a step up from the XSW 1 series in terms of reception and range. The XSW-2 CI1 set is a transmitter system with a receiver, bodypack and instrument connection cable. So you can connect your (bass) guitar to the bodypack via the included CI1 connection cable.

This E-band version you can use freely throughout Europe (863-865 MHz).

Specifications:

• Sennheiser XSW wireless instrument set: XSW 2-CI1

• analogue, wideband FM modulation

• frequency band: E: 821-832 MHz, 863-865 MHz

• frequencies: 8 frequency banks with 12 preset channels

  receiver (EM-XSW 2):

• dual superheterodyne receiver

• true diversity

• frequency response: 50 Hz - 16 Khz

• maximum output voltage: 6.35 mm jack (unbalanced): +6 dBu

• XLR (balanced): +12 dBu

• audio adjustment range: 40 dB, adjustable in 5 dB steps

• power supply: 12 V DC nominal / 300 mA

• line/microphone level: 20 dB, switchable

• housing: ABS material

• dimensions (W x H x D): 200 x 42 x 127 mm

• weight: 680 gr

  bodypack transmitter (SK-XSW):

• output power: 10 mW

• frequency response:
  - line: 50 Hz - 16,000 Hz
  - microphone: 50 Hz - 16,000 Hz

• audio input: 3.5 mm jack

• power supply: 2 AA batteries, 1.5 V

• operation time: approximately 10 hours

• transmitter sensitivity: 0 to -30 dB, adjustable in 10 dB steps

• housing material: rugged ABS

• dimensions (W x H x D): 71 x 96 x 28 mm

• weight: 95 gr


• The XSW2 CI2 set includes:
  1x EM-XSW 2 receiver
  1x bodypack transmitter SK-XSW
  1x Cl1 instrument cable
  1x NT 12-5 CW power adapter
  2x AA batteries
  1x rackmount kit
  1x 1 etui/bag
  1x manual
