Shure GLXD16+

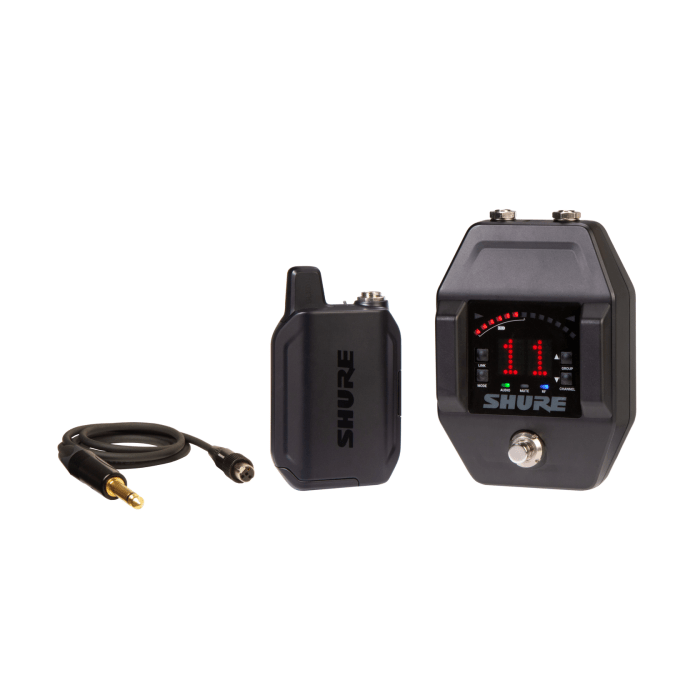

The Shure GLXD16+ is a digital wireless guitar system for guitarists and bassists who want to keep their pedalboard tight but move freely across the stage. The set includes the GLXD6+ guitar pedal receiver, the GLXD1+ bodypack transmitter and the WA305 instrument cable. This gives you everything you need right away to wirelessly connect your guitar or bass to your amp, pedalboard or rig. The big advantage of the GLXD16+ is the combination of a wireless system and a pedal receiver with built-in tuner. You simply place the receiver between your other pedals. This keeps your setup organized and eliminates the need to carry a separate rack receiver or extra tuner. Ideal for guitarists and bassists playing live, rehearsing or looking for a neat pedalboard solution.

Fuss-free wireless playing
The GLXD16+ works with Shure GLX-D+ Dual Band technology. It uses both the 2.4 GHz and 5.8 GHz bands and automatically searches for a suitable frequency. As a result, you don't have to set up channels yourself and can get up and running quickly. The system is designed to avoid interference and keep the connection stable, so you can concentrate on your playing. For many guitarists, playing wirelessly is only interesting if the sound stays good. The GLXD16+ is built to transmit your guitar signal clearly and directly, with a frequency response of 20 Hz to 20 kHz and a dynamic range of 120 dB. This keeps the tone of your guitar, bass, pedals and amplifier sounding great.

Pedalboard receiver with built-in tuner
The GLXD6+ receiver is shaped like a guitar pedalboard and therefore fits well on a pedalboard. The metal housing feels sturdy and is suitable for intensive use on stage. The receiver has a 6.35 mm output, so you can easily insert it into your existing signal chain. In addition, the GLXD6+ has a built-in tuner. You can choose between strobe and needle mode and set the reference tone from 432 to 447 Hz. This makes the receiver not only the heart of your wireless system, but also instantly your tuner on stage.

Handy true bypass input
A practical addition to the GLXD6+ is the 6.35 mm true bypass input. This also allows you to connect a wired guitar or bass to the same receiver. This comes in handy when you want to switch between a wireless and wired instrument during a gig, or when you prefer to play with cable while practicing. You can switch between the wireless input and the wired input with the footswitch. This keeps your pedalboard organized and eliminates the need for a separate A/B switch or extra tuner.

[[READMORE]]

GLXD1+ bodypack transmitter with rechargeable battery
The included GLXD1+ bodypack transmitter is compact, lightweight and features a metal housing. You connect the transmitter to your guitar or bass with the included WA305 instrument cable. The transmitter uses the Shure SB904 lithium-ion battery, which offers up to 12 hours of operating time on a full charge. Battery status is visible on the receiver, so you can easily see how much playing time you have left while playing. Also convenient: with 15 minutes of fast charging, you can play for about 1.5 hours. That's great when you need extra playing time quickly before a gig, rehearsal or set change.

Suitable for guitar and bass
The Shure GLXD16+ is suitable for electric guitar and bass guitar. The system is especially interesting for musicians who like to move around on stage without a long cable across the floor. Think of guitarists in bands, bassists, worship teams, cover bands, theaters, studios, rehearsal rooms and live productions. Because the receiver works as a pedalboard, the GLXD16+ fits well with musicians who already play with a pedalboard. You can place the system at the front of your chain and then move on to your effects, amp or modeler.

Shure GLXD16+ features:

• digital wireless guitar system for guitar and bass
• consists of GLXD6+ guitar pedal receiver, GLXD1+ bodypack transmitter and WA305 instrument cable
• operates on 2.4 GHz and 5.8 GHz Dual Band technology
• automatic frequency selection for quick installation
• GLXD6+ receiver in pedal format for use on a pedalboard
• built-in tuner with strobe and needle mode
• adjustable reference tone from 432 to 447 Hz
• 6.35 mm output for connection to pedalboard, amplifier or modeler
• 6.35 mm true bypass input for wired use
• switching between wireless and wired instrument via the pedal receiver
• GLXD1+ bodypack transmitter with metal housing
• SB904 lithium-ion battery with up to 12 hours playing time
• fast charge function: approx. 1.5 hours of playing time after 15 minutes of charging
• clear battery indication via LED segment display on the receiver
• suitable for live use, rehearsals, studio and pedalboard setups
• 9V power supply possible via pedalboard power supply, minimum 400 mA
• WA305 premium instrument cable included
• license-free use in the Netherlands and Belgium

Shure GLXD16+ specifications:

• frequency band: 2.4 GHz and 5.8 GHz
• transmission: Shure GLX-D+ Dual Band Digital
• frequency response: 20 Hz - 20 kHz
• dynamic range: 120 dB, A-weighted
• RF output power: up to 10 mW E.I.R.P.
• indoor range: up to 30 meters typically, up to 60 meters under ideal conditions
• outdoor range: up to 20 meters typically, up to 50 meters under ideal conditions
• battery life: up to 12 hours
• fast charging: approximately 1.5 hours of use after 15 minutes of charging
• suitable number of systems without frequency manager: up to 4 typically, up to 8 under ideal conditions
• suitable number of systems with frequency manager: up to 11 typical, up to 16 under ideal conditions

GLXD6+ guitar pedalboard receiver:

• type: pedalboard receiver
• housing: metal
• output: 6.35 mm TS jack
• input: 6.35 mm true bypass jack
• tuner modes: strobe and needle
• reference tone tuner: 432 - 447 Hz
• power supply: 9V DC, minimum 400 mA
• dimensions: 138 x 95 x 48 mm
• weight: approx. 560 grams

GLXD1+ bodypack transmitter:

• type: bodypack transmitter
• connection: TA4M
• housing: metal
• battery: Shure SB904 lithium-ion
• maximum transmission power: 10 mW E.I.R.P.
• dimensions: 115 x 66.94 x 28.51 mm
• weight: approximately 153.1 grams

Included:

1x Shure GLXD6+ guitar pedal receiver
1x Shure GLXD1+ bodypack transmitter
1x Shure WA305 premium instrument cable
1x Shure SB904 lithium-ion battery pack
1x Shure PS24 power supply
1x Shure SBC10-USBC USB-C wall charger

Why choose the Shure GLXD16+?
The Shure GLXD16+ is a neat solution for guitarists and bassists who want to play wirelessly without complicating their pedalboard. The receiver works as a pedalboard, has a built-in tuner and fits directly into your existing signal chain. Thanks to Dual Band technology, automatic frequency selection and a rechargeable battery, this system is quickly ready for use. For live use, the combination of convenience and control is especially strong. You see the battery status on the receiver, tune your instrument via the same pedal and can even connect a wired instrument via the true bypass input. This keeps your setup clear, while giving you the freedom to play wirelessly.
