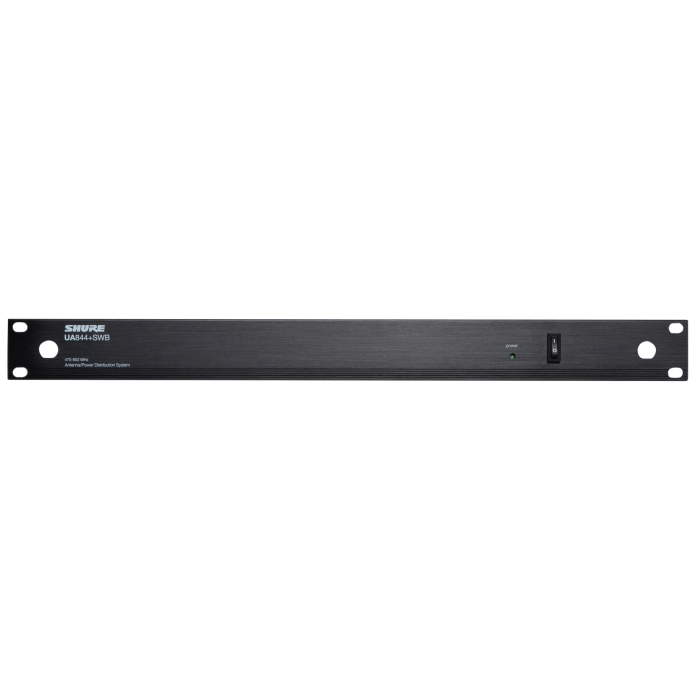

Shure UA844+SWB/LC

The Shure UA844+SWB/LC is an active antenna distribution system for wireless microphone systems. With this splitter, you use one pair of antennas for multiple receivers, keeping your rack uncluttered and your RF signal neatly distributed. Ideal for fixed installations, rental sets, stages, churches, schools and presentation rooms where multiple wireless channels are used simultaneously. The designation LC stands for Less Cables. This means that this version comes with a limited amount of BNC cables. This is especially interesting for users who already have cabling or use their own custom cables.

Active antenna splitter for multiple receivers
The UA844+SWB/LC splits the signal from two antennas to multiple receivers. Because it is an active splitter, the RF signal is amplified to compensate for signal loss due to splitting. Thus, you maintain stable signal transmission within your wireless system. This splitter distributes one pair of antennas to up to 4 receivers, with an additional cascade connection for a 5th receiver or extension. This makes it suitable for both compact setups and larger installations. This splitter is suitable for Shure QLX-D, ULX, ULX-D, SLX, SLX-D, BLX4R, UR4, U4D and UC receivers, among others. For larger systems, multiple UA844+SWB/LC units can be used in a two-tier configuration.

[[READMORE]]

Neat rack, fewer cables
The Shure UA844+SWB/LC helps keep your wireless rack organized. The antennas can be brought to the front of a 19-inch rack via the included BNC cables and bulkhead adapters. This keeps the antennas easily accessible and prevents them from being shielded at the back of the rack. In addition, the splitter also supplies power to up to four receivers via its DC outputs. This reduces the need for separate adapters and keeps your rack more neatly wired.

Connections
On the back you will find: 8x BNC output, 2x BNC input, 2x BNC cascade connection for a fifth receiver or additional splitter, 1x DC input and 4x DC output.

Shure UA844+SWB/LC features:

• active antenna splitter and power distribution for Shure wireless receivers
• distributes one pair of antennas to up to 4 receivers, with cascade connection for a 5th receiver or expansion
• compensates for RF signal loss by active gain
• suitable for QLX-D, ULX, ULX-D, SLX, SLX-D and BLX4R, among others
• HF frequency range from 470 to 952 MHz
• equipped with BNC cascade connections for expansion
• 19 inch rack mount with possibility to place antennas forward
• supplies power to up to 4 receivers via DC outputs
• LC (Less Cables) version with limited amount of BNC cables included (therefore slightly cheaper)
• provides bias voltage for feeding active antennas
• number of receivers: up to 4 + 1 via cascade
• frequency range: 470 - 952 MHz
• color: black
• power supply included

Included:
1x UA844+SWB
1x PS45 external power adapter
4x non-locking DC power cable for QLXD4, SLX4 and BLX4R
2x BNC cable of 60 cm (note: additional BNC cables are required for connecting multiple receivers)
2x BNC cable of approximately 1.8 meters
2x bulkhead adapter for mounting on the front of a rack
1x rackmount hardware kit
