Tascam TA-1VP

The Tascam TA-1VP is a professional vocal processor for singers, producers, sound engineers, and studios that want complete control over the sound of vocals and other audio signals. This 19-inch rack-mount processor combines the well-known Antares Auto-Tune Evo pitch correction with microphone modeling, a microphone preamp, compressor, gate, de-esser, and parametric equalizer. This provides the user with a complete vocal channel strip for both live performances and studio productions.

The TA-1VP was developed in collaboration with Antares Audio Technologies and offers a variety of options for correcting, shaping, and editing vocal recordings. From subtle pitch correction and natural dynamic control to the recognizable Auto-Tune effect: all key processing functions are accessible directly through the unit. Thanks to its built-in presets, programmable settings, and MIDI control, the processor is suitable for a variety of musical applications.

Antares Auto-Tune Evo for real-time pitch correction
One of the Tascam TA-1VP’s key features is its integrated Antares Auto-Tune Evo technology. This allows the pitch of vocals and monophonic instruments to be corrected while playing or singing. The processor analyzes the incoming audio signal and adjusts the pitch based on the selected scale. The correction speed is adjustable, allowing the TA-1VP to produce both subtle corrections and pronounced electronic vocal effects. At a slower setting, natural pitch variations are better preserved, while a fast correction produces the characteristic Auto-Tune effect used in pop, hip-hop, R&B, and electronic music. There are 25 scale settings available, including a chromatic scale and 24 diatonic scales. These can be customized as desired. The sensitivity of the pitch detection is also adjustable, allowing the processor to be tailored to different vocal styles and instruments.

Antares Microphone Modeler for Various Microphone Sounds
In addition to pitch correction, the TA-1VP features Antares Microphone Modeler technology. This allows the sound characteristics of various microphone types to be emulated. The processor takes into account the source microphone being used and then applies the characteristics of a selected microphone model. The built-in models include various dynamic microphones, small-diaphragm and large-diaphragm condenser microphones, and specific microphone types for instruments. The proximity effect—where low frequencies are amplified when a microphone is placed closer to the sound source—can also be adjusted. This feature makes it possible to change the sound of an existing microphone recording without having to re-record. For example, a vocal track can be given more clarity, warmth, or presence. The Microphone Modeler can also be used for spoken word, instrument recordings, and other audio sources.

[[READMORE]]

Analog tube modeling for extra warmth
The built-in analog tube modeling gives vocals and instruments the character of a classic tube preamp. With the adjustable Tube Saturation Drive, additional harmonic saturation can be added to the audio signal. The amount of saturation is adjustable from 0 to 12 dB. This allows the user to choose between a subtle coloration and a more heavily saturated sound. This feature is suitable for vocal tracks that need extra character or for recordings where a tube preamp is used as a sound reference.

Compressor with Adjustable Dynamics Control The Tascam TA-1VP features a compressor that controls level differences in vocals and instruments. The compressor helps make soft passages more audible and manages peaks in the audio signal. The compressor has adjustable threshold, ratio, attack, and release parameters. It also features a continuously adjustable knee, which allows you to control the transition between uncompressed and compressed sound. This allows the compressor to be set for gradual, natural dynamic control or a more direct compression effect. This is useful for lead vocals, backing vocals, spoken word, and instrument recordings, among other applications.

Gate for Reducing Unwanted Background Noise
The built-in downward-expanding gate reduces unwanted background noise when the input signal falls below a set level. The gate features adjustable threshold and ratio parameters and operates independently of the compressor. This allows both functions to be used and adjusted separately. Among other things, this feature can be used to reduce background noise, crosstalk, and breathing sounds between vocal phrases. The gate can also help produce a cleaner audio signal for spoken word and instrument recordings.

De-esser for Controlled “S” Sounds
The integrated de-esser is designed to reduce sharp “s” sounds in vocals and speech. “S” and “sh” sounds can be particularly pronounced, especially with condenser microphones or clearly recorded voices. With adjustable threshold, ratio, attack, release, and frequency-dependent detection, the de-esser can be tailored to the voice and the microphone being used. This brings disruptive sibilance under control without sacrificing the full clarity of the recording. The de-esser can be used both during recording and in live applications.

Parametric 2-Band Equalizer To adjust the frequency balance, the TA-1VP features a parametric equalizer with two independently adjustable bands. Both bands support various filter types, including high-pass, low-pass, shelving, band-pass, notch, and parametric peaking filters. This allows specific frequency ranges to be boosted or attenuated. For example, the equalizer can be used to reduce excess low frequencies, improve vocal intelligibility, or address unwanted resonance. Its adjustment capabilities make the EQ suitable for both corrective and tone-shaping applications.

Double Tracking for Wider Vocal Parts
The automatic Double Tracking function allows you to create a second vocal signal based on the original audio signal. This simulates the effect of a double-tracked vocal part. The generated signal can be mixed with the main signal or routed through a separate output. Stereo applications are also possible. This feature is ideal for broadening lead vocals, creating fuller background vocals, and adding extra depth to a mix. Thanks to the separate Double Track output, the second signal can also be processed independently via a mixing console or audio interface.

Built-in Microphone Preamplifier with Phantom Power
The Tascam TA-1VP is equipped with a microphone preamplifier based on the input technology of the professional Tascam DM-4800 and DM-3200 digital mixing consoles. The front panel features a balanced XLR microphone input with switchable 48V phantom power. This allows both dynamic and condenser microphones to be connected directly. In addition, the microphone input features a switchable -20 dB pad, which can be used to reduce the input level of louder sound sources. The input trim provides additional options for adjusting the signal level. The integrated preamp eliminates the need for an external microphone preamp in many applications. The microphone signal can be amplified directly and then processed by the internal effects modules.

Presets and Front-Panel Control
The TA-1VP features a collection of factory presets for various vocal styles and musical applications. Presets for instruments and percussion are also available. All key parameters can be saved in user presets. This allows settings for different vocalists, songs, or productions to be prepared and recalled. The front panel has separate control knobs for the various processor modules. Parameters and settings can be viewed on the LCD screen, which displays two lines of 20 characters each. LED meters provide information on input and output levels, pitch correction, compression, and de-esser operation. This allows you to see how the audio signal is being processed during recording or live performance.

MIDI Control and Studio Integration
Thanks to its MIDI input and MIDI output, the Tascam TA-1VP can be integrated into a MIDI-controlled studio or live setup.The various parameters can be controlled via MIDI Continuous Controller messages. This allows settings to be adjusted in real time from a DAW or external MIDI controller. For example, this makes it possible to change pitch correction, compression, or other effect parameters during a song. Settings can also be automated for productions requiring multiple sound settings. For additional control options, a connection for an optional footswitch is provided. This allows assigned functions to be controlled during a performance.

Analog and Digital Connections The Tascam TA-1VP features connections for integration into professional audio systems, mixing consoles, and recording studios. In addition to the XLR microphone input, there is a balanced 6.35 mm TRS line input. This allows external microphone preamps, mixing consoles, and other devices with a line signal to be connected. The balanced 6.35 mm TRS main output sends the processed audio signal to a mixing console, audio interface, or other device. Additionally, a separate balanced 6.35 mm TRS output is available for the Double Tracking function. For digital signal transmission, the processor features a coaxial S/PDIF output with an RCA connector. This allows the digital audio signal to be routed to compatible equipment.

19-inch rack-mount design for studio and live use

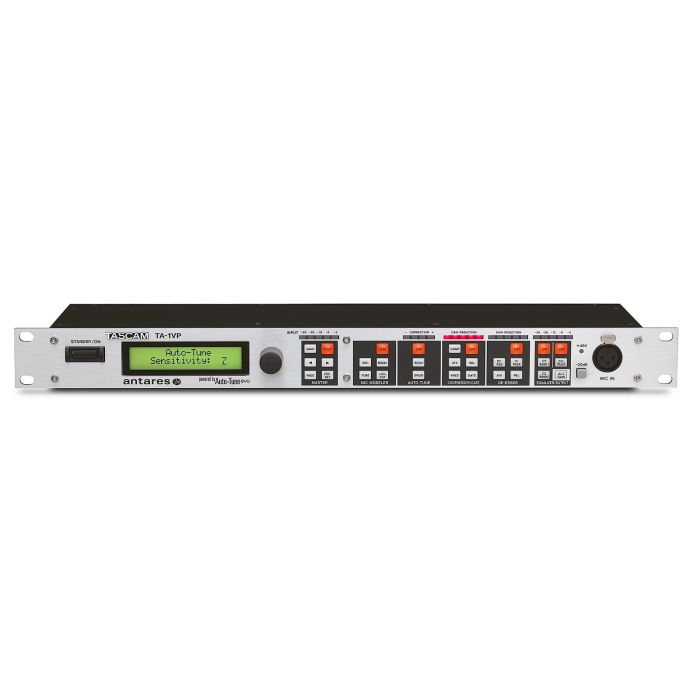

The TA-1VP features a 19-inch rack-mount enclosure with a height of 1U. This allows the processor to be installed in a studio rack, effects rack, or mobile live setup. With a depth of just 12.8 cm, the unit takes up relatively little space. The controls and microphone input are located on the front panel, while the remaining audio and MIDI connections are located on the rear panel. The combination of Auto-Tune, microphone modeling, dynamics processing, and equalization in a single unit makes the TA-1VP a complete hardware solution for vocal processing without relying on software plugins.

Tascam TA-1VP features:

• professional vocal processor with Antares Auto-Tune Evo
• real-time pitch correction for vocals and monophonic instruments
• 25 adjustable scale presets, including chromatic and 24 diatonic scales
• Adjustable correction speed and pitch detection
• Antares Microphone Modeler for emulating various microphone characteristics
• analog tube modeling with 0 to 12 dB saturation
• Compressor with adjustable threshold, ratio, attack, release, and knee
• downward-expanding gate with independent control
• De-esser with adjustable threshold, ratio, attack, release, and frequency
• 2-band parametric equalizer with independently adjustable bands
• EQ filter types: high-pass, low-pass, band-pass, notch, low-shelf, high-shelf, and peaking
• automatic Double Tracking function in mono or stereo
• Separate Double Track output
• Built-in microphone preamp
• Balanced XLR microphone input on the front panel
• Switchable 48V phantom power
• Balanced 6.35 mm TRS line input
• Balanced 6.35 mm TRS main output
• Balanced 6.35 mm TRS Double Track output
• Digital coaxial S/PDIF output via RCA
• MIDI input and MIDI output via 5-pin DIN connectors
• Connection for optional footswitch
• Programmable presets for vocals, instruments, and percussion
• Real-time MIDI control of effect parameters
• Enclosure: 19-inch rack-mount
• Power supply: external Tascam PS-1225L AC adapter (included)
• Rack height: 1U
• Dimensions (W x H x D): 48.3 x 4.4 x 12.8 cm
• Weight: 2 kg

In the box: Tascam TA-1VP Vocal Processor + Tascam PS-1225L AC adapter
