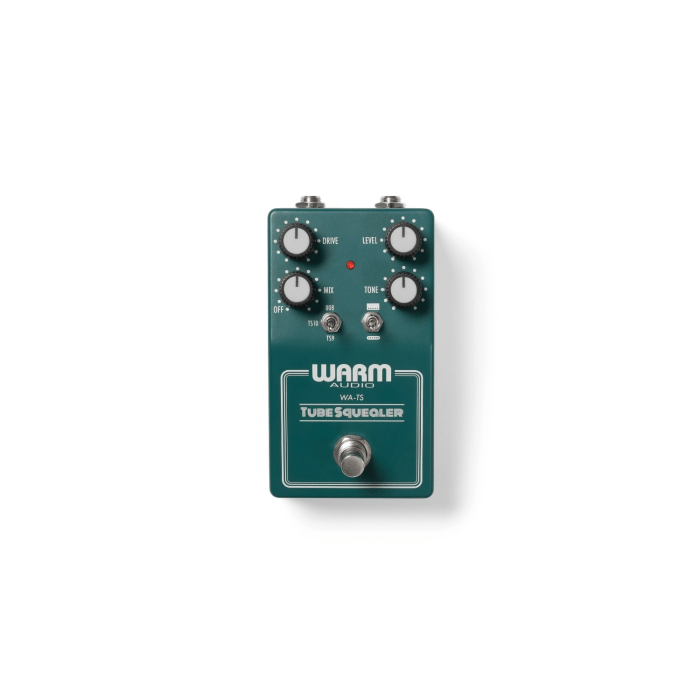

Warm Audio Tube Squealer

The Warm Audio Tube Squelaer is an authentic recreation of a widely known overdrive pedal. This Tube Squealer, like its inspiration, is the perfect overdrive to give crunch channel an extra kick in the ass, give your lead signal that extra saturation or get a high-gain channel tight and under control.

The Tube Squealer has three iconic overdrive circuits in it that we can easily switch between. A TS 808, TS9 and TS10 circuit. There is also the choice of true or buffered bypass and we can give the circuit a voltage boost for even more aggressive saturation.

• Faithful reproduction of three tube screamer overdrives with additional rig-ready features
• Overdrive pedal with three modes, soft-clipping, tube amp-driving, with mix knob, pickup voicing selector, voltage booster and true/buffered bypass selector
• Controls: Level, Drive, Tone, Mix, Pickup-Voicing-selector, Circuit-selector, Voltage Boost and Bypass-selector
• Components: (2x) ICs (including JRC4558 op-amps) | (3x) discrete transistors | (2x) JFETs | (4x) diodes and a switch with dual supply voltage.
• Current consumption: 12 mA in standard mode | 25 mA with boost
• Input sensitivity: 500 kΩ
• Output level (max.): +2.1 dBu at 9 V | +9 dBu at 18 V
• Connections: ¼: input & output + 9v center-negative power supply
• Dimensions: W: 5.1" | H: 2.75" | D: 2.63" | Weight: 1 lb
