Warm Audio WA-CX24
studio microphone
Max SPL: 149 dB
Frequency response: 30 Hz-20 kHz
Output impedance: 200 ohms
microphone weight 1.4 kg
individual outputs
Want to know when this item is back in stock? Send us your email address and we'll notify you as soon as it's available!
Our product experts are happy to help you!

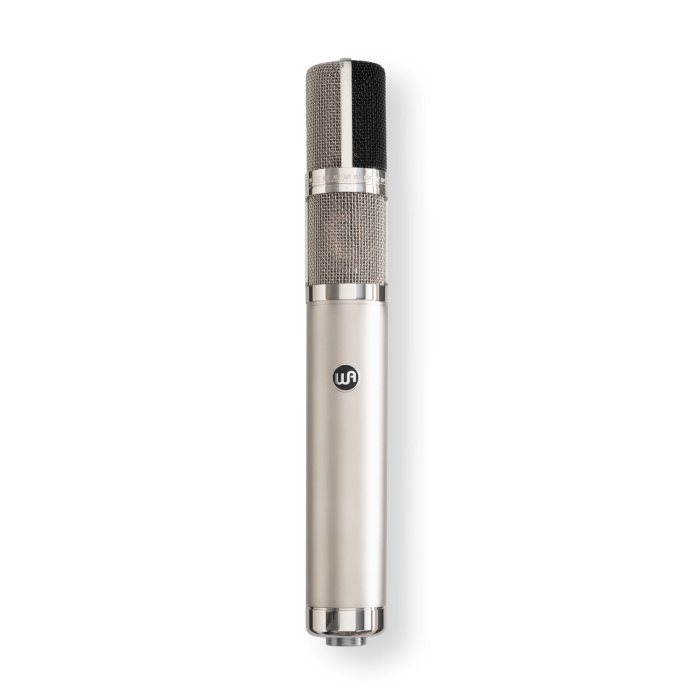

The WA-CX24 is a truthful reproduction of one of the most iconic vintage stereo large-diaphragm Tube condenser microphones, built with premium components for unmatched versatility. It features a vintage-correct design and offers multiple pickup patterns and adjustable stereo widths for imaginative stereo recording setups.
Elegant highs and lively mids deliver naturalness and expression - perfect for live drums, wide acoustic guitars and spacious pianos. With 180-degree capsule rotation, it enables precise stereo imaging and supports techniques such as XY, Blumlein, mid-side or custom angles.
Each capsule also has independently assignable polar-pattern switching, allowing unique combinations such as cardioid and figure-8 for creative stereo imaging.
Internally, there are two solid copper CK12-style capsules, a hand-selected 12AY7 tube for vintage warmth and clarity and two US-made T14 transformers from TAB-Funkenwerk (AMI) for superior signal integrity.
The WA-CX24 comes with a premium Gotham GAC-9 cable, dual-pattern power supply, shockmount, custom wooden box and tweed flight case. Like all Warm Audio equipment, it is hand tested by expert engineers in Austin, TX.
- Faithful reproduction of the most legendary stereo condenser tube microphone of all time.
- 2x custom-made Edge Terminated, Dual-Backplate, all-brass vintage CK12-style capsules.
- 2x custom-made T14 TAB-Funkenwerk (AMI) USA output transformers.
- Premium 12AY7 vacuum tube
- Premium polystyrene and Wima film capacitors.
- Polar patterns: 9 patterns - cardioid, omnidirectional, figure-8, + 6 additional mixed patterns (accessed via two switches, one per capsule)
- Max SPL: 149 dB
- Frequency response: 30 Hz-20 kHz
- Output impedance: 200 ohms
- Signal-to-noise ratio: 73 dB
- EIN/self noise: 22 dBA
- Power supply: external IEC grounded PSU
- Cable: Gotham 5-meter GAC-9, premium 9-pin tube microphone cable
- Total weight: 9.3 kg, microphone only: 1.4 kg
- Microphone dimensions: 35.6 cm x 5 cm
Included: stereo microphone, wooden case, power supply, shockmount, 9-pin Gotham Swiss cable, IEC cord, tweed flight case
| Brand | Warm Audio |
|---|---|
| Ean Code | 850031640665 |
| Type microfoon | tube microphone |
| Polar Pattern | switchable |
| On-off switch | no |
| Type of mount | shockmount |
| Popfilter | no |
| Windshield | no |
| Article number | 75211 |
| Size (packaging) | 49,5 cm x 18,2 cm x 47 cm |
