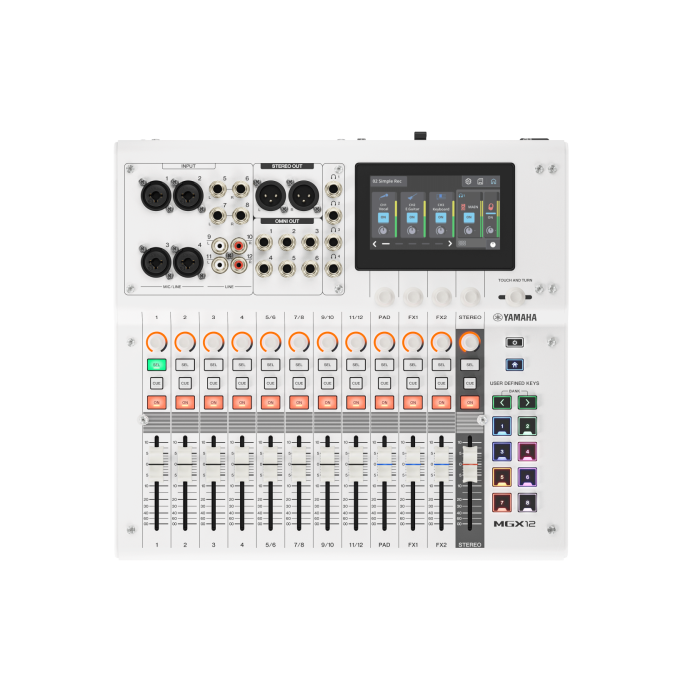

Yamaha MGX12 W

Building on the well-known MG series, the Yamaha MGX12 W (White) combines studio-quality audio with flexible routing and direct, logical control. Despite its extensive capabilities, this digital mixer is easy to use, thanks to 12 non-motorized faders, a bright 4.3-inch touchscreen and five physical control buttons. The MGX12 features ample local connections, including four high-quality MGX microphone preamps on Mic/Line combo inputs, controlled via 12 highly flexible mixing channels.

In addition, the MGX12 is equipped with an 18-in / 18-out USB audio interface, Bluetooth audio input and an internal 16-track recorder that records directly to microSD card. The integrated DSP delivers high-quality digital effects and monitoring without latency. Smart auxiliary features such as Auto Gain, Clip Safe, Simple/Standard mode and Scene Recall ensure that you work quickly and always stay in control. The included Steinberg software completes the package.

Refine your mix with 'True Sound' accuracy
Thanks to extensive connectivity and powerful digital processing, the MGX12 is suitable for live sound, podcasting, streaming and recording work. The carefully chosen I/O configuration, with four MGX microphone preamps on Mic/Line combo inputs and four headphone outputs, provides a solid foundation for a variety of applications. The internal DSP provides studio-quality effects and direct monitoring, while the comprehensive mixing architecture - with mono and stereo channels, a dedicated Sound Pad, two FX channels and extensive Mix, FX, Cue and Stereo buses - gives complete control over any mix.

The combination of MGX preamps and high-quality AD/DA converters is in keeping with Yamaha's "True Sound" philosophy, with a gain range of up to 86 dB, very low distortion and a dynamic range of 125 dB.

[[READMORE]]

Creativity central with multifunctional workflow
In addition to its role as a digital mixer, the MGX12 W also functions as a creative control center. Flexible routing and dual Main and Sub USB ports provide an 18-in / 18-out USB audio interface, complemented by 2-track recording and playback via the Sub port. Bluetooth makes wireless audio playback easy for performances, streams and studio sessions. Eight freely configurable pads allow direct triggering of sound effects or proprietary functions. With the ability to record up to 16 tracks and play back two tracks from a microSD card, capture professional audio anywhere - from mobile recording to reliable playback in a live environment.

Smart tools that work with you
The MGX12's controls are clear and fast, thanks in part to the combination of physical controls and the easy-to-use 4.3-inch touchscreen. The 12 faders offer precise level control, supported by dedicated Send buttons, four freely assignable rotary knobs and a Touch & Turn controller. Tools such as Smart Gain and Clip Safe help set stable levels. The Total FX section, which includes a Ducker and multiband compressor, ensures controlled and professional results in any situation. With quick Scene Recall and an optional Simple mode, you instantly switch between setups and stay focused on creative content.

Yamaha MGX12W features:

• 12-channel digital mixer with studio-quality audio and flexible routing

• 12 non-motorized faders, 4.3-inch touchscreen and 5 control knobs

• 4 MGX microphone preamps on Mic/Line combo inputs

• 4 headphone outputs for extended monitoring

• 12 mix inputs with mono and stereo channels, Sound Pad, 2 FX channels and extensive bus structure

• 18-in / 18-out USB audio interface plus 2-track recording and playback via Sub-port

• Bluetooth audio input for wireless integration

• 8 adjustable pads for sound FX and functions

• internal 16-track recorder on microSD card with 2-channel playback

• DSP with digital effects and latency-free monitoring

• Auto Gain, Clip Safe, Simple/Standard mode and Scene Recall

• supplied with Steinberg production software

Yamaha MGX12 W specifications:

• digital mixer, 12 channels
• color: white
• 4x inputs with microphone preamplifier
• 4x line inputs, XLR/6.35 mm combo, 4 x 6.35 mm
• 2x dual RCA stereo inputs
• 2x XLR outputs
• 6x direct outputs 6.35 mm TRS jack
• 4x 6.35 mm TRS jack headphone outputs
• USB: 2 x USB-C
• 12 faders
• 4,3 inch touch screen
• storage: microSD card slot
• software: Cubase AI, WaveLab Cast LE, Basic FX Suite and Steinberg Plus software bundle
• power supply: 16 V DC mains adapter
• manufacturer item number: MGX12 W
