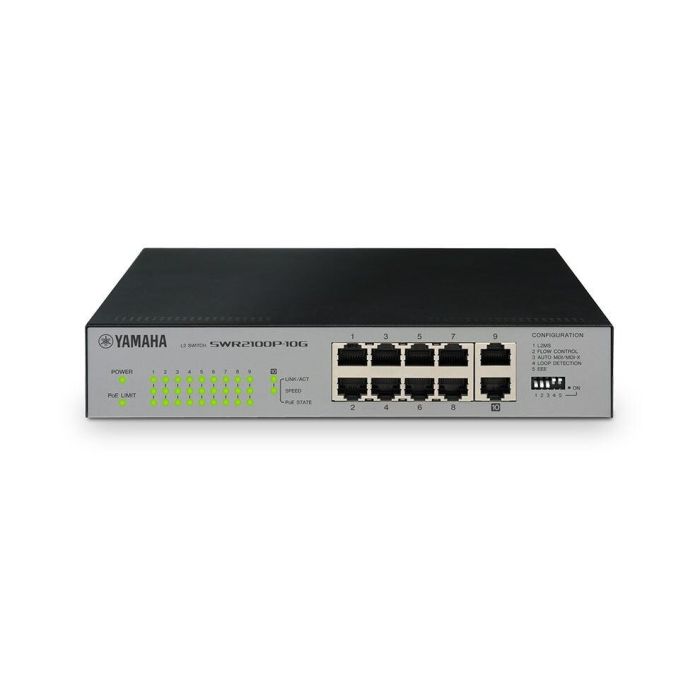

Yamaha SWR2100P-10G

The Yamaha SWR2100P-10G is a professional network switch that you can use for Dante applications. E.g. the combination of a digital mixer and Dante network equipment, such as wireless microphone receivers, media players or stageracks. This switch is specially designed for Dante application and therefore very reliable. Connect and work! Advantage is that this switch also has a fixed power connection with an IEC device plug, so no separate power adapter.

Via the Yamaha LAN Monitor software for Windows, you keep an eye on the entire network status and see the topology of your system at a glance. You can take snapshots of the current configuration and the SWR2100P-10G then automatically monitors your settings and alerts you when changes are made. Thanks to the comprehensive device ID with icons, labels and comments, you can instantly recognize connected Dante devices. Network troubleshooting also becomes easier: you can reboot jammed devices remotely.

Yamaha SWR2100P-10G features:

• professional Dante audio switch
• delivers audio, control signals and power (PoE) to Dante devices over the network
• works with the Yamaha LAN Monitor software for comprehensive network monitoring
• provides a clear overview of the entire network structure
• takes snapshots of network status and notifies of changes
• provides clearly recognizable device ID with icons, labels and comments
• simplifies troubleshooting with remote restart for unresponsive devices

Yamaha SWR2100P-10G specifications:

General:

• LAN ports: IEEE802.3 (10BASE-T/100BASE-TX/1000BASE-T)
• number of ports: 10
• communication mode: auto negotiation
• connector type: RJ-45
• polarity: automatic detection of straight/cross or fixed set to straight

PoE:

• ports with PoE power supply: 9 (ports 1-9)
• PoE standards: IEEE 802.3at
• power supply system: alternative A
• maximum power supply per port: 30 W
• maximum power supply total: 70 W
• compatible devices: PoE devices according to IEEE 802.3af or IEEE 802.3at

Switches & indicators:

• switches: configuration switches (L2MS, flow control, auto MIDI/MIDI-X, loop detection, energy save mode)
• indicators: power, PoE limit, link/act, speed, PoE state (x31)
• mac address: also listed on label on top

Power supply:

• mains voltage: AC 100-240 V, 50/60 Hz
• power consumption: 90 W

Dimensions & weight:

• width: 220 mm, height: 40.5 mm, depth: 250 mm
• weight: 1.8 kg

Included:

• manual
• power cord
• strain relief for power cord
• rubber feet
