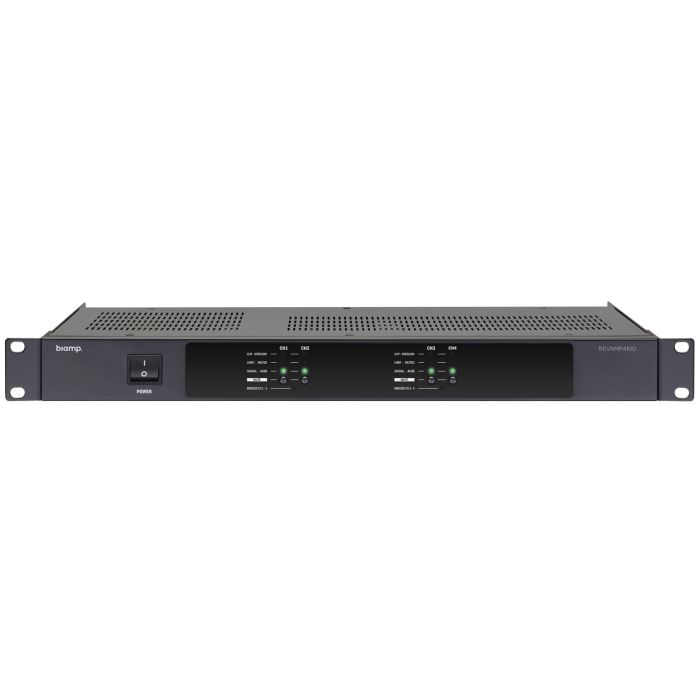

Biamp REVAMP4100

The Biamp REVAMP4100 is a 4-channel digital power amplifier with an output of 4x 100 Watts at 4 Ohms.

You can easily bridge the amplifier to 2x 240 Watts at 8 Ohms. This Class D amplifier is convection cooled, i.e. without built-in fans, making the amplifier completely silent and also extremely resistant to dust.

The Biamp REVAMP 4100 has multiple speaker and amplifier protection circuits built in to protect current and DC, avoid excessive temperatures and prevent input overloads. While setting the gain for the inputs, the LED indicator on the rear panel is useful for making a quick and easy adjustment. The amplifier has connections with balanced and unbalanced inputs on euroblock or RCA, pass-through outputs on RCA and speaker outputs on euroblock. The amplifier has a built-in galvanically isolated output transformer, which prevents external influences and/or interference.

The REVAMP is compact thanks to its slim 1HE housing. Its lightweight design with no buttons on the front makes the amplifier one of a kind and the ideal choice for small and medium-sized multi-zone audio installation projects.

Inputs:

• 4 unbalanced inputs on RCA with pass-through

• 4 balanced inputs on euroblock

• volume controls for input level on all inputs

• individual mute buttons per channel

• LED indicators for front and rear overload indication


Outputs:

• 4x 100 watts @ 4 ohms
• 4x 50 Watt @ 8 Ohm

• 2x 200 Watt @ 8 Ohm (bridge)
• 4 outputs

• Euroblock speaker connections


Specifications:

• REVAMP4100
• 19" power amplifier with class D

• 1 HE height

• dimensions: 44 x 239 mm (height x built-in depth)

• power supply: 115-254 VAC

• weight: 3.5 kg.
• Biamp article no.: 912.0655.900
