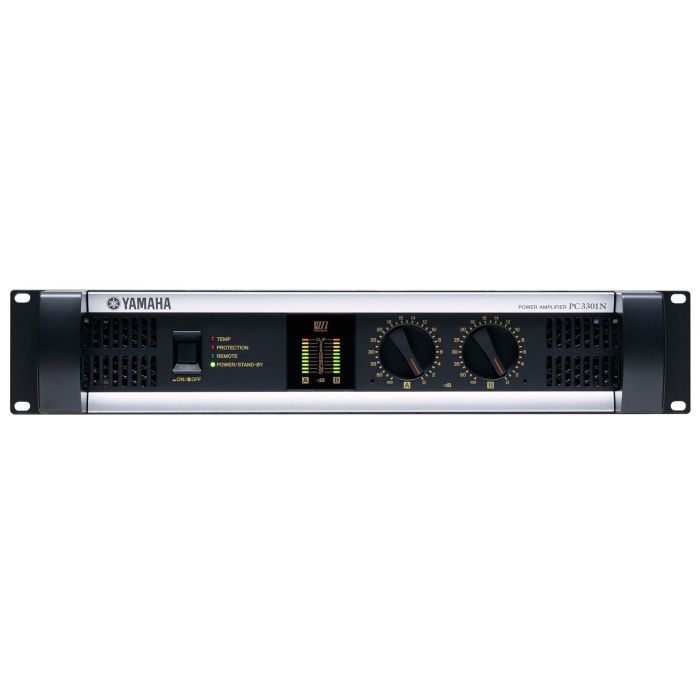

Yamaha PC3301N

The Yamaha PC3301N amplifier has a solid low, a rich midrange and beautifully defined highs. In addition, this amplifier is high quality, reliable and versatile even for professional applications! What else is great about this amplifier? A fast response, maximum sound quality with minimum distortion and stability even with a limited power supply.

Part of the latest generation in Yamaha's flagship PC series, this amplifier had to deliver the same clear separation and fast response while providing a higher level of sound quality. Yamaha's sound engineers examined every detail of sound quality leading to groundbreaking innovations in circuits and internal wiring. And as icing on the cake, new mounting methods for the circuit boards absorb all unnecessary vibrations.

The combination of all these factors makes the sound clear, transparent, yet powerful and robust. The Yamaha PC3301N offers a dynamic, deep and detailed sound with exceptional balance. Highly recommended, and if you don't believe us you can come and listen at our store!

• Excellent linear power with low distortion

• New generation EEEngine technology delivers exceptional power efficiency

• Reliable rugged design with 2U size and ultra-light weight (less than 13 kg)

• Dual heat sinks and variable speed fans for consistent operation

• Network capability available with ACU16-C and NHB32-C via Cobranet

• Input/output connections via XLR, Euro-Block and Speakon connectors

• 31-step level controllers for precision calibration

• 10-point LED meters for precise monitoring

• Safety cover to prevent tampering
• Power bandwidth 10Hz-40kHz (THD+N+0.5%)

• Total harmonic distortion less than 0.1% (20Hz-20kHz; half power)

• Intermodulation Distortion Less Than 0.1% (60Hz:7kHz=4:1; Half Power)

• Frequency Response +0dB 20Hz-20KHz

• S/N Ratio 101dB (DIN AUDIO)

• Damping Factor More than 500
• Voltage Gain 32dB

• Maximum Input Voltage +22dBu

• I/O Connections

• Line input/output 2x XLR-3-31 type, 2x Euroblock connector

• Speaker outputs 2x speakON, 2x 5-way binding post

• Control ports RJ45

• Protection circuit

• Load protection Power switch on mute, DC fault (amplifier switches off automatically), Clip limitation (THD ≥ 0.5%)

• Amplifier protection Thermal (heat sink temperature ≥ 90°C; return automatically), VI limiter (RL ≤ 1ohm)

• Power supply 120V 60Hz

• No-load power consumption 40W

• Weight: 12.5kg

• Dimensions: 88mm x 480mm x 456mm
