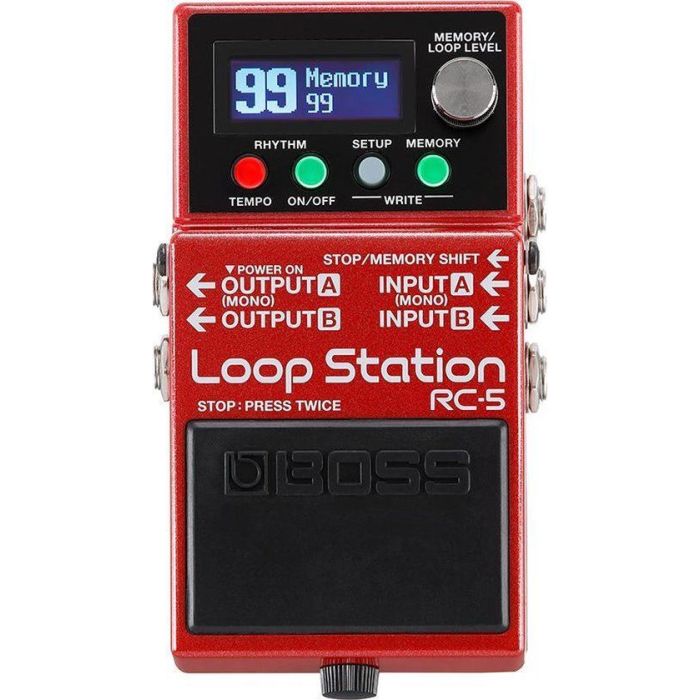

Boss RC-5

Step up to the RC-5 and give your pedalboard maximum looping range. Record audio in the best 32-bit quality. Navigate parameters and monitor loop status with the backlit LCD. And use the comprehensive controls via the control jack and TRS MIDI I/O. With over 50 rhythms, 13 hours of stereo recording, 99 phrase memories and more, the compact RC-5 puts a deep musical powerhouse at your feet.

Super Sound Quality
With best-in-class 32-bit AD/DA and 32-bit floating-point processing, the RC-5 captures your personal sound faithfully and keeps loops crystal clear: even with multiple overdubs. And with 13 hours of stereo recording time, there's plenty of room for extensive creative explorations

Windows to your world
The RC-5 features the most advanced interface available today in a compact looper pedal. The LCD screen lets you keep an eye on loop status while performing; including backlighting that changes color to indicate recording, overdub and playback status. And combined with the multi-function parameter knob, you can quickly and easily navigate rhythms, kits, system settings and more in the heat of the moment

Move and Groove: Forward and Backward
With 57 preset rhythms and seven different drum kits, the RC-5 is ready to take running and practice sessions to the next level, with inspiring grooves for any style. For each rhythm, A/B variants can be selected from the panel, or controlled via MIDI while performing. The RC-5's looper engine also has a cool reverse function, allowing you to infuse your music with fresh timbres

Record, practice and perform
The RC-5 offers 99 phrase memories, so you can save loops as quickly as you make them. In addition to audio, a phrase memory also contains the selected rhythm and kit, so everything is ready to play when you call up the memory. Loop audio can be backed up to a computer via USB. And with WAV import via BOSS Tone Studio, the RC-5 becomes a pedalboard playback hub for lesson material, jam tracks or background music for your next gig.

- Advanced BOSS looping features in a compact size
- Best-in-class sound with 32-bit AD/DA and 32-bit floating point processing-
Stereo looper engine with 13 hours (!) recording
time- LCD with multi-color backlight for viewing loop status and editing
parameters- Reverse function to give loops interesting textures-
Seven different drum kits and 57 preset rhythms with A/B variations-
Support for extended control via external footswitches, an expression pedal, or MIDI-
Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adapter cable sold separately
)- Built-in storage for 99 phrase memories-
Backup and load WAV loops via USB

Specifications:

• Sampling Frequency: 44.1 kHz

• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point

• Recording/Playback Number of Track: 1

• Data Format: WAV (44.1 kHz, 32-bit float, stereo)

• Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

• Rhythm Type: 57 Patterns x 2 Variations

• Rhythm Kit: 7 types

• Effect: Reverb (only for rhythm part)-Memory: 99

• Nominal Input Level: INPUT A/MONO, B: -20 dBu

• Input Impedance: INPUT A/MONO, B: 1 M ohm

• Nominal Output Level: OUTPUT A/MONO, B: -20 dBu

• Output Impedance: OUTPUT A/MONO, B: 1 k ohm

• Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater

• Bypass: Buffered bypass

• Controls: MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch

• Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)

• Connectors: INPUT A/MONO, B jacks: 1/4-inch phone type, OUTPUT A/MONO, B jacks: 1/4-inch phone type, STOP/MEMORY jack: 1/4-inch TRS phone type

• USB port: USB B type

• MIDI (IN, OUT) jacks: stereo miniature type

• DC IN jack

• Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22)

• AC adaptor (PSA series: sold separately)


Dimensions:
73 (W) x 129 (D) x 56 (H) mm2-7/8
(W) x 5-1/8 (D) x 2-1/4 (H) inches

Weight:
405 gr. (excluding battery
)450 gr. (including battery)

Accessories:
Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22)
