LD Systems Stinger Sub 15 G3

This highly professional passive subwoofer is designed for absolute, long-term reliability. The STINGER® SUB 15 G3 delivers 600 watts of continuous power; its maximum sound pressure level is 126 dB. Its specially developed 15" woofer emits even the deepest bass sounds with extremely powerful and clear contours.

• Passive 15" bass-reflex PA subwoofer

• 600 watts RMS

• 127 dB maximum sound pressure level

• Deep bass up to 40 Hz thanks to 15" woofer with special design

• Speaker In, Satellite Out, Sub Thru connections

• Can be used horizontally or vertically

• Enclosure made of 18 mm birch plywood with extremely durable polyurea coating

• Easy handling thanks to ergonomic handles and stacking dimples

• Shock-resistant front grille for optimum protection of the loudspeaker.

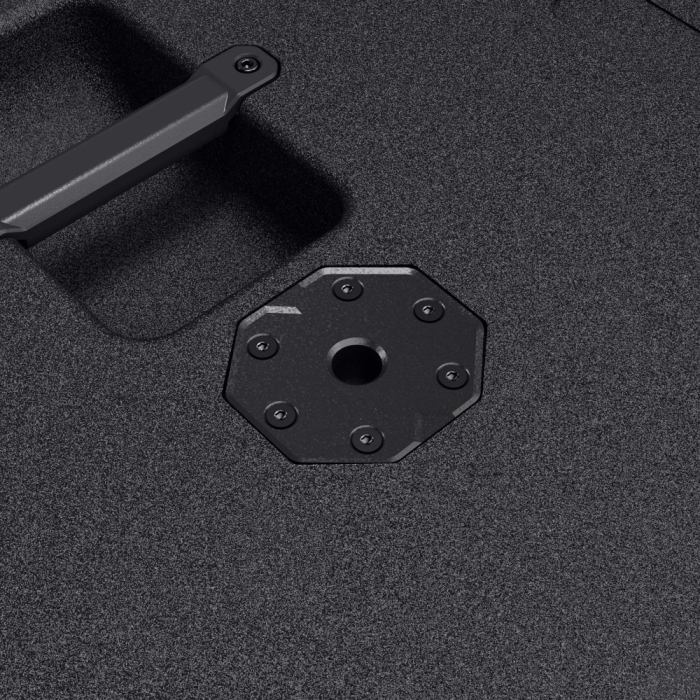

• For use with M20 threaded extension tubes

• Clever transport accessories

Designed as a true all-round workhorse, the strongly supported bass reflex cabinet can be used both horizontally and vertically. Made of robust 18 mm birch plywood, it offers exceptional stability and durability thanks to its extremely resilient polyurea coating. It features a steel grid, threaded insert for M20 extension tubes, stacking pits and ergonomic handles. The STINGER® SUB 15 A G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Specifications:

• Type: Passive

• Dimensions low/mid woofer: 15 "

• Woofer dimensions (mm): 381 mm

• Woofer magnet: Ferrite

• Woofer brand: Custom made

• Woofer voice coil: 3 "

• Woofer voice coil (mm): 76.5 mm

• Load (RMS): 600 W

• Peak power: 1200 W

• Frequency Range: 40 - crossover

• SPL (1W/1m): 99 dB

• Max. SPL: 127 dB

• Impedance: 8 Ohm(s)

• Speaker inputs: 1

• Speaker input connections: Speakon-compatible

• Speaker outputs: 1

• Speaker output connections: Speakon-compatible

• Speakers per amplifier channel (DSP44/45K): 3

• Enclosure material: 18 mm plywood

• Enclosure surface: Polyurea

• Cabinet design: Bass reflex

• Enclosure width: 567 mm

• Height: 477 mm

• Depth: 624 mm

• Weight: 29.7 kg
