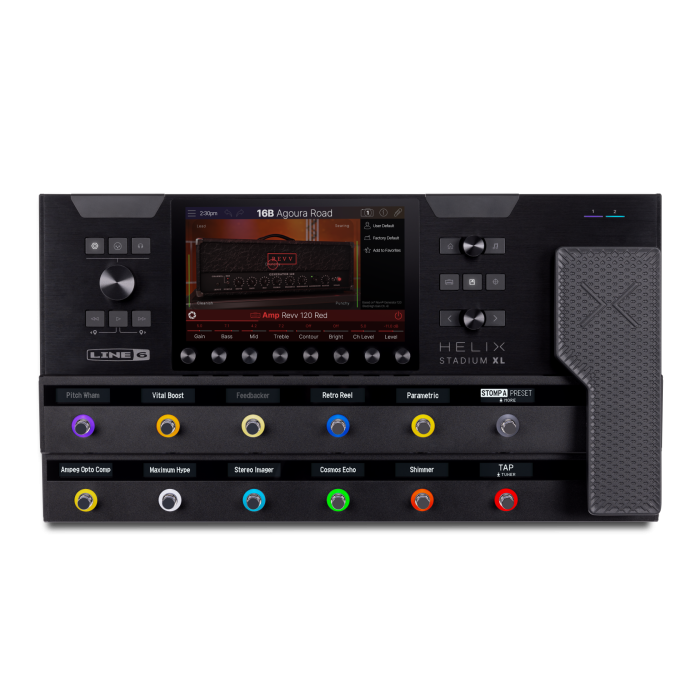

Line 6 Helix Stadium XL Floor

Integrate the Line 6 Stadium into your existing setup and take your musical capabilities to a new level with next-generation guitar technology.

Powered by a high-performance DSP engine, this all-in-one solution is designed to seamlessly integrate with your existing music gear, allowing you to easily connect a wide range of instruments, amplifiers, cabinets, mixers, and even stage lighting for epic performances!

The Line 6 Stadium XL isn’t just an advanced multi-FX & IR system equipped with an entire library of next-generation tones; you can control your sound and setup from this single device and use the built-in DAW to record your band, mix your audio, or even mute your instrument so you can play over a track for unlimited creative performance options.

The Stadium XL features a built-in expression pedal that lets you control multiple effects and is equipped with 12 OLED scribble strips so your patch layout is always visible.

• All-New Agoura Modeling Method—Agoura captures the detailed behavior of your gear at new levels—it’s as if your gear is literally “talking back” to the Helix Stadium to achieve the most efficient, most accurate emulation ever.
• Integrated recording studio—Record multiple “tracks” via the integrated DAW system and even record other instruments, just as you would when recording your next hit single with your band.
• Live recording and playback—Want to play back your tracks live? Just select the track you’ve recorded and mute it to play it back instantly.
• HYPE control—Adjust the control to switch between ultra-authentic and idealized amp sounds!
• Use Helix/HX Presets - Use your favorite presets from Helix/HX products.
• 8" high-resolution touchscreen - Use the intuitive 8" touchscreen to create your new favorite sounds and signal paths or to navigate the built-in DAW.
• Wireless editing, control, and updates - With built-in Wi-Fi and Bluetooth, you can remotely edit, control, and update the processor.
• Lightweight and easy to transport—The Helix Stadium and Stadium XL are smaller, lighter, and easier to transport than their predecessors, whether for rehearsals, performances… or even stadiums.

[[READMORE]]

All-in-one

The Line 6 Stadium isn’t just another multi-effects unit. It’s a professional, studio-quality audio interface, modeler—you name it.

With dual variable-impedance inputs, an XLR mic preamp, S/PDIF I/O, four effects loops, external expression pedal support, amp switching, and drum trigger inputs, Nexus expansion, USB-C, USB-A, and removable 32GB microSD storage, the Stadium delivers tremendous flexibility on stage or in the studio.

Record multiple tracks using the integrated DAW system and even record other instruments, just as you would when recording your next hit single with your band. Want to play over your tracks live? Just select the tracks you’ve recorded and mute the tracks you want to play yourself. But that’s not all...

You can use the Line 6 Stadium’s multiple inputs, Wi-Fi, Bluetooth, the Line 6 Showcase automation/playback engine, and more to connect and control stage lighting, live mixers, and cabs in sync with specific sections of your recorded music, allowing you to create your own shows with total control. In a perfect world, you’d want to play live without having to use a single footswitch, but now you can assign your favorite tones and recordings to specific sections of your tracks to play with complete freedom.

Agoura—Responsiveness Taken to the Next Level

Agoura is Line 6’s new modeling methodology, setting a new standard for authentic amp tone and responsiveness. Agoura allows you to sample amps and pedals, adding nuances to make your recordings feel “more real” than ever before. Model circuit feedback and capture the dynamics of your playing volume for added emphasis. Agoura captures the detailed behavior of your gear at new levels; it’s as if your gear is literally “talking back” to the Helix Stadium to achieve the most accurate, lifelike recording ever.

Learning as You Go

Instead of having to navigate confusing menus, the UI provides tutorials so you learn more the more you use it. You can dive in and see just how much depth Line 6 has put into creating one of the most intuitive guitar products, one that showcases what’s now possible in guitar technology—no more manuals!

Showcase

Many bands these days work with click tracks and backing tracks. A click track is a very powerful tool for keeping your songs tight and preparing your show in a more structured way. Backing tracks give your songs a whole new dimension. Adding just that piano line, or having that synth lay down a nice chord in the background while the band plays the essential parts, can elevate an amateur band to nearly professional level.

The Helix Stadium’s Showcase mode makes this very accessible, replacing the often-unreliable laptop with an interface. You load your multitracks via the desktop editor, and when you turn on the Helix Stadium, it automatically loads the track. Mix the tracks to your liking, and assign which tracks should come out of which outputs. This way, you can easily route the backing tracks through the XLRs, while sending the talkback and click signals from output 3 to the monitors and in-ears.

Using flags, you can then trigger your presets, snapshots, and MIDI signals at specific moments in the song. So your Helix Stadium will automatically switch to, say, a lead sound when it’s time to play the solo. It’s even possible to control the light show this way.

So for anyone who enjoys programming this, you can pre-program your entire performance—backing tracks, clicks, talkback, snapshots, MIDI, and lighting—and just go for it. You simply press play and don’t have to worry about a thing afterward. Pure performance.

Continuous Updates

Line 6 is now changing the way its equipment is updated and offers continuous updates to keep fueling your creativity. You can even set the Helix Stage to update wirelessly, so you have more time to play.

Should I buy the Line 6 Stadium or the Line 6 Stadium XL?

The Stadium XL has a built-in expression pedal that lets you control multiple effects and features 12 OLED scribble strips so your patch layout is always visible. The smaller Line 6 Stadium is lighter and easier to transport—perfect for carrying in the official Line 6 Stadium carrying case!

Specifications:

• Chassis: Two-piece extruded aluminum with folded steel base plate
• Modeling technology: Agoura modeling with Proxy clone engine
• Touchscreen: 8-inch high-resolution display
• Footswitch indicators: 12 OLED scribble strips with high-contrast display
• Expression pedal: Full control over volume and effects
• User interface: Focus view with contextual parameter editing
• DSP engine: Powerful processing for advanced signal chains
• Automation: Showcase automation and playback engine
• Software: Includes Helix Stage editing software
• Inputs: 2 variable-impedance instrument inputs (dynamic range of 126+ dB)
• Mic preamp: Studio-quality XLR input (128 dB dynamic range)
• Effects loops: 4 with 120+ dB dynamic range
• Expression pedal inputs: 4 external expression pedal jacks
• Amplifier control: 4 external amplifier control outputs
• Drum trigger inputs: 4 dedicated trigger inputs
• Digital I/O: S/PDIF in/out
• Expansion: Nexus port for Expand D10 and future peripherals
• Storage: Removable 32 GB microSD storage
• USB: USB-C and USB-A connectivity
• Wireless: Built-in Wi-Fi and Bluetooth
