Monster MP-SP6F

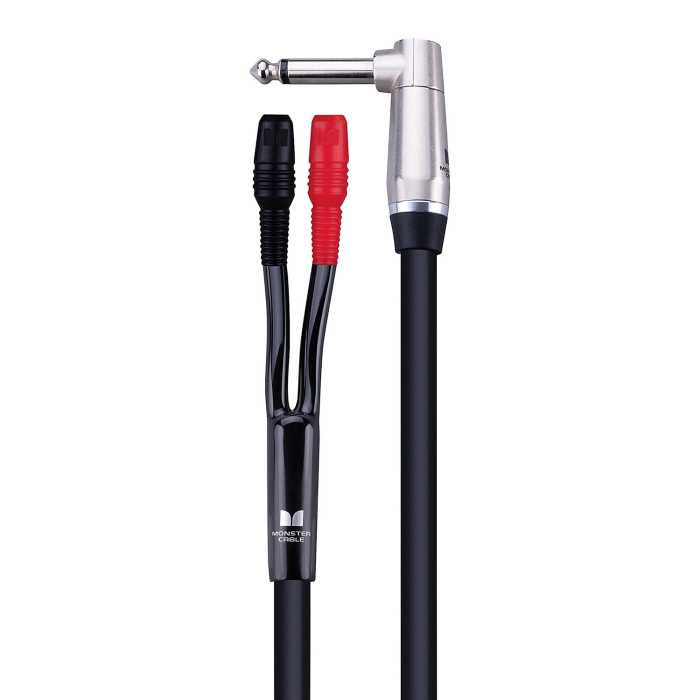

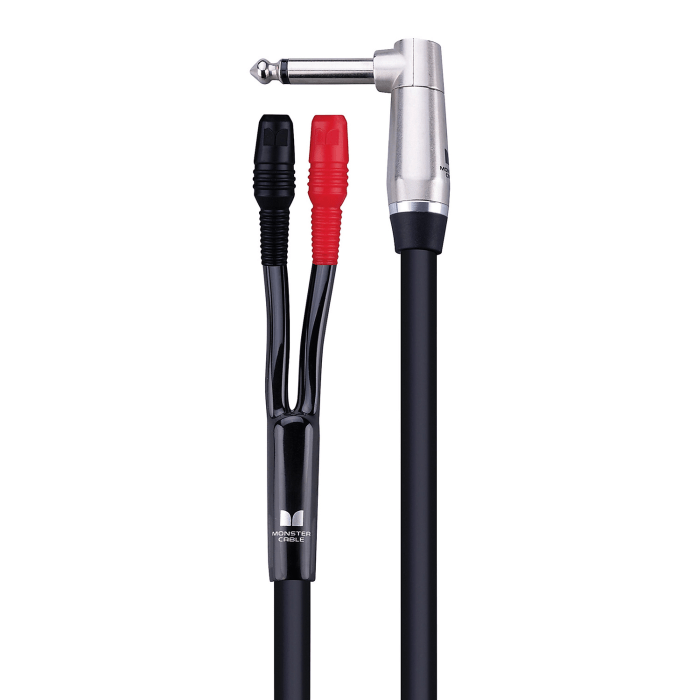

The Monster MP-SP6F Prolink Performer 600 is a special 1.8-meter speaker cable for combo amplifiers and speaker setups where an amplifier output with 6.35 mm speaker jack needs to be connected to a separate passive speaker via Faston quick-connect terminals. At one end, the cable has an angled 6.35 mm TS jack plug. On the other side are two color-coded female quick-connect terminals. With that, this cable is intended for situations where you connect the speaker output of a guitar or bass amplifier directly to the terminals of a passive speaker.

What do you use this cable for?
This cable is used for example with combo amplifiers where the amplifier section and the built-in speaker are connected with a separate cable. It can also be useful when repairing, replacing or modifying a combo amp, when the speaker itself has Faston connectors and the amplifier uses a 6.35 mm speaker output. Think guitar combos, bass combos or small amp/speaker setups where no ordinary jack-to-jack speaker cable or speakON cable will fit. Always check that your amplifier, speaker, impedance and power match. Connect this cable only to a speaker output and never to an instrument input, line-out, headphone output or mains power.

Angled 6.35 mm speaker jack
The angled 6.35 mm TS jack plug is useful for combo amplifiers and tight connection spaces. The plug protrudes less than a straight plug, reducing stress on the connection. The connector has a metal housing, nickel-plated contacts and collet strain relief for extra support at the transition from plug to cable.

Faston quick-connect terminals with color-coded
On the speaker side, the MP-SP6F is equipped with two female quick-connect terminals. These slide onto the connection tabs of a passive speaker. The red and black color coding helps to correctly connect plus and minus. Pay close attention to polarity, as connecting them incorrectly can affect the phase and playback of your speaker, especially when using multiple speakers at the same time.

[[READMORE]]

Made for speaker connections
This is a speaker cable and not an instrument cable. A speaker cable must be able to transmit power from an amplifier to a passive speaker. The Performer 600 series is made for musicians and engineers looking for a rugged cable for stage, studio, rehearsal room and repair or replacement situations on combo amplifiers.

MultiTwist cable construction
Monster uses a MultiTwist cable construction with copper conductor in this Performer 600 combo amp speaker cable. This construction is designed for stable transmission between amplifier and speaker. The cable is designed to reliably transmit the amplifier signal to the passive speaker without making the cable unnecessarily stiff.

Shielding and Isolation
The cable has a 95% braided copper shield, MicroFiber dielectric material and carbon-polymer shielding. This construction helps reduce interference, background noise and handling noise. This is especially nice in combo amplifiers and stage setups where power cables, transformers and signal cables are often close together.

Duraflex outer jacket for everyday use
The Duraflex outer jacket protects the cable from abrasion during use, transport, installation and maintenance. The cable remains easy to handle and is suitable for situations where the connection is regularly connected, disconnected or moved. This makes it useful for musicians, repairmen, backline technicians and rental companies.

Important when installing and using
Always turn off the amplifier before connecting or disconnecting this cable. Check that the Faston terminals are securely attached to the speaker lips and that the polarity is correct. Use the cable only for a passive speaker connection. If in doubt about impedance, load capacity or connection, it is wise to have it checked by a technician.

Monster MP-SP6F features:

• series: Prolink Performer 600
• cable type: combo amp speaker cable
• length: 1,8 meter
• connector 1: right-angle 6,35 mm TS jack plug
• connector 2: female quick-connect terminal pair
• connector design: 6,35 mm speaker jack to Faston terminals
• contacts: nickel plated
• strain relief: collet strain relief
• terminal color: red and black
• construction: MultiTwist cable construction
• conductor: copper conductor
• shielding: 95% copper braided shield
• additional shielding: carbon polymer shielding
• insulation: MicroFiber dielectric material
• outer jacket: Duraflex
• color: black
• application: connection between speaker output of amplifier and passive speaker with Faston connections
• suitable for: combo amplifiers, guitar combos, bass combos, backline, repair, replacement, studio, stage and rehearsal room
• type: MP-SP6F / alternative article code: 60007
• manufacturer code: P600-SC-6WW
• package weight: approx. 0.33 kg
• package dimensions: approx. 21.0 x 20.3 x 5.1 cm
