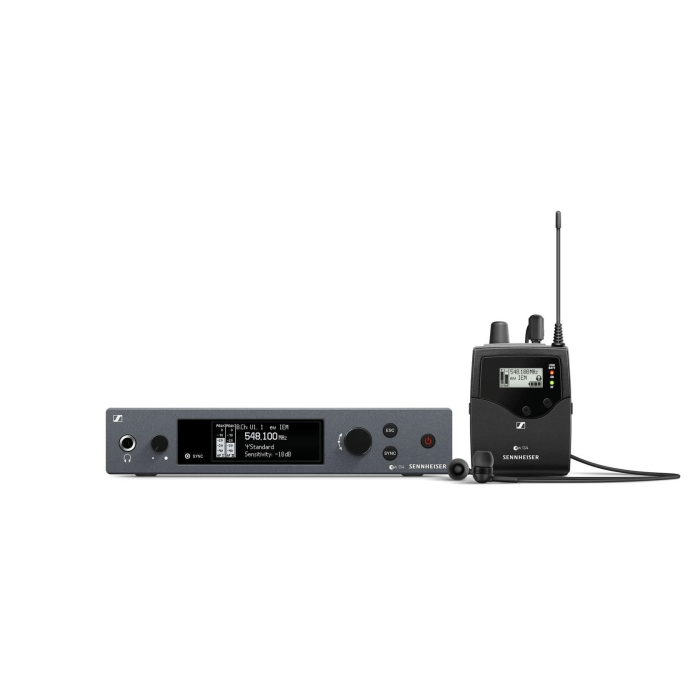

Sennheiser EW IEM G4-A

The Sennheiser EW IEM G4 is a complete in-ear transmitter system in frequency band A (516 - 558 MHz). The system consists of a rugged EK IEM G4 bodypack receiver, SR IEM G4 transmitter and earphone (IE 4 in ear). You easily synchronize your receiver with your transmitter thanks to the convenient infrared system. The system has a bandwidth of 42 MHz (626-668 MHz) and you can select 1,680 frequencies on as many as sixteen channels. The system can be monitored via the Sennheiser WSM software.

Specifications:

• Sennheiser EW IEM G4-A wireless in-ear set
• frequency band A: 516 - 558 MHz
• compatible with WSM software
• synchronizes by means of infrared
• bandwidth: 42 MHz
• maximum range: 100 meters (unobstructed view)
• number of channels: 6 banks of 16 channels
• RF Mute on / off
• mode: stereo, mono and focus mode
• engineer mode: the sound engineer can listen in remotely

  SR IEM G4 transmitter
• bright OLED display

• metal housing

• adjustable RF power: 10, 30 and 50 mW

  connections:
• 2x XLR/TRS combi (input, L/R)

• 2x 6.3 mm TRS jack (loop out, L/R)

• RJ45 (Ethernet)

• BNC (antenna signal and power supply)

• power adapter

• dimensions: 202 x 212 x 43 mm (LxWxH)

• weight: 980 gr

  EKIEM G4 bodypack

• power: 2x 100 mW

• impedance: 32 ohms

• battery life: 4-6 hours

• power supply: 2 AA batteries or BA 2015 battery available separately

• dimensions: 24 x 64 x 82 mm (LxWxH)

• weight: 125 gr (including batteries)

  The box includes:

• 1x SR IEM G4 transmitter

• 1x EK IEM G4 bodypack

• 1x IE 4 in-ears

• 1x GA 3 rackmount set

• aC adapter for receiver

• 2 AA batteries

• antenna

• user manual
