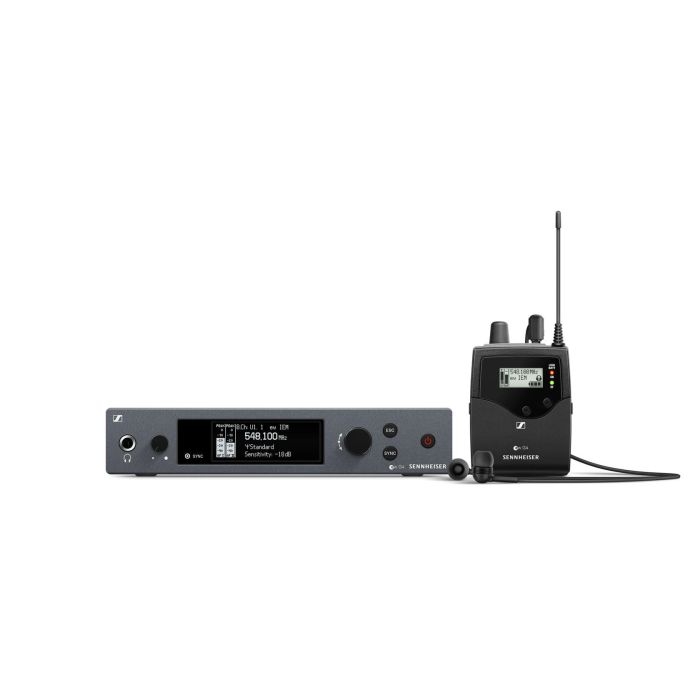

Sennheiser EW IEM G4-B

The Sennheiser EW IEM G4 is a complete in-ear transmitter system in frequency band B (626-668 MHz). The system consists of a rugged EK IEM G4 bodypack receiver, SR IEM G4 transmitter and earphone (IE 4 in ear). You easily synchronize your receiver with your transmitter thanks to the convenient infrared system. The system has a bandwidth of 42 MHz (626-668 MHz) and you can select 1,680 frequencies on as many as sixteen channels. The system can be monitored via the Sennheiser WSM software.

Specifications:

• Sennheiser EW IEM G4-B wireless in-ear set
• frequency band B: 626-668 MHz
• compatible with WSM software
• synchronizes by means of infrared
• bandwidth: 42 MHz
• maximum range: 100 meters (unobstructed view)
• number of channels: 6 banks of 16 channels
• RF Mute on / off
• mode: stereo, mono and focus mode
• engineer mode: the sound engineer can listen in remotely

SR IEM G4 transmitter
- bright OLED display
- metal housing
- adjustable RF power: 10, 30 and 50 mW
connections:
- 2x XLR/TRS combi (input, L/R)
- 2x 6.3 mm TRS jack (loop out, L/R)
- RJ45 (Ethernet)
- BNC (antenna signal and power supply)
- power adapter
- dimensions: 202 x 212 x 43 mm (LxWxH)
- weight: 980 gr

EKIEM G4 bodypack
- power: 2x 100 mW
- impedance: 32 Ohms
- battery life: 4-6 hours
- power: 2 AA batteries or separately available BA 2015 battery
- dimensions: 24 x 64 x 82 mm (LxWxH)
- weight: 125 gr (including batteries)

Supplied in the box:
- 1x SR IEM G4 transmitter
- 1x EK IEM G4 bodypack
- 1x IE 4 in-ears
- 1x GA 3 rackmount set
- mains adapter for receiver
- 2 AA batteries
- antenna
- user manual

Please note the return policy for this product. This is a hygiene product.
