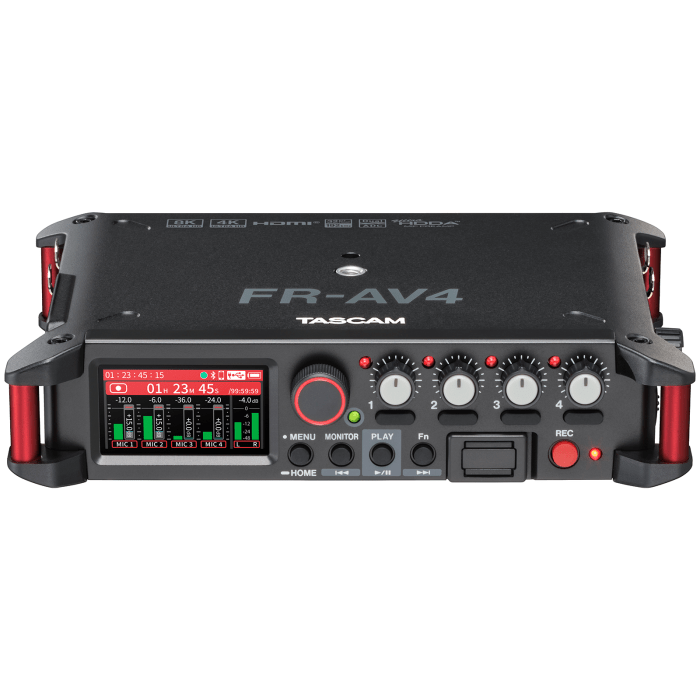

Tascam FR-AV4

Tascam FR-AV4 32-bit field recorder and timecode generator is designed for videographers and filmmakers seeking a complete and reliable solution for mobile audio recording. Thanks to 32-bit float recording via four XLR/TRS combo inputs, you capture audio with wide dynamic range and minimal distortion. Support for SDXC cards up to 512 GB makes long recording sessions outside the studio hassle-free. Additional features such as a 2-inch LCD screen, a 3.5mm microphone input, built-in timecode generator and a lightweight but sturdy fiberglass housing make this recorder suitable for a variety of camera setups. Power can be supplied via AA batteries or USB bus power, keeping integration into virtually any workflow simple.

Connect when you want
With four XLR/TRS combo inputs and an additional 3.5 mm stereo input, quickly connect external equipment and start recording right away. Support for wireless microphones, lavaliers and other audio sources ensures broad compatibility within your setup. Extremely quiet operation with an EIN of -127 dBu and Ultra HDDA preamps guarantee clear sound quality. 32-bit float recording also ensures wide dynamic range and minimal distortion. The built-in 2-inch LCD gives a clear overview of your recording, so you always keep control of all important parameters.

Built-in timecode generator
For video productions, timecode is essential to keep projects efficient and in sync. This recorder features an integrated timecode generator and a 3.5mm input and output for easy interfacing with DSLR cameras. With full Jam-Sync support, you'll work seamlessly with existing external timecode equipment. With the optional AK-BT2 Bluetooth adapter (not included), wireless timecode synchronization is also possible in conjunction with Atomos UltraSync BLUE systems. This keeps recordings consistent and clear no matter where you are filming.

[[READMORE]]

Tascam FR-AV4 features:

• 32-bit float recording for wide dynamic range without distortion
• support for 48 kHz, 96 kHz and 192 kHz sampling frequencies
• built-in timecode generator for accurate synchronization
• 4 XLR/TRS combo inputs with Ultra HDDA preamps
• 3.5 mm stereo input for wireless microphones and lavaliers
• wireless audio monitoring via optional AK-BT2 Bluetooth adapter
• SDXC card slot supporting up to 512 GB
• 2 inch LCD screen for real-time display of recording information
• light and sturdy fiberglass housing
• power via AA batteries, USB or optional AC adapter

Tascam FR-AV4 specifications:

• audio interface: 6 x 2 USB 2.0
• A/D resolution: 32-bit / 192 kHz
• simultaneous recording tracks: 6 (4 inputs, 2-channel master mix)
• analog inputs: 4 x XLR / jack combo, 1 x 3.5 mm (external)
• analog output: 1 x 3.5 mm TRS (line)
• digital inputs: 1 x HDMI 2.1 (type A)
• digital outputs: 1 x HDMI 2.1 (type A)
• headphone output: 1 x 3.5 mm TRS
• memory: 1 x SD / SDHC / SDXC slot (up to 512 GB)
• file formats: WAV (BWF), MP3
• USB: 1 x USB-C 2.0 (mass storage, audio, power)
• Bluetooth: via AK-BT2 Bluetooth adapter (sold separately)
• clock I/O: 2 x 3.5 mm (timecode in, out)
• software: Tascam Recorder Connect app (Android 12/13/14, iOS 16/17)
• additional features: built-in timecode generator
• power: 4 x AA batteries, USB power supply or Tascam PS-P520U power adapter (sold separately)
• battery life: up to approximately 17 hours with lithium-ion batteries without phantom power
• mounting points: 2 x 1/4-20 (top and bottom)
• height: 4.19 cm
• width: 18.39 cm
• depth: 12.98 cm
• weight: 0.75 kg
• manufacturer number: FR-AV4
