Tascam ML-4D-OUT-E

The Tascam ML-4D/OUT is an analog output unit that converts four Dante input signals to four line outputs. In addition, it also supports four-channel Dante output, allowing the use of virtually any audio source within an existing Dante network.

The analog outputs are available with Euroblock connectors (ML-4D/OUT-E) or XLR connectors (ML-4D/OUT-X), and the unit can be used for a variety of applications. This is the version with Euroblock connectors.

A key advantage of this series is the built-in DSP processor in each unit. This provides not only mix functions and EQ, but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation. As a result, even small systems function completely without additional signal processing or mixing equipment. From microphone input to output to active speakers or recording equipment - the Dante Compact Processor Series can be used to build a complete small-scale audio system.

Remote control is possible via two software applications for Mac, Windows, iOS and Android: Tascam DCP Connect for configuration and Tascam EZ Connect for end users. Both are easy to use and are included. The ML-4D/OUT also offers the ability to control the output level via GPI.

All models can be powered via PoE or an optional AC adapter. Thanks to power daisy-chaining, two units, mounted side by side in a rack, can be powered by one power adapter.

Tascam ML-4D/OUT features:

• 4 Dante inputs to 4 line outputs
• version with Euroblock connections
• built-in DSP processor with EQ, dynamic processing, auto-ducking, routing and noise compensation
• control via Tascam DCP Connect (configuration) and Tascam EZ Connect (end user)
• output level control via GPI
• power via PoE or optional AC adapter
• power daisy-chaining for two units in one rack
• 4 balanced line outputs
• Dante interface for transmission of audio signals over an Ethernet network
• 2 LAN connections for Dante daisy-chaining
• flexible routing via "Dante Controller" software
• support for AES67 for connection to Ravenna and other compatible audio network technologies
• up to 96 kHz sampling rate and 24-bit resolution
• front panel indicators for operating status and current sampling rate
• signal indicators for analog output signals
• half-rack enclosure (1HE)
• mounting brackets included, including for mounting under a tabletop bag

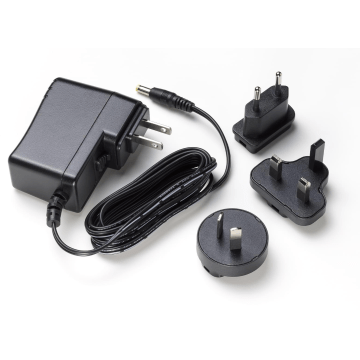

Please note that the ML-4D is supplied without a power adapter. This is available separately.
