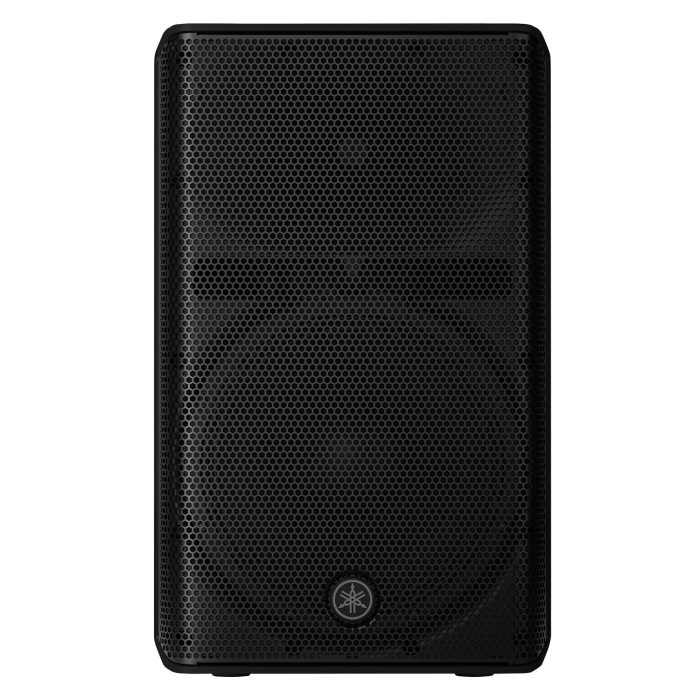

Yamaha DXR12 mk3

The Yamaha DXR12mk3 is an active 12-inch speaker for users seeking power, control and easy operation in one compact speaker. This third generation in the DXR series is designed for modern live sound, mobile PA systems, rental, fixed installations and stage use. With a newly developed 12-inch LF woofer, a 1.75-inch HF compression driver and a 2000 watt Class-D amplifier, the DXR12mk3 delivers clear, powerful sound with a frequency range of 50 Hz to 20 kHz. dxr1-Use the Yamaha DXR12mk3 as a front-of-house speaker, floor monitor or stage side fill. The speaker fits well with live bands, DJs, presentations, corporate events, schools, churches, hospitality and rental companies. Thanks to the built-in DSP, FIR-X tuning and Drive Motion Calibration, the sound remains tight, clear and intelligible even when the speaker is used at higher volume levels. Bluetooth audio streaming, dual inputs, an LCD screen and control via the D-Remote app provide quick control during set-up, sound check and use.

Powerful 12-inch speaker for live sound and mobile PA
The Yamaha DXR12mk3 offers a strong balance of size, sound pressure and low-end reproduction. The 12-inch woofer provides more body than a compact 10-inch speaker, while the enclosure still remains easily transportable. The 1.75-inch HF driver delivers clear treble and good speech intelligibility. With a maximum sound pressure of 134 dB SPL, the DXR12mk3 has enough power for vocals, instruments, DJ sets, backing tracks and speech amplification. The 2000 watt Class-D amplifier delivers plenty of headroom, so peaks in music and vocals are well handled. This keeps the speaker sounding convincing during live performances, presentations and events. The 90° x 60° spread angle provides wide and usable coverage in halls, on stages and in mobile applications.

[[READMORE]]

DSP with FIR-X tuning and Drive Motion Calibration
The DXR12mk3 uses internal DSP processing at 96 kHz. This processing helps keep the sound clear, controlled and accurate. Yamaha's Advanced FIR-X Tuning uses linear phase FIR filters for the crossover network and correction EQ. This makes the LF and HF drivers more closely matched and reduces phase distortion around the crossover point. Drive Motion Calibration corrects the movement of the LF driver via a proprietary DSP algorithm. The woofer follows the input signal more accurately, keeping the low end tighter and better controlled. This is especially useful for live vocals, bass-rich music, DJ applications and situations where definition is important.

Easy control with LCD screen and D-Remote app
On the back of the Yamaha DXR12mk3 is a clear LCD screen with encoder. This lets you quickly adjust settings such as presets, PEQ, delay and routing. You can store up to eight user presets, so you can quickly recall settings for fixed locations, bands or applications. Bluetooth lets you stream audio and control the speaker wirelessly with the D-Remote app for iOS and Android. The app gives access to level, delay, equalizer, crossover, feedback suppression, ducker, identification, panel lock and scenes, among others. You can also check limiter status, temperature and error messages. Up to ten devices can be paired, with group control for level and mute.

Suitable as a PA speaker, monitor and installation speaker
The Yamaha DXR12mk3 has DSP modes for different applications. FOH/MAIN is intended for use as a main speaker and gives a full sound with clear high and low frequencies. MONITOR is tuned for use as a floor monitor and helps reduce excess bass when the speaker is on the floor. The AUTO V/H POSITION function uses an internal accelerometer to recognize the position of the speaker. This allows the speaker to automatically select the correct setting for vertical or monitor use. The symmetrical enclosure makes the DXR12mk3 suitable for mirror mounting as a floor monitor. The dual tripod flange offers placement at 0° or with a downward tilt of -7°, allowing you to better direct the sound to the audience.

Rugged enclosure for transport and installation
The Yamaha DXR12mk3's enclosure is made of plastic and designed for regular transport, stage use and installation. The speaker has two side handles, a 35 mm tripod flange and multiple mounting points. For fixed mounting, an optional U-bracket is available. This allows the DXR12mk3 to be mounted vertically or horizontally to wall or ceiling.

Yamaha DXR12MKIII features and specifications:

• active 2-way speaker with bi-amping for live sound, mobile PA and installation
• newly developed 12-inch LF woofer and 1.75-inch HF compression driver
• 2000 watt class-D amplifier with 1000 watts RMS and 2000 watts peak power output
• frequency range from 50 Hz to 20 kHz
• maximum sound pressure level of 134 dB SPL
• DSP processing at 96 kHz for accurate signal processing with low latency
• Advanced FIR-X Tuning for better phase reproduction and reduced crossover distortion
• Drive Motion Calibration for tight and controlled low-end reproduction
• intelligent feedback suppression for handheld and fixed microphones
• FOH/MAIN and MONITOR modes with AUTO V/H POSITION
• Bluetooth audio streaming for wireless playback
• D-Remote app for iOS and Android for control, monitoring and system management
• LCD display with encoder for quick access to presets, PEQ, delay and routing
• store up to eight user presets
• two XLR/6.35 mm jack combo inputs with line and line/mic switching
• two XLR/6.35 mm jack combo outputs with Thru/Output and Thru/DSP Out
• adjustable input sensitivity up to +10 dB
• dispersion angle of 90° x 60
• monitor angle of 55
• 35 mm tripod lens with straight positioning or -7° tilt
• mounting points for eyebolts and optional U-bracket
• two side handles
• plastic housing in black finish
• dimensions of 36.6 x 60 x 35 cm
• weight of 17,4 kg
