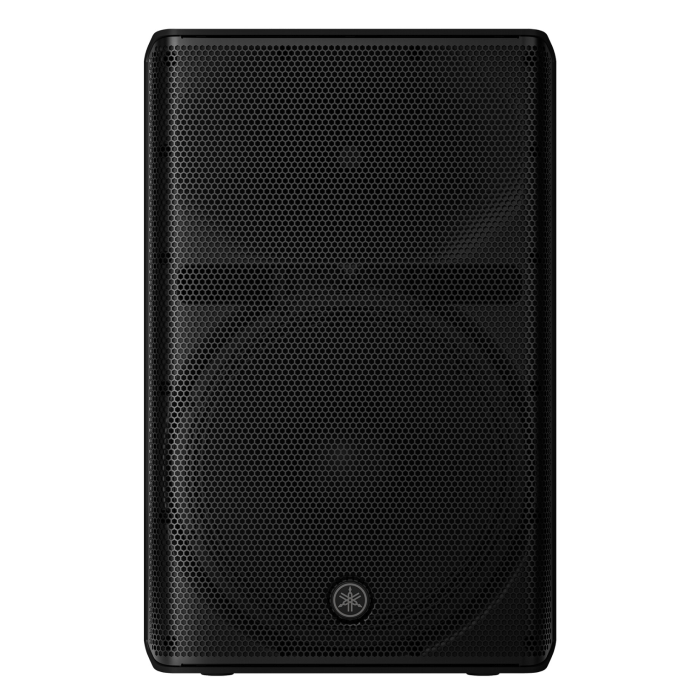

Yamaha DXR15 mk3

The Yamaha DXR15mk3 is an active 15-inch loudspeaker for users looking for lots of power, deep low end and easy control in one speaker. This third generation in the DXR series is designed for modern live sound, mobile PA systems, DJ applications, rental, fixed installations and stage use. With a newly developed 15-inch LF woofer, a 1.75-inch HF compression driver and a 2000-watt Class-D amplifier, the DXR15mk3 delivers powerful sound with a frequency range of 46 Hz to 20 kHz. Use the Yamaha DXR15mk3 as a front-of-house speaker, stage side fill or floor monitor. Because of its 15-inch woofer, this speaker has more bass response than the smaller models in the series. That makes the DXR15mk3 suitable for DJs, bands, presentations, corporate events, hospitality, schools, churches and rental companies looking for an active speaker with lots of output and full sound. The built-in DSP, FIR-X tuning and Drive Motion Calibration ensure tight reproduction with good control over the low end. Bluetooth audio streaming, dual inputs, an LCD screen and control via the D-Remote app make the speaker quick to deploy on location.

High-power active 15-inch speaker
The Yamaha DXR15mk3 is the largest fullrange speaker in the DXR mk3 series. The 15-inch woofer delivers a solid bass response and adds body to music, vocals and speech. The 1.75-inch HF compression driver ensures clear treble and good intelligibility. With a maximum sound pressure of 134 dB SPL, the DXR15mk3 has enough power for live performances, DJ sets, playback, vocal systems and speech amplification. The 2000-watt Class-D amplifier offers plenty of headroom, so peaks in music and vocals are well handled. This keeps the speaker sounding powerful and controlled, even when playing at higher volumes. The 90° x 60° dispersion angle provides wide coverage in halls, on stages and in mobile applications.

[[READMORE]]

DSP with FIR-X tuning and Drive Motion Calibration
The DXR15mk3 uses internal DSP processing at 96 kHz. This processing helps keep the sound clear, controlled and accurate. Yamaha's Advanced FIR-X Tuning uses linear phase FIR filters for the crossover network and correction EQ. This makes the LF and HF drivers more closely matched and reduces phase distortion around the crossover point. Drive Motion Calibration corrects the movement of the LF driver via a proprietary DSP algorithm. The 15-inch woofer tracks the input signal more accurately, keeping the low end tighter and more linear. This is especially important in DJ applications, live bands and situations where lots of low frequencies are needed without making the sound woolly.

Easy control via LCD screen and D-Remote app
On the back of the Yamaha DXR15mk3 is a clear LCD screen with encoder. This lets you quickly adjust settings such as presets, PEQ, delay and routing. You can store up to eight user presets, so you can quickly recall settings for fixed locations, bands or applications. Bluetooth lets you stream audio and control the speaker wirelessly with the D-Remote app for iOS and Android. The app gives access to level, delay, equalizer, crossover, feedback suppression, ducker, identification, panel lock and scenes, among others. You can also check limiter status, temperature and error messages. Up to ten devices can be paired, with group control for level and mute.

Suitable as a PA speaker, monitor and installation speaker
The Yamaha DXR15mk3 has DSP modes for different applications. FOH/MAIN is intended for use as a main speaker and gives a full sound with clear high and low frequencies. MONITOR is tuned for use as a floor monitor and helps reduce excess bass when the speaker is on the floor. The AUTO V/H POSITION function uses an internal accelerometer to recognize the position of the speaker. This allows the DXR15mk3 to automatically choose the correct setting for vertical or monitor use. The symmetrical enclosure makes the speaker suitable for mirror mounting as a floor monitor. The dual tripod flange offers placement at 0° or with a downward tilt of -7°, allowing you to better direct the sound to the audience.

Enclosure for transport and installation
The Yamaha DXR15mk3's enclosure is made of plastic and designed for regular transport, stage use and installation. The speaker has two side handles, a 35 mm tripod flange and multiple mounting points. For fixed mounting, an optional UB-DXR15A U-bracket is available. This allows the DXR15mk3 to be mounted vertically or horizontally to wall or ceiling.

Yamaha DXR15MKIII features and specifications:

• active 2-way speaker with bi-amping for live sound, mobile PA and installation
• newly developed 15-inch LF woofer and 1.75-inch HF compression driver
• 2000 watt class-D amplifier with 1000 watts RMS and 2000 watts peak power output
• frequency range from 46 Hz to 20 kHz
• maximum sound pressure level of 134 dB SPL
• DSP processing at 96 kHz for accurate signal processing with low latency
• Advanced FIR-X Tuning for improved phase reproduction and reduced crossover distortion
• Drive Motion Calibration for tight and controlled low-end reproduction
• intelligent feedback suppression for handheld and fixed microphones
• FOH/MAIN and MONITOR modes with AUTO V/H POSITION
• Bluetooth audio streaming for wireless playback
• D-Remote app for iOS and Android for control, monitoring and system management
• LCD display with encoder for quick access to presets, PEQ, delay and routing
• store up to eight user presets
• two XLR/6.35 mm jack combo inputs with line and line/mic switching
• two XLR/6.35 mm jack combo outputs with Thru/Output and Thru/DSP Out
• adjustable input sensitivity up to +10 dB
• dispersion angle of 90° x 60°
• monitor angle of 52
• 35 mm tripod lens with straight positioning or -7° tilt
• attachment points for eyebolts and optional U-bracket
• two side handles
• plastic housing in black finish
• dimensions of 44.7 x 69.9 x 38 cm
• weight of 21 kg
