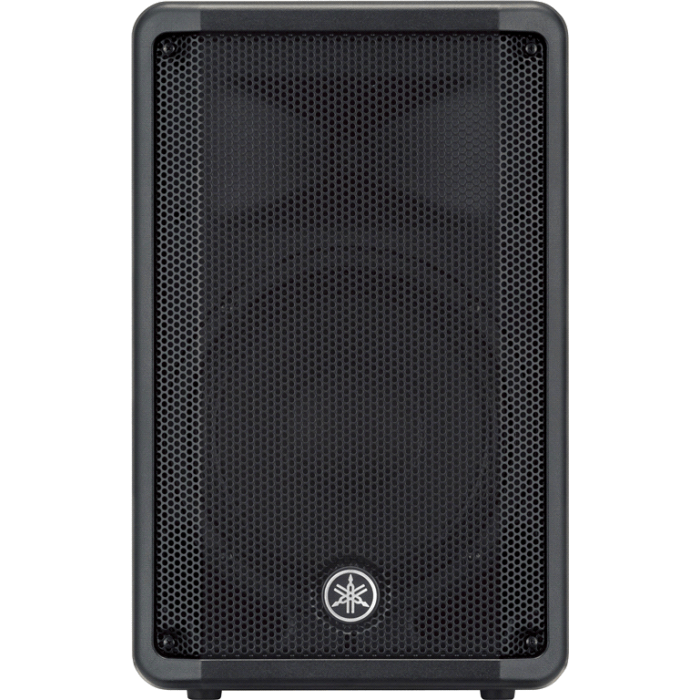

The Yamaha DBR10 is an active, compact speaker with a 10" LF driver and a powerful 1" compression HF driver. The DBR10 is the most compact model of the DBR series. The speaker is equipped with a powerful 700W Class D amplifier with internal DSP processing for superb sound quality. SPL = 129 dB (!)
Can also be used as a monitor due to the clever cabinet design (50° wedge angle). The use of light materials (cabinet is plastic) and a digital power amplifier make this speaker very light and therefore easy to carry. The 2-channel mixer on the back provides all the features one expects from a quality speaker: a microphone preamp, stereo input, and thru for connecting multiple speakers. In addition, the DBR10 is equipped with XLR and jack connectors. The speaker can be placed on a stand or attached to the ceiling with suspension brackets. Spread: 90° (H) x 60° (V).
- 10-inch two-way active bi-amp speaker technology
- can also be used as a floor monitor
- LF: Woofer size: 10 inches, voice coil size: 2 inches, ferrite magnet
- HF: tweeter size: 1-inch, voice coil size: 1-inch, ferrite magnet
- radiation: 90 x 60 degrees
- maximum SPL: 129 dB
- D-Contour processor: FOH/MAIN, MONITOR, OFF
- Weight: 10,5 kg.
- Dimensions: 308 (W) x 493 (H) x 289 (D) mm
