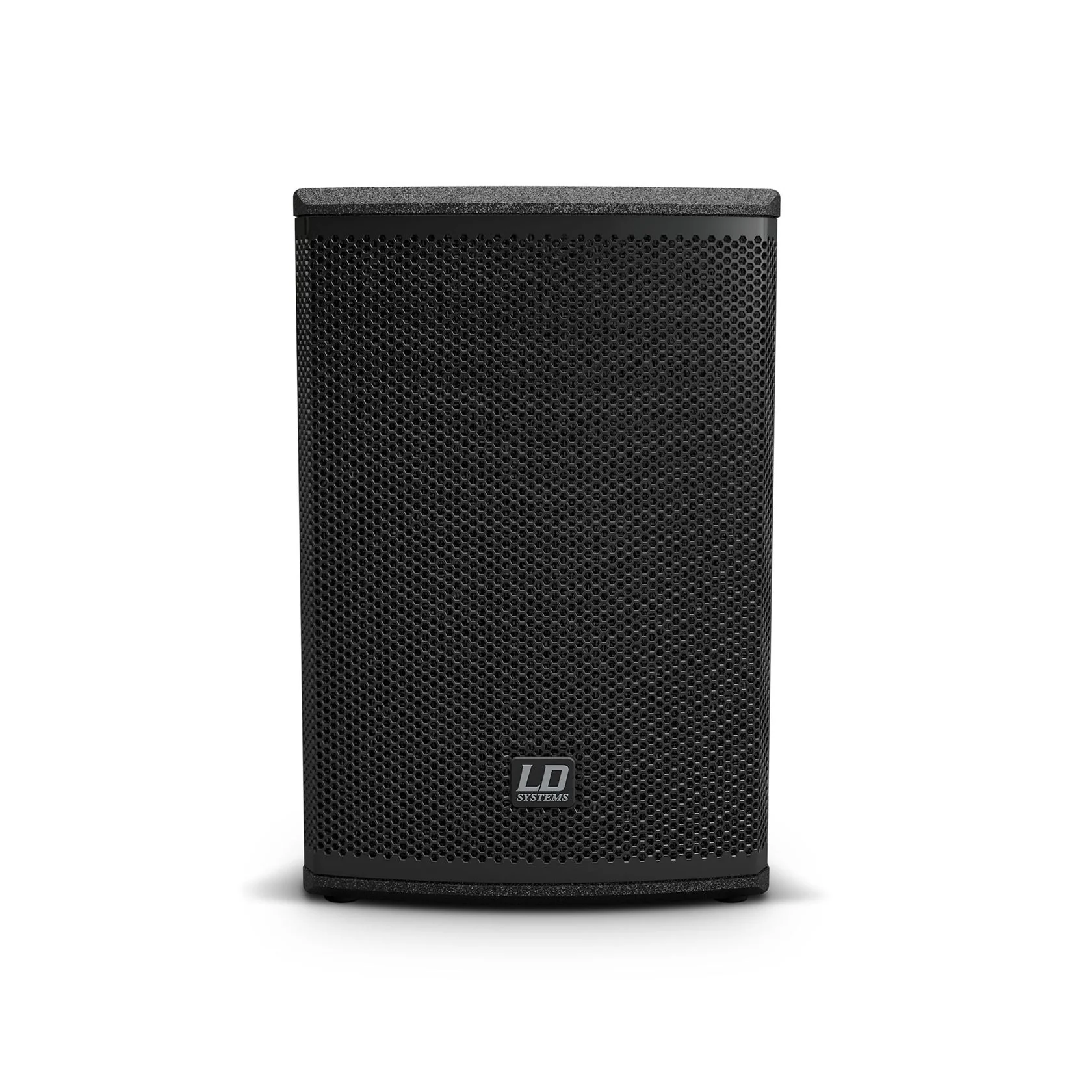

LD Systems Mix 6 A G3

The LD Systems MIX 6 A G3 is an active two-way speaker. The speaker has a RMS power of 2x 70 watts, a class-D amplifier and a built-in 4-channel mixer. So it is the perfect speaker for PA or monitor use. The speaker cabinet is made of sturdy MDF and has two 16mm pole-mounts for horizontal or vertical placement. The speaker features a 6.5-inch woofer (with bass reflex) and a 1-inch tweeter, with a frequency response of 80 Hz to 20 kHz.

The built-in mixer on the MIX 6 A G3 allows you to connect microphones, instruments or smartphone / tablet. On the mixer you will find three XLR/jack combo inputs, a 3.5mm line-in input and an RCA input. You can also choose from over sixteen effects, adjust high and low tones (EQ) on all channels and have access to phantom power.

One speaker not enough for you? Then you can expand this MIX 6A with a MIX 6 G3 passive speaker. This will allow you to achieve more dispersion of your sound, for example. Other features that you will find on this speaker are indication LEDs, a limiter (protection against overload and short circuits), thermal protection, monitor-output and a recording-output.

• LD Systems MIX 6 A G3 two-way active loudspeaker
• compact size
• 6.5-inch woofer

• 1-inch tweeter

• dispersion: 80° (H) x 70° (V)

• frequency response: 80 - 20,000 kHz

• class D amplifier, power RMS: 2x 70 W, peak power: 2x 280 W

• max. SPL: 122 dB

• 15V phantom power

• built-in mixer:
  - 4 channels
  - 3x XLR/jack combo inputs
  - FX send, EQ high, EQ low, Hi-Z switch (channel 1 only), volume control
  - line input: 2x RCA, 1x 3.5 mm-jack
  - Hi-Z input: channel 1 - 6.3 mm-jack
  - 1x monitor-out
  - 2x RCA monitor line-out
  - 2x RCA record-out
  - 16x 24-bit digital effects










The speaker is expandable with a MIX 6 G3 slave speaker via speaker out.

Dimensions: 22.1 x 21.4 x 32.3 cmWeight
: 7 kg.
