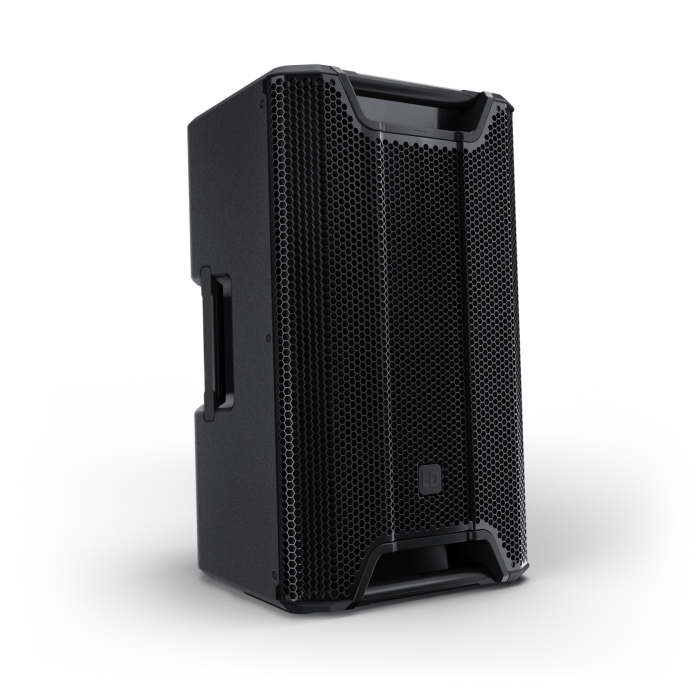

LD Systems ICOA® PRO 12 A

LD Systems' ICOA® PRO series can be used in a wide variety of applications. From standalone top to Cardioid setup with two subs, anything is possible. You can adjust the DSP via the app on your phone, where you will find different presets and an extensive EQ. You can also stream music directly from your phone.

Features:

• Powerful speaker with premium components for full-range, satellite, monitor and integrated applications
• Coaxial design with common motor for a true point source
• Large, rotatable, BEM-optimized CD horn with 800 Hz crossover for homogeneous 90° x 50° dispersion
• SysCore® DSP with FIR/IIR filters and crossover for distortion-free sound even at maximum volume
• Bluetooth® 5.1 and stereo streaming (TWS) with two ICOA PRO 12 A
• 4-band parametric EQ, 4 application presets (including low-latency monitor) and delay function
• 35 mm double-tilt tripod with 0° and 5° tilt angles
• Front LED indicator (identification, power supply and limiter)
• 133 dB max SPL and 1000 W RMS / 2000 W peak
• 12" woofer with 3" voice coil and 3" titanium HF driver
• Flow-optimized bass reflex ports for excellent full-range performance
• 2 x line/mic inputs with individual gain control, plus 1x mono mix output
• Free app for remote adjustments via smartphone and tablet (iOS and Android)
• EasyMount® compatible for tool-free mounting, as well as 6 x M10 lifting points
• Ultra-rugged ABS housing with integrated steel construction and a shock-resistant grille
• Comprehensive, optionally available accessories for outdoor use, installation and transportation

[READMORE]]

The ICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12ʺ speaker. Its professional full-range performance and rugged design make it exceptionally versatile and ideal for a wide range of applications, from club performances to live events and permanent installations.

The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point sourceëcreate. The common motor design used also provides improved coherence and temporal accuracy of the audio signal. The result is extremely natural and detailed sound.

The rotatable, BEM-optimized horn ensures accurate dispersion characteristics and at the same time provides horn loading for the woofer and tweeter. This double horn loading ensures that the sound waves are precisely directed deep into the midrange (approximately 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.

Thanks to power-optimized bass reflex ports, the ICOA PRO 12 A delivers a solid low to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max SPL, providing plenty of headroom when powerful, distortion-free sound is required.

The modern SysCore DSP with FIR/IIR filters and advanced limiters ensures distortion-free sound and safe operation with maximum clarity and punch - even at the limits.

Two line/mic input channels and an XLR mix tap allow connection and forwarding of various signal sources.

Four application presets (including a low-latency monitor), delay function and parametric 4-band EQs for the input and master channels allow precise settings.

Completing the whole experience is an intuitive menu that you can control via the color one-button control screen and the free ICOA PRO app.

All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be linked together. A stereo setup with up to two tops and four subwoofers, including direct music streaming via Bluetooth 5.1 and TWS, can be created in seconds and ready to use in the app. A status LED on the front of the subwoofer provides easy identification and indicates if the limiter is activated.

The robust ABS enclosure with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic handles ensure a firm grip when setting up and taking down.

When used with a tripod, a tilt angle of 0° or 5° can be selected. Vertically or horizontally, the rotating horn and numerous mounting options, such as 6 × M10 flying points and the EasyMount truss mount, allow the speaker to be used flexibly in a wide range of environments.

This makes the ICOA PRO 12 A the perfect choice as a versatile instrument for all event and installation applications.

Padded, water-repellent, custom-made protective covers with additional storage space are available as accessories for safe use and transportation.

Specifications:

General

• Type: Active
• Peak output power: 2,000 W
• RMS output power: 1,000 W
• Amp class: Class D
• Max. SPL peak: 127 dB
• Max. SPL peak (pink noise): 133 dB
• Max. SPL average: 118 dB
• Frequency response: 50 - 20,000 Hz
• Speaker system: 2-way coaxial system (Common Motor Design)
• Crossover frequency: 800 Hz
• Beam angle: 90° (hor.) / 50° (vert.)
• Monitor angle: 50°
• Input connector types: XLR combo socket
• Output connector types: XLR 3-pole female
• Protection features: Multiband Limiter, Short circuit, Overheating, Direct current
• Colour: Black

Bluetooth®

• Bluetooth® version: Bluetooth® 5.1
• Features: Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control
• Supported audio codecs: SBC, AAC

Inputs

• Number of mic/line inputs: 2
• Mic/Line-in connector type: XLR combo socket
• Number of line inputs: 2

Outputs

• Number of line outputs: 1
• Line outputs connector type: XLR combo socket

Signal processing

• AD/DA converter bit depth: 24 Bit
• AD/DA converter sampling rate: 48 kHz
• Min. Signal-to-noise ratio (SNR): 108 dB

Bass driver

• Size: 12 in
• Outer diameter: 312.3 mm
• Magnet: Ferrite
• Voice coil: 3 in

Tweeter

• Driver size: 3 in
• Outlet diameter: 36.68 mm
• Magnet: Ferrite
• Voice coil: 3 in

Mains operation

• Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
• Rated power: 650 W
• Power supply type: Switched-mode power supply (SMPS)
• Mains fuse: T6.3AH/250 V

Housing

• Design: Bass reflex
• Number of handles: 4
• Number of mounting points: 6
• Flange: 35 mm (0°/5°)
• Chassis material: ABS

Cooling

Environmental

• Ambient temperature: 0 - 40 °C
• Maximum air humidity: 80%

Dimensions & weight

• Width: 376 mm
• Height: 627.8 mm
• Depth: 393.6 mm
• Weight: 23.1 kg
