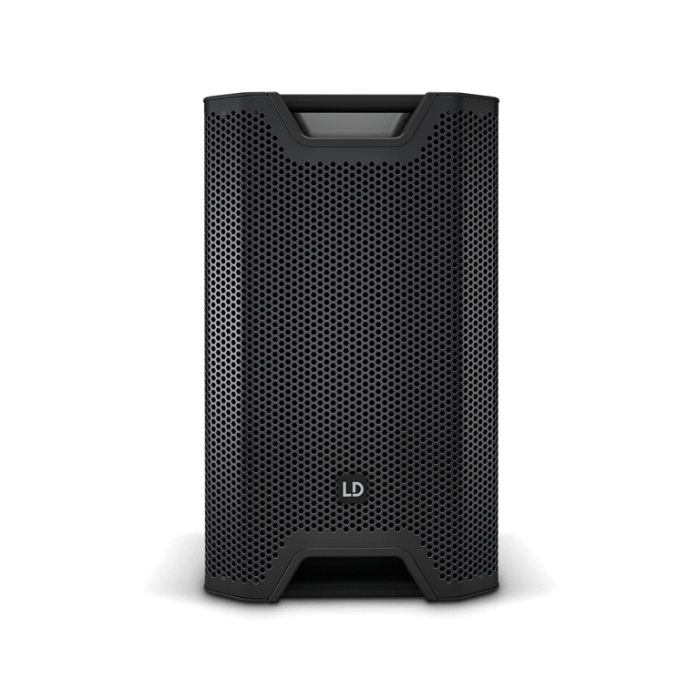

LD Systems ICOA 12A

This full-range speaker gives you a whole bucket of sound for a very reasonable price, even at low frequencies. The ICOA 12 A from LD Systems is a reasonable all-round fullrange speaker perfect for small venues, parties or as a monitor. Its coaxial design, rotating, BEM-optimized CD horn and DynX DSP presets make this active 12" speaker exceptionally flexible.

With its 300 W RMS and 128 dB, this speaker gives more than enough sound to use as a monitor or with audiences of up to 150 people (depending on the situation) and with a frequency range of 50 to 20000 Hz, with just the Icoa 12 A you already have quite a bit of low end. If you really want to be able to blow the sub frequencies as well, or give the Icoa 12 A more headroom, we recommend adding a subwoofer.

LD Systems' DynX DSP technology gives you the ability to further customize the sound at the speaker. 4 presets, a 3-band EQ and a delay function ensure optimal adjustment of the sound to the room conditions. The 2 line/mic input channels with individual gain controls, plus mono mix output, make it possible to connect a variety of signal sources.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also ideally suited as a floor monitor. Placed vertically, the dual 36 mm tilt stand mount offers the choice of a 0° or 5° tilt angle to optimally adapt the system to the local acoustic environment.

Specifications:

• 12" LF and 1" HF driver
• DynX DSP with 4 presets, 3-band EQ and delay
• Class D amplifier
• Power: 300 watts RMS, 1200 watts peak
• Maximum SPL: 126 dB
• Frequency response: 50 - 20000 Hz
• Beam angle: 90° x 50°

Connections:

• 2x XLR / jack combo mic / line inputs
• AUX input via 3.5 mm2 stereo mini jack
• XLR mono mix output
• monitor tilt: 55°
• 2x 36 mm tripod flange with adjustable angle (0° / 5°)
• 4 handles
• power consumption: 150 W
• dimensions (W x H x D): 375 x 635 x 396 mm
• weight: 19.95 kg
