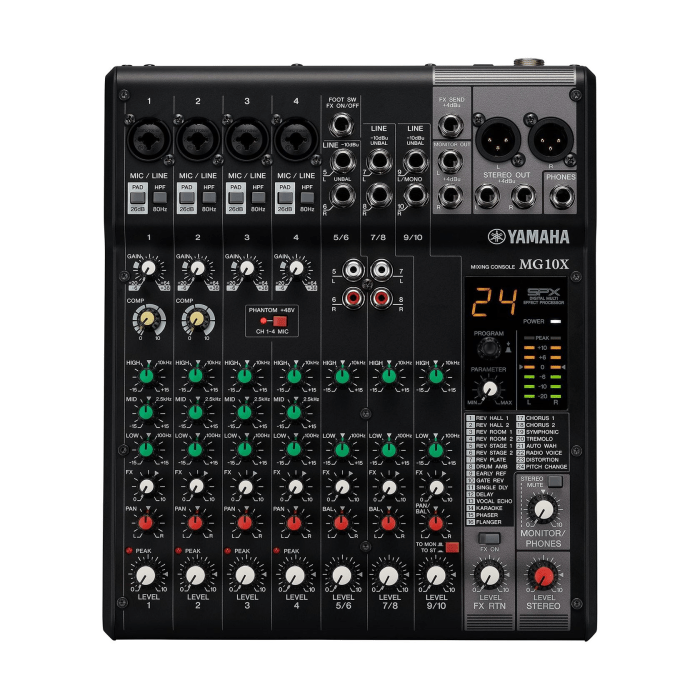

Yamaha MG10X

The Yamaha MGX10-CV 10-input stereo mixer features 24 integrated SPX effects and 2 channels of 1-button compression in a rugged portable chassis. The four mic/line inputs feature Yamaha D-Pre Class A preamps, a 3-band EQ, pan control and a high-pass filter. These inputs also have switchable phantom power allowing the use of condenser or dynamic microphones. If you need to record loud sources such as guitar amps, simply enable the 26dB pad to eliminate the possibility of input overload..

Channels 1 and 2 feature integrated 1-button compression that streamlines tuning and delivers consistent professional results. 3 stereo 1/4" and 2 RCA line inputs provide additional flexibility for connecting keyboards, samplers, playback devices and other equipment.

Once the audio is recorded, 24 SPX effects are waiting for you to enhance and personalize your production. From reverb and delay to distortion and pitch change, you can explore and create it all. The channels have dedicated FX sends with a master return, so you have a high degree of control over the effect in the mix. And you can polish off that vintage space echo, because the MG10X-CV also has a separate external FX send.

The output features stereo XLR and TRS jacks for connection to a PA or powered monitors. There is an additional pair of TRS outputs that you can use to pass the stereo mix to recorders, amplifiers, and so on. A headphone output with dedicated level control makes it easy to diagnose problems in noisy environments or check settings and adjustments.

• 10-channel mixer

• rugged, powder-coated steel chassis for superior durability

• discrete class-A "D-PRE" mic preamps with reverse Darlington circuitry

• built-in SPX digital effects with 24 programs

• switchable +48V phantom power

• max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)

• 1 stereo bus

• 1 AUX (incl. FX)

• 2 channels with 1-button compression

• PAD switch on mono inputs

• XLR balanced outputs

• color coded controls for easy operation

Dimensions (W×H×D): 24.4 x 7.1 x 29.4 cm
Weight: 2.1 kg.
