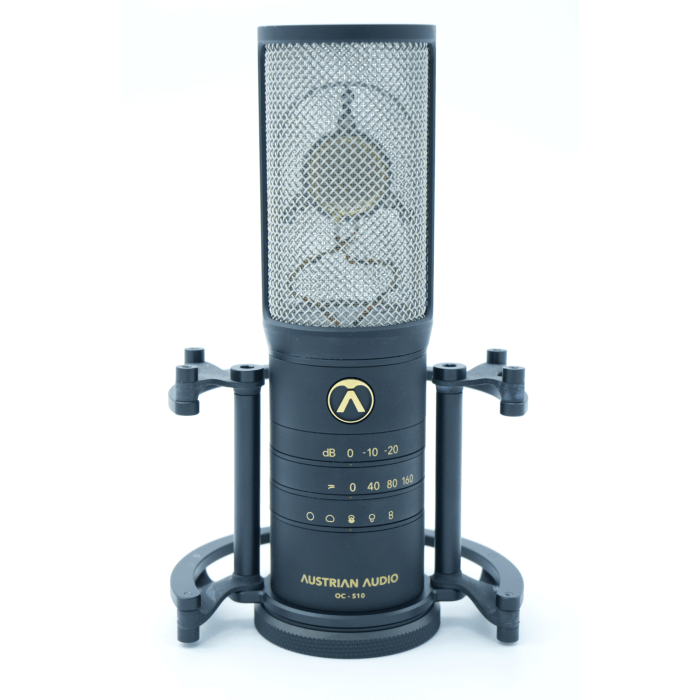

Austrian Audio OC-S10

Austrian Audio has a long and rich history of designing and building some of the most iconic microphones out in the industry, and the OC-S10 is a fantastic addition to this history.

Of course, the OC-S10 incorporates Austrian Audio's renowned CKR12 Capsule, but this time with a completely redesigned, all-analog, signal path for unprecedented clarity and extremely low noise floor. The CKR12 capsule is handmade in Vienna and only the best are chosen for use. This makes Austrian Audio label this mic as a "reference mic" perfect for vocals and solo instruments.

The OC-S10 again has the very fat feature that both diaphragms can be recorded separately. Where with the OC818 we have a mini XLR output on the back, the OC-S10 comes with two full sized XLR connectors to record and edit the full audio image in post with the greatest of ease. Because of course, we can use the Polar Designer and Stereo Creator plugins in post to edit these two signals.

Features:

• Directional characteristic: omni, wide cardioid, cardioid, hypercardioid, eight-shaped
• Frequency range: 20 Hz - 22 kHz
• Sensitivity: 14 mV/Pa
• Equivalent noise level: 8 dB SPL (A)
• Max SPL: 147 (157) dB SPL
• Low-cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (2nd order)
• Switchable pad: -10 dB, -20 dB
• Impedance: 108 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.5 mA)
• Connectors: 2x XLR 3-pin

[[READMORE]]

Unprecedented sound

The OC-S10 is a reference large-diaphragm condenser microphone, carefully designed for recording lead vocals and solo instruments with unparalleled precision. At the heart of the OC-S10 is Austrian Audio's specially selected CKR12 capsule, a free-floating design that uses an Open Acoustics technology to capture sound with minimal obstructions. OCS10 uses a brand new electronic design for a remarkably low noise floor. which captures all the nuances of the capsule in a modern production environment.

With five selectable polar patterns, three low-cut filter options and switchable -10dB and -20dB pads, the OC-S10 offers exceptional versatility for any recording scenario. Combined with dual output (both standard XLR), it offers maximum post-production flexibility, allowing you to discover and create your perfect sound. discover and create sound.

The included shock mount features a ball joint for precise and delicate positioning, making installation effortless. In addition, the magnetically attached metal mesh filter (not shown) effectively eliminates unwanted plosive sounds while maintaining the full richness of the sound.

Specifications:

• Directional characteristic: omni, wide cardioid, cardioid, hypercardioid, eight-shaped
• Frequency range: 20 Hz - 22 kHz
• Sensitivity: 14 mV/Pa
• Equivalent noise level: 8 dB SPL (A)
• Max SPL: 147 (157) dB SPL
• Low-cut filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (2nd order)
• Switchable pad: -10 dB, -20 dB
• Impedance: 108 Ω (symmetrical)
• Load impedance: > 1 kΩ
• Supply voltage: 48 V (< 2.5 mA)
• Dimensions: 63 x 63 x 205
• Weight: 690 g

Included:

• 1x OC-S10 microphone
• 1x OCS10 microphone shock mount
• 1x OCP10 pop filter
• 1x Wooden microphone box
• 1x Case
