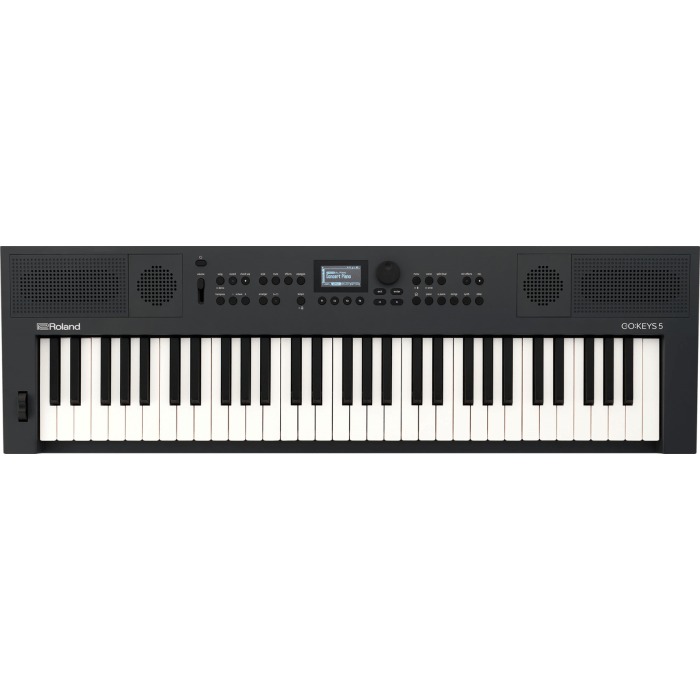

Roland GO:KEYS 5 Graphite

Creativity Begins Here

Learning music doesn't have to be difficult. The GO:KEYS 5 invites every exploration, encouraging your inner creative voice to emerge. The user-friendly, interactive interface encourages discovery and spontaneous musical moments, even if you've never played an instrument before.

Sound Motivation

As many top composers will tell you, playing one note with an inspiring sound is often enough to launch an entire idea. The GO:KEYS 5 contains more than 1,000 sounds from Roland's historic library, which has been motivating top artists in every genre for more than 50 years. Travel through a universe of possibilities with the 61-note keyboard: ranging from acoustic pianos and orchestral instruments to modern synthesizers, guitars, drums and much more.

Melodic Magic

Once you've found a sound that energizes you, experiment by creating melodies and arpeggios against an automatic musical backing. The GO:KEYS 5 is packed with ready-made chord progressions in a variety of styles, all with the immersive sound of a finished studio production like on a record. It's also possible to create your own chord sequences. And you can easily find the chord sequences of your favorite songs online or with dedicated apps.

Mix & Match

While a chord sequence is running, you can discover your own performance style by remixing sounds. Create change with four variations. Turn parts on and off, including the drums, bass and background chords. Swap instruments for a different vibe. And create dynamic energy by editing the entire sound with filtering, lo-fi tones, beat slicing and other striking performance effects.

Lead the Band

After you've mastered chord progressions, you can go one step further, and lead a band of virtual musicians. The GO:KEYS 5 offers a wide selection of dynamic accompaniments, controlled with one or two left hand fingers. Jam melodies and solos with your right hand while the band follows and supports every move. Then weave more sophisticated textures with full left-hand chords as your technique grows.

Use Your Voice

The GO:KEYS 5 also has a microphone input and a large selection of effects to enrich your voice. Sing along with your compositions, complete with studio-style reverb for a polished sound. Magically create real-time harmonies that automatically follow your chords and accompaniment. Or transform your voice with robotic tones that mimic the electronic sounds heard on current pop hits.

Record and Share

At any time, you can instantly record what you're doing with the GO:KEYS 5, and listen to it again. Analyze and refine your ideas. Show off your progress to family and friends. Or share your skills with the world via social media.

Compact Musical Compound

Thanks to its portable, all-in-one design, you can move the GO:KEYS 5 and enjoy music anywhere in your living space. The built-in stereo sound system and passive radiator deliver big sound and powerful bass response, while AA battery support makes setup quick and easy. And if you want to play privately, plug in headphones or earbuds to enjoy the GO:KEYS 5 without disturbing others.

Stream Songs and Create with Music Software

Listening to your favorite music is a great way to get inspired for your next creative session. Play songs from your music library via Bluetooth, USB memory or the analog audio inputs and jam along. Then use the center cancel function to remove the vocals and sing by yourself. The GO:KEYS 5 also supports Bluetooth MIDI and audio/MIDI via USB, opening the door to even more creative possibilities with music apps on a computer or mobile device.

Expand your repertoire on Roland Cloud

Want even more inspiration? On Roland Cloud, there's an ever-growing selection of premium sounds and exciting new arrangement styles to explore. GO:KEYS 5 also supports Roland Cloud Connect: an optional wireless adapter that lets you browse, listen and download Roland Cloud content from a smartphone or tablet.

• -Sound generator

• ZEN-Core

  -Tones

• 1.154 tones

• Sound packs and Wave Expansion from Roland Cloud are available

  -Effects

• Tone MFX: 2 systems, 93 types

• Total MFX: 1 system, 15 types

• Reverb: 1 system, 4 types

  -Keyboard

• 61 keys (box-shaped keys with velocity)

  -Touch sensitivity

• Keystroke: 9 types, fixed keystroke

  -Speaker

• Speaker: 5 cm (2 inches) x 2 (with speaker cabinet)

• Passive radiator x 2

  Bluetooth version 5.0

• Profile: A2DP (Audio), GATT (MIDI via Bluetooth Low Energy)

• CODEC: SBC (supports SCMS-T content protection)

  -Style

• Preset: 203 styles

• Z-Style packages from Roland Cloud are available

  -Functions

• Start, Stop, Intro, End, Sync Start, Variation1, Variation2, Variation3, Variation4, Part Mute

  -Chord Sequencer

• Preset chord pattern: 304 types

  -User Scene

• Scene: 256
  *Import/export possible

  -Playable software

• Own MIDI format

• Audio file (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64--320 kbps, USB stick required)

  -Recordable software

• Proprietary MIDI format (99 songs, approx. 70,000 note memory per song)

• Audio file (WAV: 44.1 kHz, 16-bit linear format, USB stick required)

  -Main tuning

• 415.3--466.2 Hz (adjustable in 0.1 Hz steps)

  -Microphone effects

• Auto Harmony (9 types)

• Voice Transformer (octave: -1--+1, formant: -12--+12 semitones)

• Compressor (Type: soft, normal, harsh)

• Noise Suppressor (Threshold: -96--0 dB)

  Useful Functions

• Metronome (Adjustable tempo/beat/pattern/volume/tone)

• Transpose (Keyboard/Style: in semitones)

• Octave shift

• Double

• Split (split point adjustable)

• Center Cancel

• Arpeggiator

• Auto Off

  -Display

• Graphical LCD 128 x 64 points

  -Operation

• Master volume control

• Pitch Bend wheel

  -Connections

• DC In jack

• Hold pedal jack (Can be continuously detected when optional pedal is connected)

• Control pedal jack (Can be continuously detected when optional pedal is connected)

• Stereo input: Stereo miniature telephone jack

• Outputs (L/Mono, R) jacks: 1/4-inch telephone jack

• Microphone input: 1/4-inch phone jack

• USB COMPUTER port: USB Type-C (R) (Class compliant for audio and MIDI)

• USB MEMORY port: USB A (mass storage)

• EXT DEVICE port: USB A (Roland Cloud Connect WC-1)

• Telephone jack: Stereo miniature telephone jack

  -Power supply

• AC adapter or Alkaline battery (AA, LR6) / Rechargeable Ni-MH battery (AA, HR6) x 8
  *Carbon-zinc batteries cannot be used.

  -Power consumption

• 9 W (when using the supplied AC adapter)

  -Battery life for continuous use

• Rechargeable Ni-MH batteries (AA, HR6): Approximately 6 hours (when using 1,900 mAh capacity batteries).

• Alkaline batteries (AA, LR6): Approximately 5 hours
  *This figure depends on actual usage conditions.

  Dimensions

• Detached music stand:

• 950 (W) x 286 (D) x 87 (H) mm

• 37-7/16 (W) x 11-5/16 (D) x 3-7/16 (H) inch


• GO:KEYS 5 with music support:

• 950 (W) x 395 (D) x 245 (H) mm

• 37-7/16 (W) x 15-9/16 (D) x 9-11/16 (H) inch

  Weight

• 4.9 kg, 10 lbs 13 oz

• 5.5 kg (GO:KEYS 5 with music support)

  Accessories

• Quick Start

• Folder "SAFE USE OF THE DEVICE".

• AC adapter

• Power cord
