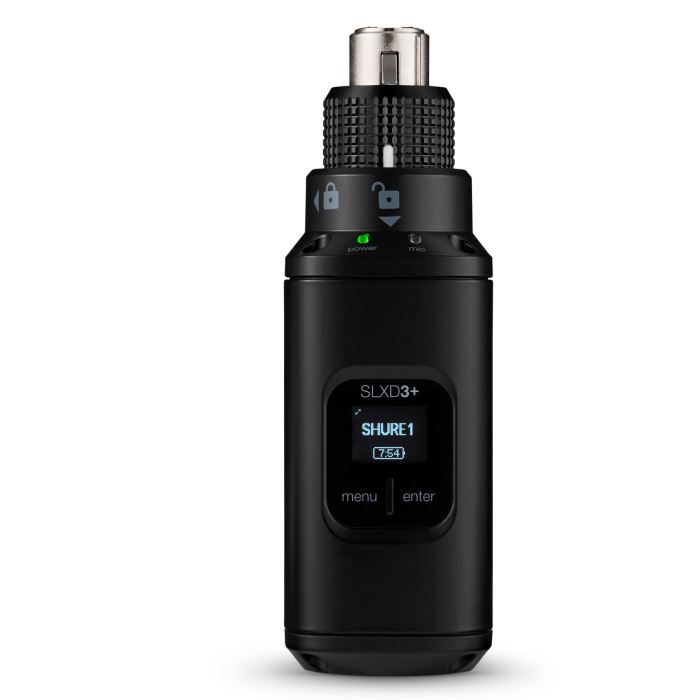

Shure SLXD3+=-G65
digitale draadloze plug-on zender (470 - 606 MHz)
makes any XLR microphone wireless within SLX-D+ systems
frequency band G65: 470 - 606 MHz
24-bit digital audio with stable RF performance
136 MHz tuning range with automatic frequency switching
switchable 12 V / 48 V phantom power for condenser microphones
patented locking ring for secure XLR connection
Want to know when this item is back in stock? Send us your email address and we'll notify you as soon as it's available!
Our product experts are happy to help you!
The Shure SLXD3+=-G65 is an SLX-D+ series digital plug-on transmitter designed to make any XLR microphone or line source wireless within an SLX-D+ system. Whether a dynamic microphone, condenser microphone or other XLR source, the SLXD3+ converts the signal to transparent 24-bit digital audio with a stable UHF connection to SLX-D+ receivers. This makes this transmitter well suited for ENG, film, broadcast, interviews and mobile audio setups.
The SLXD3+ features a patented locking ring that ensures a secure, backlash-free connection to the microphone. With its wide tuning range of 136 MHz and ShowLink® Ease control link, the transmitter automatically stays in sync with the receiver. Interference is actively managed, and in the event of interference, the system can automatically switch to a free frequency. Monitoring and configuration are via Wireless Workbench and the mobile app.
Shure SLXD3+=-G65 features:
- digital plug-on transmitter for SLX-D+ wireless systems
- makes any XLR microphone or line source wireless
- frequency band G65: 470 - 606 MHz
- 24-bit/48 kHz audio conversion with >118 dB dynamic range
- 136 MHz tuning range for flexible frequency management
- ShowLink® Ease for remote transmitter settings and automatic frequency switching
- patented locking ring for stable, backlash-free XLR connection
- switchable phantom power: 12 V or 48 V
- high pass filter for control of low frequency handling and impact noise
- firmware updates via Bluetooth
- AES-256 encryption for secure wireless audio
- power via AA batteries, optional SB903 lithium-ion battery or USB-C
- rugged housing
[[READMORE]]
What's new in SLX-D+ (vs. SLX-D)?
- 136 MHz wide tuning range for deployment in multiple regions, supporting up to 14 simultaneous systems within 8 MHz TV bands
- ShowLink® Ease allows remote adjustment of transmitter settings through the receiver, including:
- automatically switching to a free frequency in the event of interference
- adjusting transmitter gain
- locking and unlocking of transmitter controls
- wireless updating of transmitter firmware
- full monitoring via Wireless Workbench and WWB Mobile app (Bluetooth and Wi-Fi)
- AES-256 encryption standard for secure wireless transmission
What hasn't changed
- same transparent 24-bit digital audio with >118 dB dynamic range
- stable RF performance and reliable Shure signal quality
- compatibility with existing SLX-D and SLX-D+ receivers
- support for AA batteries and Shure SB903 lithium-ion batteries
In the box:
- Shure SLXD3+ plug-on transmitter
- protective leather case with integrated belt clip
- zippered carrying case
- 2x AA alkaline battery
Shure SLXD3+=-G65 specifications:
- housing: aluminum, zinc alloy, PC/ABS
- power: battery, 2x AA or optional SB903 lithium-ion battery
- external power: USB-C
- dimensions (diameter x length): 41 x 126 mm
- weight: 200 gr
- audio input connector: XLR
- max input level (1 kHz @ 1% THD): pad -12 dB: 20.5 dBV / 0 dB: 8.5 dBV / boost +12 dB: -3.5 dBV
- phantom power: 12 V (max. 15 mA) or 48 V (max. 7 mA)
- RF output, antenna type: dipole
- transmit power: 10 mW
| Brand | Shure |
|---|---|
| Ean Code | 42406905411 |
| Article number | 75746 |
| Size (product) | 4,2 cm x 39,3 cm x 15,2 cm |
| Size (packaging) | 27,81 cm x 7,2 cm x 15 cm |
