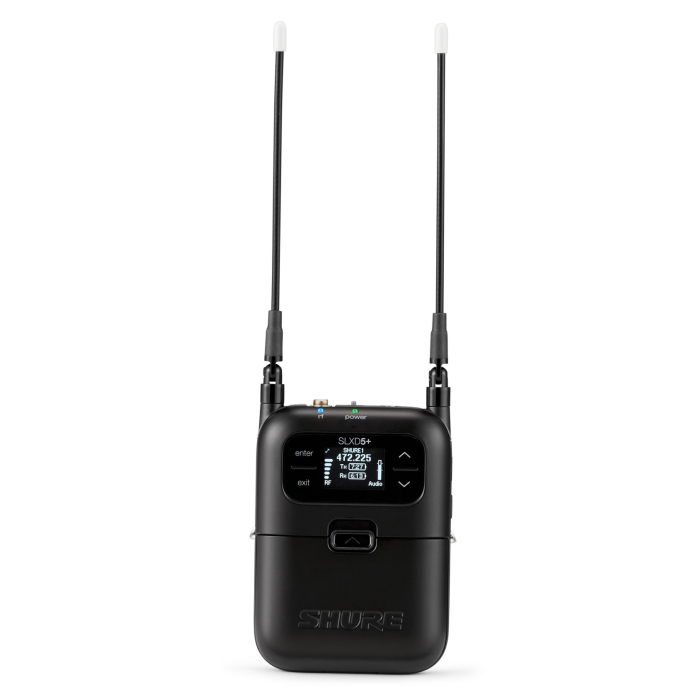

Shure SLXD5+=-G65

The Shure SLXD5+=-G65 is a portable digital single-channel receiver that combines the performance of an SLX-D+ receiver with a compact, mobile design. Designed for use on camera or in audio bags, this receiver is well suited for ENG, EFP, film, broadcast and location recording. You get the same 24-bit audio quality and stable RF performance as rack receivers, but in a lightweight aluminum housing.

With its wide tuning range of 136 MHz and integrated ShowLink® Ease control link, the SLXD5+ automatically stays in sync with SLX-D+ transmitters. Interference is actively monitored, and in the event of interference, the system itself can deploy a new, clean frequency.

Multi-Mic Mode lets you manage and monitor multiple wireless sources from a single receiver, ideal for compact mobile setups. So it allows you to scan, sync and monitor multiple SLX-D+ transmitters from one SLXD5+ receiver, always using one active audio source at a time. Via the front-panel controls or the WWB Mobile app, you then easily switch between transmitters.

[[READMORE]]

Shure SLXD5+=-G65 features:

• digital single-channel portable receiver for SLX-D+ transmitters
• frequency band G65: 470 - 606 MHz
• 24-bit/48 kHz audio conversion with >118 dB dynamic range
• 136 MHz tuning range for flexible frequency management
• ShowLink® Ease control link for automatic synchronization and remote transmitter settings
• Multi-Mic Mode for management of multiple wireless sources
• dual 3.5 mm outputs with headphone monitor and switchable mic/line level
• AES-256 encryption for secure transmission
• Shure Digital Feedback Reduction against feedback
• power via AA batteries, SB903 lithium-ion battery or USB-C
• suitable for cold shoe mounting and audio bag use

What's new in SLX-D+ (vs. SLX-D)?

• 136 MHz wide tuning range for greater deployment by region, supporting up to 14 simultaneous systems within 8 MHz TV bands
• ShowLink® Ease: adjust transmitter parameters remotely from the receiver, including:
• change transmitter frequency as soon as a free frequency is found
• adjust transmitter gain
• lock/unlock transmitter controls
• easily update transmitter firmware
• automatically find and relay a new frequency to receiver and transmitter in case of interference
• Shure Digital Feedback Reduction automatically reduces unwanted feedback
• AES-256 encryption standard on every SLX-D+ component for secure transmission

What hasn't changed?

• same 24-bit digital audio, stable RF performance and Shure reliability
• monitoring and control via Wireless Workbench® and the WWB Mobile app (iOS/Android)
• choice of rack-ready and portable configurations and microphone options
• optional Shure lithium-ion batteries and chargers with real-time runtime information
• backwards compatible: SLX-D+ components also work with existing SLX-D components

In the box:

• Shure SLXD5+ portable wireless receiver
• zippered carrying case
• WA311 cold shoe mount adapter
• 2x AA alkaline battery
• 18" (45.72 cm) lockable 3.5 mm2 mini-jack to XLR cable
• 16-inch (40.64 cm) lockable 3.5mm2 mini-jack audio extension cable

Shure SLXD5+=-G65 features specifications:

• housing: aluminum
• battery power: 2x AA or optional SB903 lithium-ion battery pack
• external power supply: SBC-DC-903 battery eliminator or 5 VDC via USB-C
• RF input, spurious rejection: >75 dB (typical), impedance: 50 ohms
• antenna type: 1/4-wave whip
• audio output: frequency range: 20 Hz - 20 kHz (+1 / -3 dB)
• connectors: 2x 3.5 mm2 mini-jack
• configuration balanced mono: tip = audio +, ring = audio -, sleeve = ground
• configuration dual mono: tip = left, ring = right, sleeve = ground
• dimensions (h x w x d): 107 x 68 x 25,3 mm
• weight: 182 gr.
