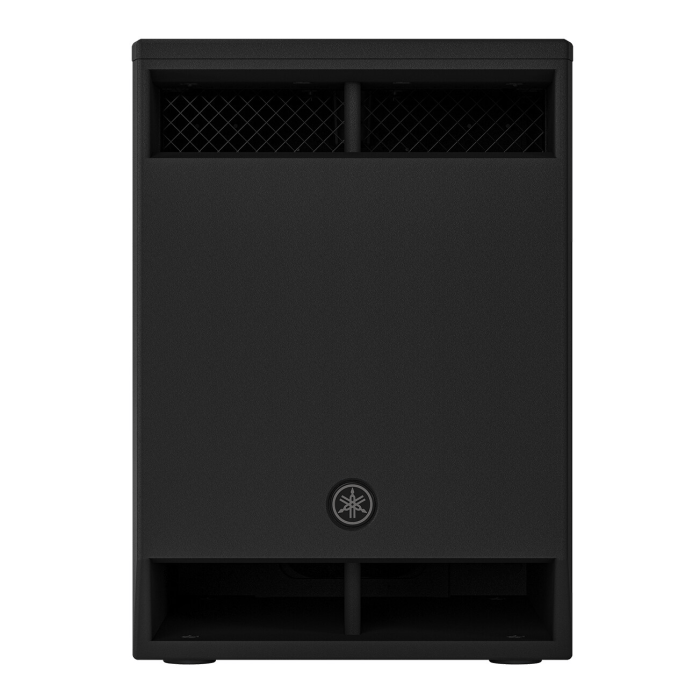

Yamaha DXS12mk3

The Yamaha DXS12mk3 is an active subwoofer for those seeking powerful low end without complicated controls. This third generation in the DXS series is designed for modern live applications, mobile PA systems and fixed installations. The subwoofer combines a new 12-inch woofer, a larger voice coil and an optimized bandpass and port design with a 2000-watt Class-D amplifier. The result is a tight and powerful low end with a frequency range of 38 Hz to 140 Hz.

Thanks to the color LCD screen, you quickly set the most important functions. Think of crossover, delay and other settings that allow you to properly tune the subwoofer to the room and your speaker system. Via Bluetooth and the Yamaha D-Remote app, you can also control the DXS12mk3 from your smartphone or tablet. So you work faster during set-up, sound check and on-site adjustments.

Reliable design with powerful low end
The Yamaha DXS12mk3 focuses on high output, control and consistent sound. The new long-excursion driver with 12-inch woofer and larger voice coil provides solid bass reproduction with plenty of projection. The 2000 watt Class-D amplifier delivers the headroom you need for live sound, DJ sets, band reinforcement and presentations where the low has to be clear. The enclosure is made of plywood and designed for intensive use. This makes the subwoofer suitable for regular transport, rentals, stages and installations. The optimized bandpass and port design helps keep the bass response powerful and controlled, even when playing at higher volumes.

[[READMORE]]

Easy operation with modern features
The DXS12mk3 is made for quick operation on the fly. The color LCD gives instant access to important settings without having to work through unnecessarily complex menus. This makes it easy to adapt the subwoofer to different rooms, stages or configurations. Bluetooth and the Yamaha D-Remote app let you manage settings remotely. This is handy when the subwoofer is already in place or when you want to make quick adjustments during sound check. The DXS12mk3 thus fits well into modern PA setups where speed, control and reliability are important.

Yamaha DXS12mk3 features:

• active subwoofer for live sound, mobile PA and fixed installations
• 12-inch long-excursion woofer with larger voice coil for powerful low-end reproduction
• 2000 watt class-D amplifier with lots of headroom
• frequency range of 38 Hz to 140 Hz for deep and controlled bass
• maximum SPL of 132 dB for solid output
• optimized bandpass and port design for improved projection and bass response
• color LCD screen for quick and easy operation
• Bluetooth and support for the Yamaha D-Remote app
• 2 XLR/jack combo inputs and 2 XLR outputs
• plywood housing for stage use and transport
• suitable for tripod mounting with intermediate pole

Yamaha DXS12mk3 specifications:

• type: active subwoofer
• woofer: 12 inch
• amplifier power: 2000 watt
• inputs: 2x XLR/jack combo
• outputs: 2x XLR
• frequency range: 38 Hz - 140 Hz
• maximum SPL: 132 dB
• mounting: intermediate pole
• power supply: standard IEC power cable
• housing: plywood
• dimensions: 40 x 56.7 x 57 cm
• weight: 33 kg
• manufacturer article number: DXS12MKIII
