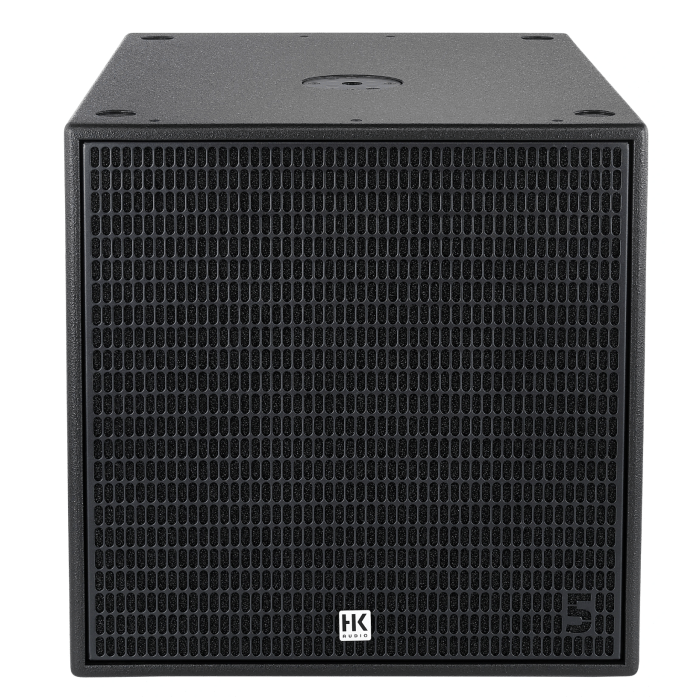

HK Audio Linear 5 MKII 118 Sub A

The HK Audio Linear 5 MKII 118 Sub A is an active subwoofer featuring deep, low bass sound with a very powerful punch. It is a perfect complement to other speakers in the Linear 5 series. This sub has an output of 1000W RMS (2000W peak) and an 18-inch speaker.

Complete your setup!
Already have an active speaker from the HK Linear 5 series? Then this L5 MKII Sub A 118 A is a perfect addition to it. This sub combines great with e.g. the Linear 5 112 FA or 115 FA top speaker.

HK Audio Linear 5 MKII 118 Sub A gives you power
With an 18-inch woofer and an amplifier with an RMS power of up to 1000W, this Linear 5 MKII 118 Sub A provides a maximum sound pressure level of up to 130 dB. A real powerhouse. It has a strong enclosure made of birch plywood. This material has excellent acoustic properties. The HK Audio Linear 5 MKII 118 Sub A is finished with black acrylic enamel and has a grille of 2 mm thick metal with black acoustic foam behind it.

The top of the sub has an M20 thread for inserting an intermediate pole for a top cabinet.

Cardioid setup
Sometimes it's a bit tricky to quickly create a cardioid setup with subwoofers. But with this HK Linear 5 MKII 118 Sub A, that's a thing of the past. That's because this subwoofer has two presets for cardioid applications. With just the push of a button, you switch these on the back of the 118 Sub A. With a cardioid setup, the bass pressure level at the rear of the speaker is reduced by up to 34 dB. This reduces sound pressure on stage. And as a bonus, the level increases by just under 2 dB at the front.

HK Audio Linear 5 MKII 118 Sub A features:

• bass-reflex subwoofer that provides powerful bass at a high sound pressure level
• 18-inch woofer + 4-inch voice coil
• with advanced DSP that enables precise tuning
• high max. sound pressure level, free of distortion
• sound control for cardioid setup easily achieved with presets
• four presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
• DSP Control software available so that things like volume, EQ, limiting, delay and polarity can be set remotely (even if speakers are not yet connected)
• DSP Out enables integration of a speaker without a network connection
• sturdy birch plywood housing with superb acoustic properties
• connections: 2x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x Ethernet Thru, 2x XLR Thru and 1x XLR DSP Out
• frequency range: 38 - 120 Hz (+/- 10 dB)
• dimensions: 550 x 560 x 685 mm (WxHxD)
• weight: 41,6 kg
